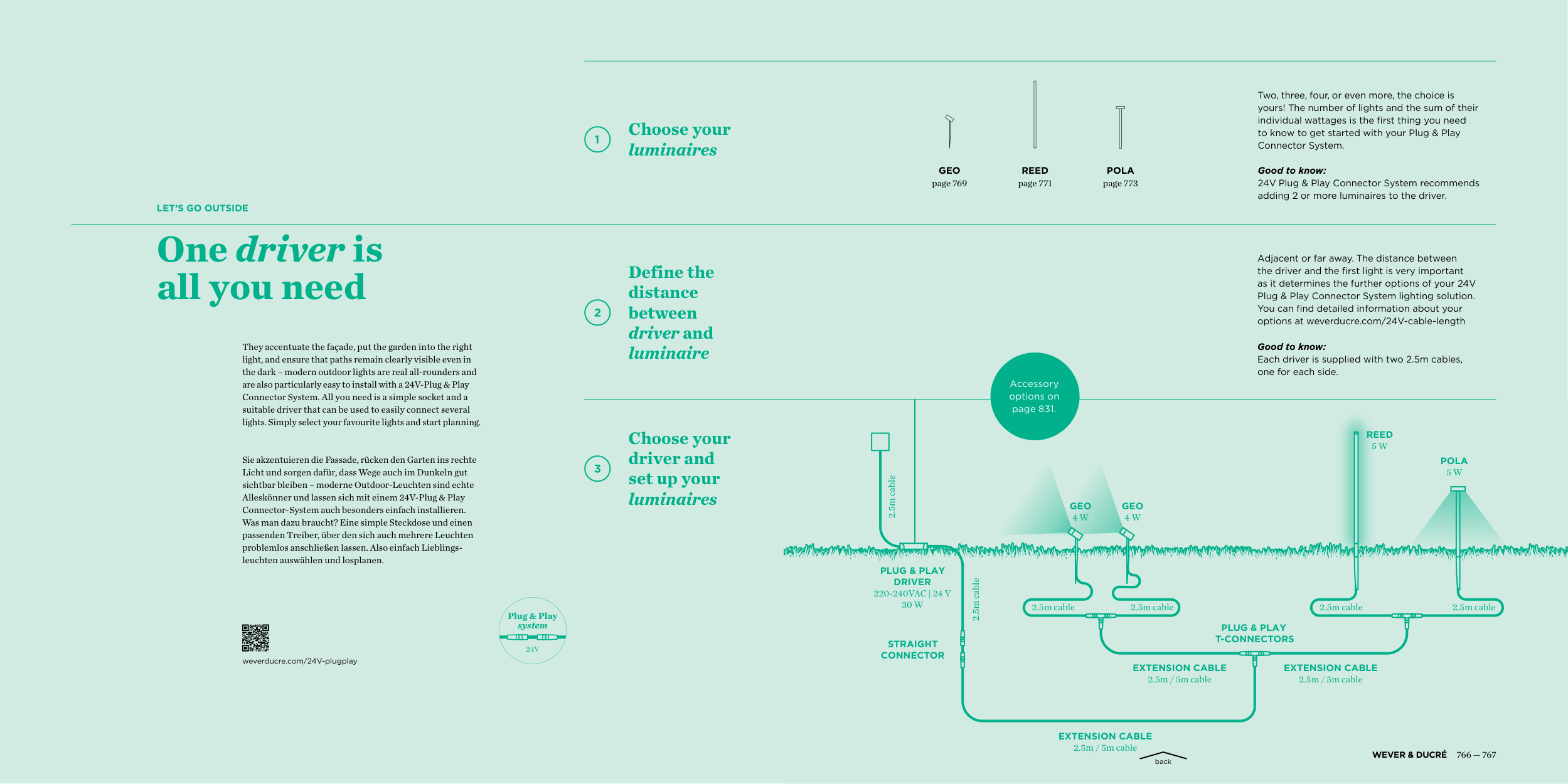

GEO
4 W
PLUG & PLAY
DRIVER
220-240VAC | 24 V
30 W
EXTENSION CABLE
2.5m / 5m cable
EXTENSION CABLE
2.5m / 5m cable
EXTENSION CABLE
2.5m / 5m cable
2.5m cable
2.5m cable
2.5m cable
2.5m cable
2.5m cable
PLUG & PLAY
T-CONNECTORS
GEO
4 W
REED
5 W
POLA
5 W
STRAIGHT
CONNECTOR
2.5m cable
Define the
distance
between
driver and
luminaire
Choose your
luminaires
Choose your
driver and
set up your
luminaires
Two, three, four, or even more, the choice is
yours! The number of lights and the sum of their
individual wattages is the first thing you need
to know to get started with your Plug & Play
Connector System.
Good to know:
24V Plug & Play Connector System recommends
adding 2 or more luminaires to the driver.
Adjacent or far away. The distance between
the driver and the first light is very important
as it determines the further options of your 24V
Plug & Play Connector System lighting solution.
You can find detailed information about your
options at weverducre.com/24V-cable-length
Good to know:
Each driver is supplied with two 2.5m cables,
one for each side.
GEO
page 769
REED
page 771
POLA
page 773
weverducre.com/24V-plugplay
Accessory
options on
page 831.
Plug & Play
system
24V
One driver is
all you need
LET’S GO OUTSIDE
They accentuate the façade, put the garden into the right
light, and ensure that paths remain clearly visible even in
the dark – modern outdoor lights are real all-rounders and
are also particularly easy to install with a 24V-Plug & Play
Connector System. All you need is a simple socket and a
suitable driver that can be used to easily connect several
lights. Simply select your favourite lights and start planning.
Sie akzentuieren die Fassade, rücken den Garten ins rechte
Licht und sorgen dafür, dass Wege auch im Dunkeln gut
sichtbar bleiben – moderne Outdoor-Leuchten sind echte
Alleskönner und lassen sich mit einem 24V-Plug & Play
Connector-System auch besonders einfach installieren.
Was man dazu braucht? Eine simple Steckdose und einen
passenden Treiber, über den sich auch mehrere Leuchten
problemlos anschließen lassen. Also einfach Lieblings-
leuchten auswählen und losplanen.
766 — 767
