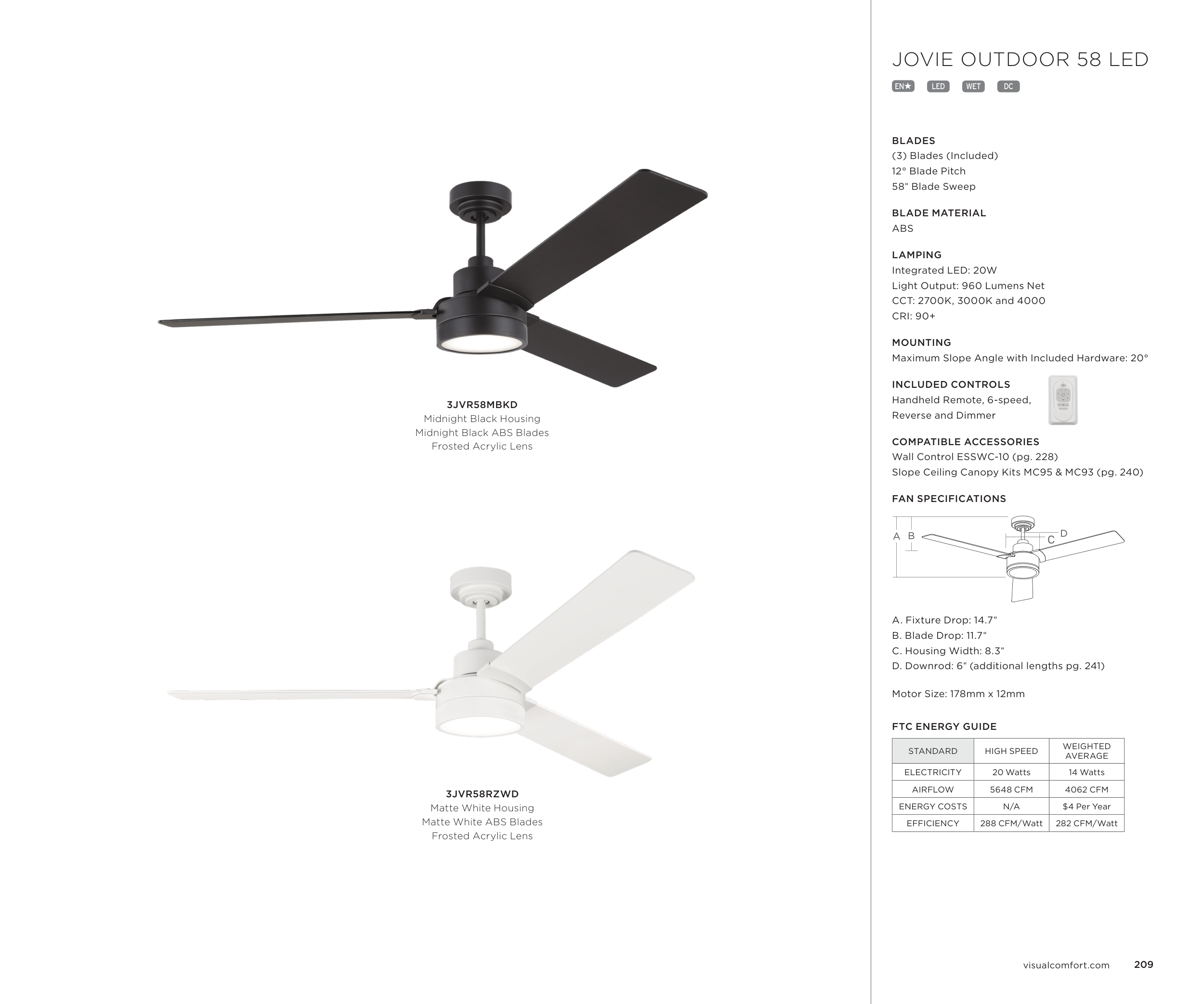

JOVIE OUTDOOR 58 LED
EN★ LED WET
DC
BLADES
(3) Blades (Included)
12° Blade Pitch
58" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 960 Lumens Net
CCT: 2700K, 3000K and 4000
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Handheld Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-10 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 14.7"
B. Blade Drop: 11.7"
C. Housing Width: 8.3"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 178mm x 12mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
20 Watts
14 Watts
AIRFLOW
5648 CFM
4062 CFM
ENERGY COSTS
N/A
$4 Per Year
EFFICIENCY
288 CFM/Watt
282 CFM/Watt
3JVR58MBKD
Midnight Black Housing
Midnight Black ABS Blades
Frosted Acrylic Lens
3JVR58RZWD
Matte White Housing
Matte White ABS Blades
Frosted Acrylic Lens
209
visualcomfort.com
