2"
51 mm
(L) CABLE SEPARATION:
1"
2"
3.5"
5.5"
8"
(L)
SERIES
SYSTEM
PRODUCT
CABLE SEPARATION (L)
FINISH
LAMP
700
K
KABLE LITE
PIV
01 1"
02 2"
03 3.5"
05 5.5"
08 8"
S
SATIN NICKEL
NO LAMP
SIZE
H: 2"
Must specify cable separation length
at time of ordering.
ORDERING GRID
LAMPING
No Lamp Option
Rated for (1) 75 watt max. halogen
MR16 lamp. See P. 151 for LED
MR16 lamping options. Dimmable with
low-voltage electronic or magnetic
dimmers (based on transformer).

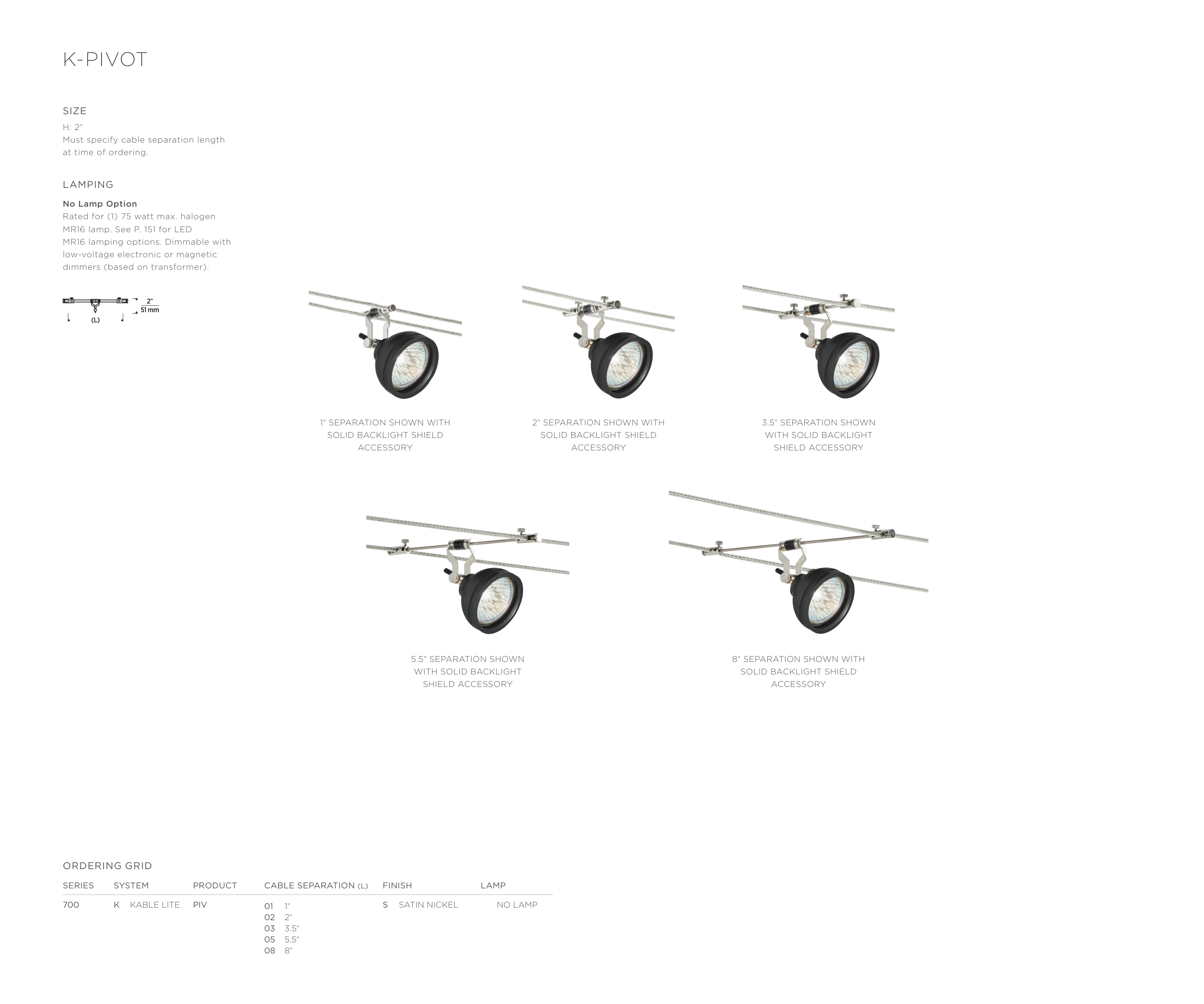

K-PIVOT
1" SEPARATION SHOWN WITH
SOLID BACKLIGHT SHIELD
ACCESSORY
3.5" SEPARATION SHOWN
WITH SOLID BACKLIGHT
SHIELD ACCESSORY
2" SEPARATION SHOWN WITH
SOLID BACKLIGHT SHIELD
ACCESSORY
8" SEPARATION SHOWN WITH
SOLID BACKLIGHT SHIELD
ACCESSORY
5.5" SEPARATION SHOWN
WITH SOLID BACKLIGHT
SHIELD ACCESSORY
