3.8"
96 mm
2.3"
58 mm
(H)
(H) STEM HEIGHT:
3"
6"
12"
SERIES
SYSTEM
PRODUCT
STEM LENGTH (H)
FINISH
LAMP
700
FJ FREEJACK
MP MONOPOINT*
MO MONORAIL
TLM (HALOGEN)
TLML (LED)
03 3"
06 6"
12 12"
Z
ANTIQUE BRONZE
NB NATURAL BRASS
S
SATIN NICKEL
W WHITE**
NO LAMP
-LED930 INTEGRATED LED
90 CRI 3000K 120V
SIZE
H: 2.3" | W: 3.8"
Must specify length at time of ordering.
LED ONLY - Due to low in-rush current, only
requires transformer to be de-rated by 30%.
LAMPING
No Lamp Option
Rated for 50 watt max. halogen MR16 lamp.
See P. 151 for LED MR16 lamping options.
Integrated LED
Voltage: 12V
Total Watts: 8W
Delivered Lumens: 750
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers.
ORDERING GRID

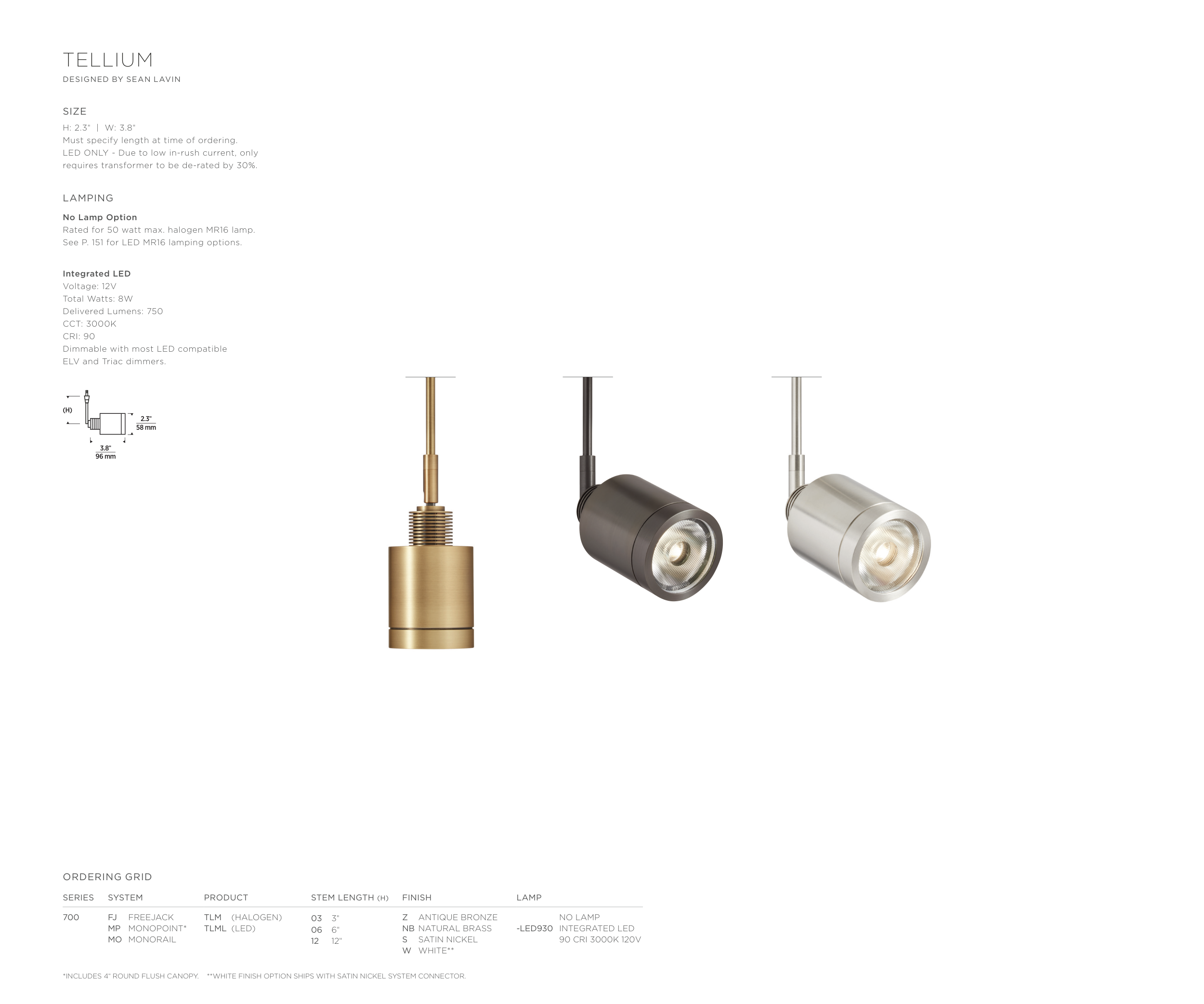

TELLIUM
DESIGNED BY SEAN LAVIN
*INCLUDES 4" ROUND FLUSH CANOPY. **WHITE FINISH OPTION SHIPS WITH SATIN NICKEL SYSTEM CONNECTOR.
