POWER ACCESSORIES
HARDWIRE FEEDS
Pair of field-cuttable, hand bendable hardwire
feeds to replace standard feeds. For dual-feed
canopies and dual-feed surface transformers,
order two pairs.
700HWD24S (24" LENGTH)
700HWD48S (48" LENGTH)
700HWD72S (72" LENGTH)
700HWD96S (96" LENGTH)
DEBUZZING DIMMING COIL
Wire in series on the 120V side of magnetic
transformers to reduce buzzing noise that
is sometimes present. Select coil based on
the wattage of your transformer.
700DIM150 (150W)
700DIM300 (300W)

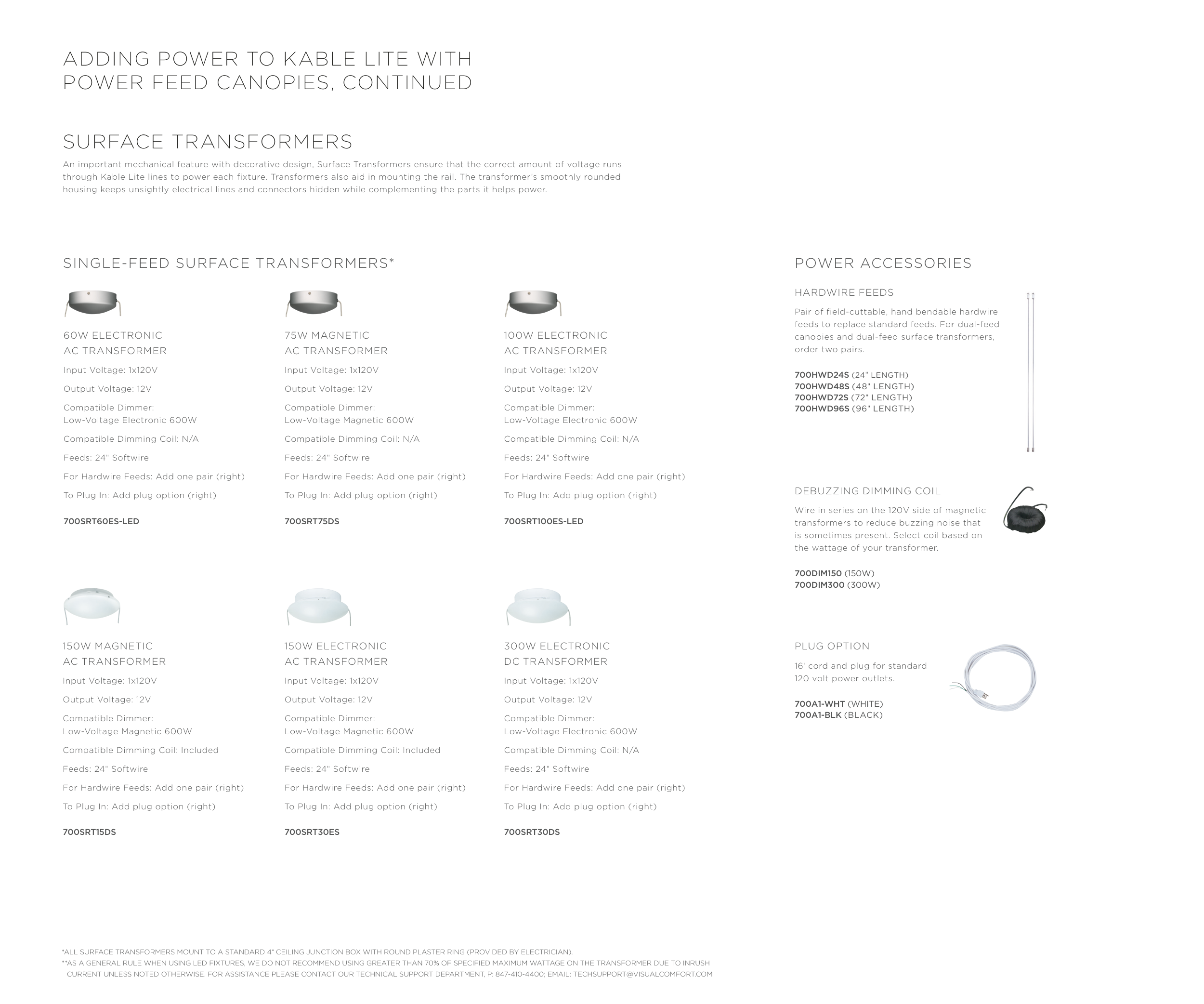

SURFACE TRANSFORMERS
An important mechanical feature with decorative design, Surface Transformers ensure that the correct amount of voltage runs
through Kable Lite lines to power each fixture. Transformers also aid in mounting the rail. The transformer’s smoothly rounded
housing keeps unsightly electrical lines and connectors hidden while complementing the parts it helps power.
60W ELECTRONIC
AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer:
Low-Voltage Electronic 600W
Compatible Dimming Coil: N/A
Feeds: 24" Softwire
For Hardwire Feeds: Add one pair (right)
To Plug In: Add plug option (right)
700SRT60ES-LED
150W MAGNETIC
AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer:
Low-Voltage Magnetic 600W
Compatible Dimming Coil: Included
Feeds: 24" Softwire
For Hardwire Feeds: Add one pair (right)
To Plug In: Add plug option (right)
700SRT15DS
75W MAGNETIC
AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer:
Low-Voltage Magnetic 600W
Compatible Dimming Coil: N/A
Feeds: 24" Softwire
For Hardwire Feeds: Add one pair (right)
To Plug In: Add plug option (right)
700SRT75DS
150W ELECTRONIC
AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer:
Low-Voltage Magnetic 600W
Compatible Dimming Coil: Included
Feeds: 24" Softwire
For Hardwire Feeds: Add one pair (right)
To Plug In: Add plug option (right)
700SRT30ES
300W ELECTRONIC
DC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer:
Low-Voltage Electronic 600W
Compatible Dimming Coil: N/A
Feeds: 24" Softwire
For Hardwire Feeds: Add one pair (right)
To Plug In: Add plug option (right)
700SRT30DS
100W ELECTRONIC
AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer:
Low-Voltage Electronic 600W
Compatible Dimming Coil: N/A
Feeds: 24" Softwire
For Hardwire Feeds: Add one pair (right)
To Plug In: Add plug option (right)
700SRT100ES-LED
SINGLE-FEED SURFACE TRANSFORMERS*
ADDING POWER TO KABLE LITE WITH
POWER FEED CANOPIES, CONTINUED
*ALL SURFACE TRANSFORMERS MOUNT TO A STANDARD 4" CEILING JUNCTION BOX WITH ROUND PLASTER RING (PROVIDED BY ELECTRICIAN).
** AS A GENERAL RULE WHEN USING LED FIXTURES, WE DO NOT RECOMMEND USING GREATER THAN 70% OF SPECIFIED MAXIMUM WATTAGE ON THE TRANSFORMER DUE TO INRUSH
CURRENT UNLESS NOTED OTHERWISE. FOR ASSISTANCE PLEASE CONTACT OUR TECHNICAL SUPPORT DEPARTMENT, P: 847-410-4400; EMAIL: TECHSUPPORT@VISUALCOMFORT.COM
PLUG OPTION
16' cord and plug for standard
120 volt power outlets.
700A1-WHT (WHITE)
700A1-BLK (BLACK)
