KABLE LITE FREEJACK
CONNECTOR
For cable separations of 8" or less.
May be field cut to desired separation
(2" minimum). Satin Nickel.

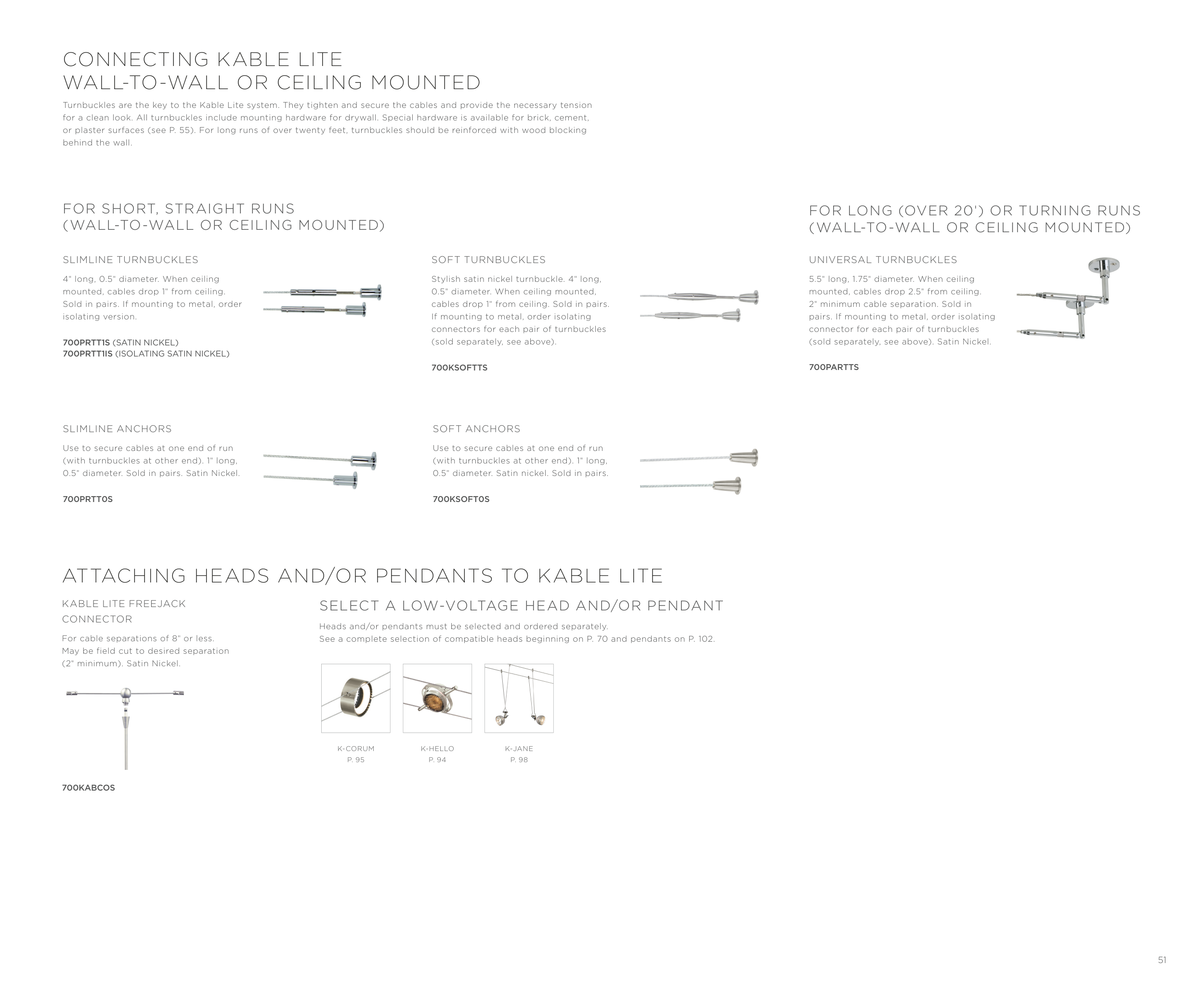

CONNECTING KABLE LITE
WALL-TO-WALL OR CEILING MOUNTED
Turnbuckles are the key to the Kable Lite system. They tighten and secure the cables and provide the necessary tension
for a clean look. All turnbuckles include mounting hardware for drywall. Special hardware is available for brick, cement,
or plaster surfaces (see P. 55). For long runs of over twenty feet, turnbuckles should be reinforced with wood blocking
behind the wall.
ATTACHING HEADS AND/OR PENDANTS TO KABLE LITE
51
SELECT A LOW-VOLTAGE HEAD AND/OR PENDANT
Heads and/or pendants must be selected and ordered separately.
See a complete selection of compatible heads beginning on P. 70 and pendants on P. 102.
FOR LONG (OVER 20') OR TURNING RUNS
(WALL-TO-WALL OR CEILING MOUNTED)
UNIVERSAL TURNBUCKLES
5.5" long, 1.75" diameter. When ceiling
mounted, cables drop 2.5" from ceiling.
2" minimum cable separation. Sold in
pairs. If mounting to metal, order isolating
connector for each pair of turnbuckles
(sold separately, see above). Satin Nickel.
700PARTTS
FOR SHORT, STRAIGHT RUNS
(WALL-TO-WALL OR CEILING MOUNTED)
SLIMLINE TURNBUCKLES
4" long, 0.5" diameter. When ceiling
mounted, cables drop 1" from ceiling.
Sold in pairs. If mounting to metal, order
isolating version.
700PRTT1S (SATIN NICKEL)
700PRTT1IS (ISOLATING SATIN NICKEL)
SLIMLINE ANCHORS
Use to secure cables at one end of run
(with turnbuckles at other end). 1" long,
0.5" diameter. Sold in pairs. Satin Nickel.
700PRTT0S
SOFT TURNBUCKLES
Stylish satin nickel turnbuckle. 4" long,
0.5" diameter. When ceiling mounted,
cables drop 1" from ceiling. Sold in pairs.
If mounting to metal, order isolating
connectors for each pair of turnbuckles
(sold separately, see above).
700KSOFTTS
SOFT ANCHORS
Use to secure cables at one end of run
(with turnbuckles at other end). 1" long,
0.5" diameter. Satin nickel. Sold in pairs.
700KSOFT0S
700KABCOS
K-JANE
P. 98
K-HELLO
P. 94
K-CORUM
P. 95
