700MOCINC
700MOCCNR (AGED BRASS)
700MOCCNZ (ANTIQUE BRONZE)
700MOCCNS (SATIN NICKEL)
700MOBHSC60BRZ (ANTIQUE BRONZE)
700MOBHSC60S (SATIN NICKEL)
700MOBH9012BRZ (12" RADIUS/ANTIQUE BRONZE)
700MOBH9018BRZ (18" RADIUS/ANTIQUE BRONZE)
700MOBH9024BRZ (24" RADIUS/ANTIQUE BRONZE)
700MOBH9036BRZ (36" RADIUS/ANTIQUE BRONZE)
700MOBH9048BRZ (48" RADIUS/ANTIQUE BRONZE)
700MOBH9060BRZ (60" RADIUS/ANTIQUE BRONZE)
700MOBH9012S (12" RADIUS/SATIN NICKEL)
700MOBH9018S (18" RADIUS/SATIN NICKEL)
700MOBH9024S (24" RADIUS/SATIN NICKEL)
700MOBH9036S (36" RADIUS/SATIN NICKEL)
700MOBH9048S (48" RADIUS/SATIN NICKEL)
700MOBH9060S (60" RADIUS/SATIN NICKEL)
700MOA24S (24" LENGTH)
700MOA48S (48" LENGTH)
700MOA96S (96" LENGTH)
EACH SHIPS WITH A PAIR OF CONDUCTIVE CONNECTORS
700MOCFXHR (AGED BRASS)
700MOCFXHZ (ANTIQUE BRONZE)
700MOCFXHS (SATIN NICKEL)
700MOCFXVZ (ANTIQUE BRONZE)
700MOCFXVS (SATIN NICKEL)
700MOCCAPR (AGED BRASS)
700MOCCAPZ (ANTIQUE BRONZE)
700MOCCAPS (SATIN NICKEL)
CONDUCTIVE CONNECTORS
Join sections of rail together end to
end. Order separately if cutting and
rejoining rails. Sold in pairs.
END CAPS
Decorative end caps fit into ends
of MonoRail run for a finished
look. Sold in pairs; order one
pair for each end.
FLEXIBLE CONNECTORS
Join sections of rail together end to end at desired sharp
horizontal angle or desired vertical angle. Sold in pairs.
ISOLATING CONNECTORS
Join sections of rail and isolate
power feeds from each other.
Order additional if required by
layout. Sold in pairs.
STANDARD MONORAIL FINISHES
DID YOU KNOW?
• MonoRail is hand-bendable
and field-cuttable
• Can be installed on a vaulted ceiling
• Can be tailored to fit any space
with curves or angles
• Can be used with both heads and
pendants for 100+ configurations
SATIN NICKEL - CLEAR INSULATOR
HORIZONTAL CONNECTORS
VERTICAL CONNECTORS

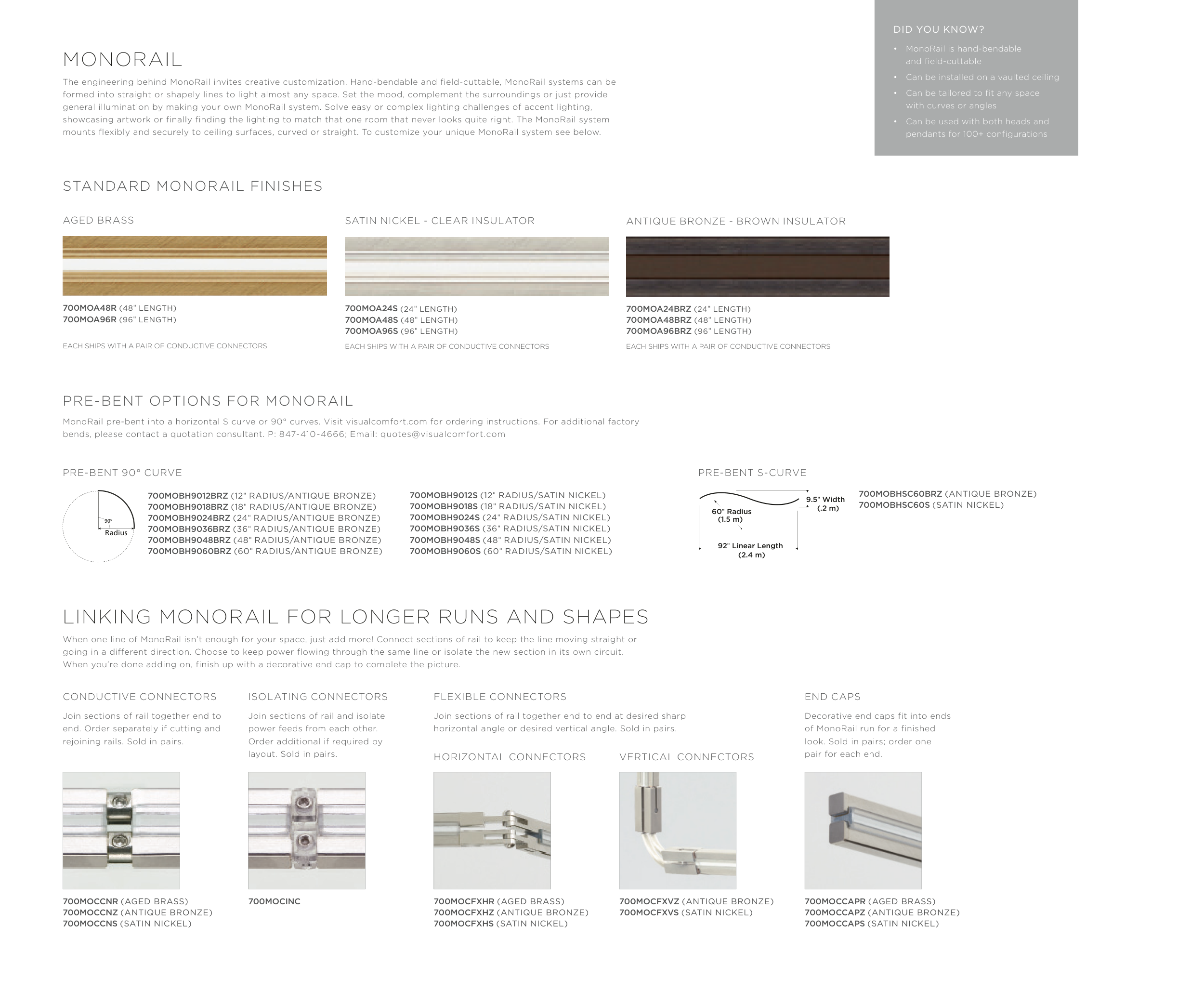

MONORAIL
The engineering behind MonoRail invites creative customization. Hand-bendable and field-cuttable, MonoRail systems can be
formed into straight or shapely lines to light almost any space. Set the mood, complement the surroundings or just provide
general illumination by making your own MonoRail system. Solve easy or complex lighting challenges of accent lighting,
showcasing artwork or finally finding the lighting to match that one room that never looks quite right. The MonoRail system
mounts flexibly and securely to ceiling surfaces, curved or straight. To customize your unique MonoRail system see below.
LINKING MONORAIL FOR LONGER RUNS AND SHAPES
When one line of MonoRail isn’t enough for your space, just add more! Connect sections of rail to keep the line moving straight or
going in a different direction. Choose to keep power flowing through the same line or isolate the new section in its own circuit.
When you’re done adding on, finish up with a decorative end cap to complete the picture.
PRE-BENT OPTIONS FOR MONORAIL
MonoRail pre-bent into a horizontal S curve or 90° curves. Visit visualcomfort.com for ordering instructions. For additional factory
bends, please contact a quotation consultant. P: 847-410-4666; Email: quotes@visualcomfort.com
700MOA24BRZ (24" LENGTH)
700MOA48BRZ (48" LENGTH)
700MOA96BRZ (96" LENGTH)
EACH SHIPS WITH A PAIR OF CONDUCTIVE CONNECTORS
ANTIQUE BRONZE - BROWN INSULATOR
PRE-BENT S-CURVE
PRE-BENT 90° CURVE
700MOA48R (48" LENGTH)
700MOA96R (96" LENGTH)
EACH SHIPS WITH A PAIR OF CONDUCTIVE CONNECTORS
AGED BRASS
90º
Radius
9.5" Width
(.2 m)
60" Radius
92" Linear Length
(2.4 m)
(1.5 m)
