350mA - required remote mounted driver + required cover/canopy see below
12 x LED array 6W (LED incl.) - 350mA - 12 x 634lm - 2700K - CRI >93
Each arm on the same level has the same length: 4 x 250 mm = L 516 mm W 316 mm / 4 x 500 mm = L 949 mm W 565 mm / 4 x 750 mm = L 1382 mm W 815 mm.
SUSPENSION -
IP50
gunmetal, bronze and nickel on demand
gunmetal, bronze and nickel on demand
canopy B10
Ø50
105
cover C6
2
Ø60
cover C8
5
Ø80
REQUIRED COVER/CANOPY for Austere-Chandelier 3X RF 75 / RF 100 with REMOTE MOUNTED DRIVER
remote driver
aperture : Ø30 D50
remote driver
aperture : Ø45 - depth: min. 60mm
DRIVER
NOTE: If the thickness of the false ceiling
is 15mm, the total length of the chandelier:
RF 75 with cover C6 will be 1050mm
RF 100 with cover C6 will be 1300mm
NOTE: the total length of the chandelier:
RF 75 with cover C8 will be 1078mm
RF 100 with cover C8 will be 1328mm
NOTE: the total length of the chandelier:
RF 75 with canopy B10 will be 1178mm
RF 100 with canopy B10 will be 1428mm
DEVICE
DIM.
DRIVER
N 80W
D 80WP
D 80WD
REQUIRED REMOTE MOUNTED DRIVER for Austere-Chandelier 3X RF 75 / RF 100
For warranty use only Trizo21® supplied LED drivers as mentioned. For all specs and techs about drivers, see www.trizo21.com/drivers
1 x
1 x
1 x
(non-dimmable)
driver only fits through cutout hole of fixture with C6, min. depth for driver in false ceiling: 280mm
NO
PU
1-10 (1-10V)
+
(PUSH-DIM)
PU (PUSH-DIM)
DA (DALI)
+
false ceiling
concrete ceiling
false/concrete ceiling
3X RF 75
3X RF 100
21CO 3300
21CO 2200
21CO 1100
brass
black
white
21CO 8003
21CO 8002
21CO 8001
brass
black
white
21CP 3333
21CP 2222
21CP 1 1 1 1
brass
black
white
4x 500mm
4x 500mm
4x 250mm
4x 250mm
&
&
&
&
4x 750mm
4x 750mm

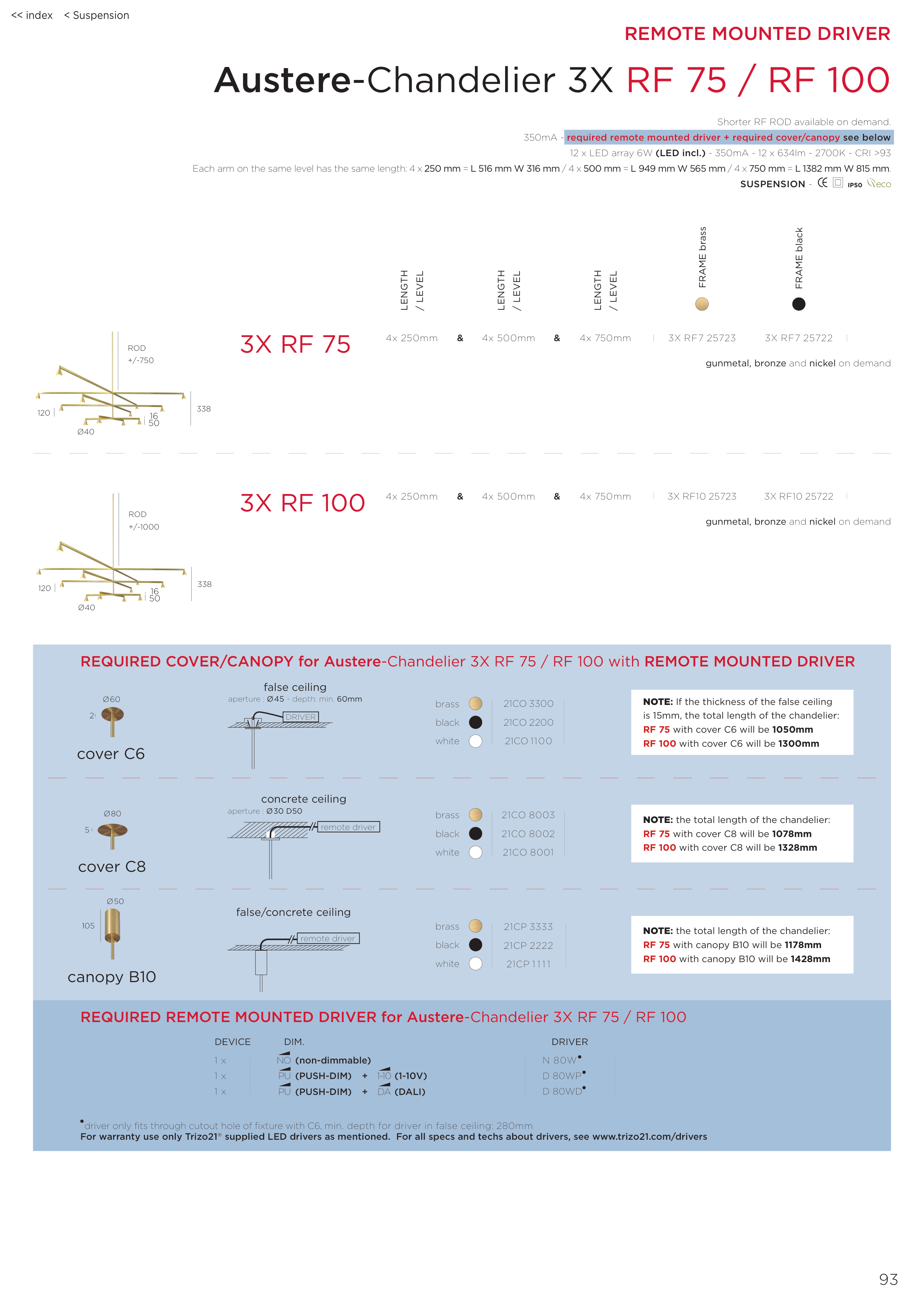

Austere-Chandelier 3X RF 75 / RF 100
REMOTE MOUNTED DRIVER
ROD
+/-750
ROD
+/-1000
Ø40
Ø40
120
120
50
50
16
16
338
338
LENGTH
/ LEVEL
LENGTH
/ LEVEL
LENGTH
/ LEVEL
FRAME black
FRAME brass
