1X RS 2022
1X RS 5022
1X RS 7022
1X RS 2023
1X RS 5023
1X RS 7023
1X RS 2013
1X RS 5013
1X RS 7013
1X RL 2022
1X RL 5022
1X RL 7022
1X RL 2023
1X RL 5023
1X RL 7023
1X RL 2013
1X RL 5013
1X RL 7013
350mA - required remote mounted driver + required cover/canopy see below
4 x LED array 6W (LED incl.) - 350mA - 4 x 634lm - 2700K - CRI >93
Each arm on the same level has the same length: 4 x 250 mm = L 516 mm W 316 mm / 4 x 500 mm = L 949 mm W 565 mm / 4 x 750 mm = L 1382 mm W 815 mm.
SUSPENSION -
IP50
gunmetal, bronze and nickel on demand
gunmetal, bronze and nickel on demand
canopy B11
Ø50
105
cover C6
2
Ø60
35
cover C6
2
Ø60
35
canopy B10
Ø50
105
35
REQUIRED COVER/CANOPY for Austere-Chandelier 1X RS 16 / RL 79 with REMOTE MOUNTED DRIVER
DEVICE
DIM.
DRIVER
N 50W
D 80WP
D 80WD
REQUIRED REMOTE MOUNTED DRIVER for Austere-Chandelier 1X RS 16 / RL 79
For warranty use only Trizo21® supplied LED drivers as mentioned. For all specs and techs about drivers, see www.trizo21.com/drivers
1 x
1 x
1 x
(non-dimmable)
driver only fits through cutout hole of fixture with C6, min. depth for driver in false ceiling: 280mm
NO
PU
1-10 (1-10V)
+
(PUSH-DIM)
PU (PUSH-DIM)
DA (DALI)
+
remote driver
false/concrete ceiling
remote driver
false ceiling
aperture : Ø45 - depth: min. 40mm
DRIVER
concrete ceiling
aperture : Ø45 - depth: min. 40mm
remote driver
false/concrete ceiling
21CO 0003
21CO 0002
21CO 0001
brass
black
white
21CO 0013
21CO 0012
21CO 0011
brass
black
white
21CP 3003
21CP 2002
21CP 1001
brass
black
white
21CP 3033
21CP 2022
21CP 1011
brass
black
white
4x 250mm
4x 500mm
4x 750mm
4x 250mm
4x 500mm
4x 750mm
FRAME black
POWERCORD black
STEELCABLE black
FRAME brass
POWERCORD black
STEELCABLE black
FRAME brass
POWERCORD white
STEELCABLE silver
LENGTH
/ LEVEL

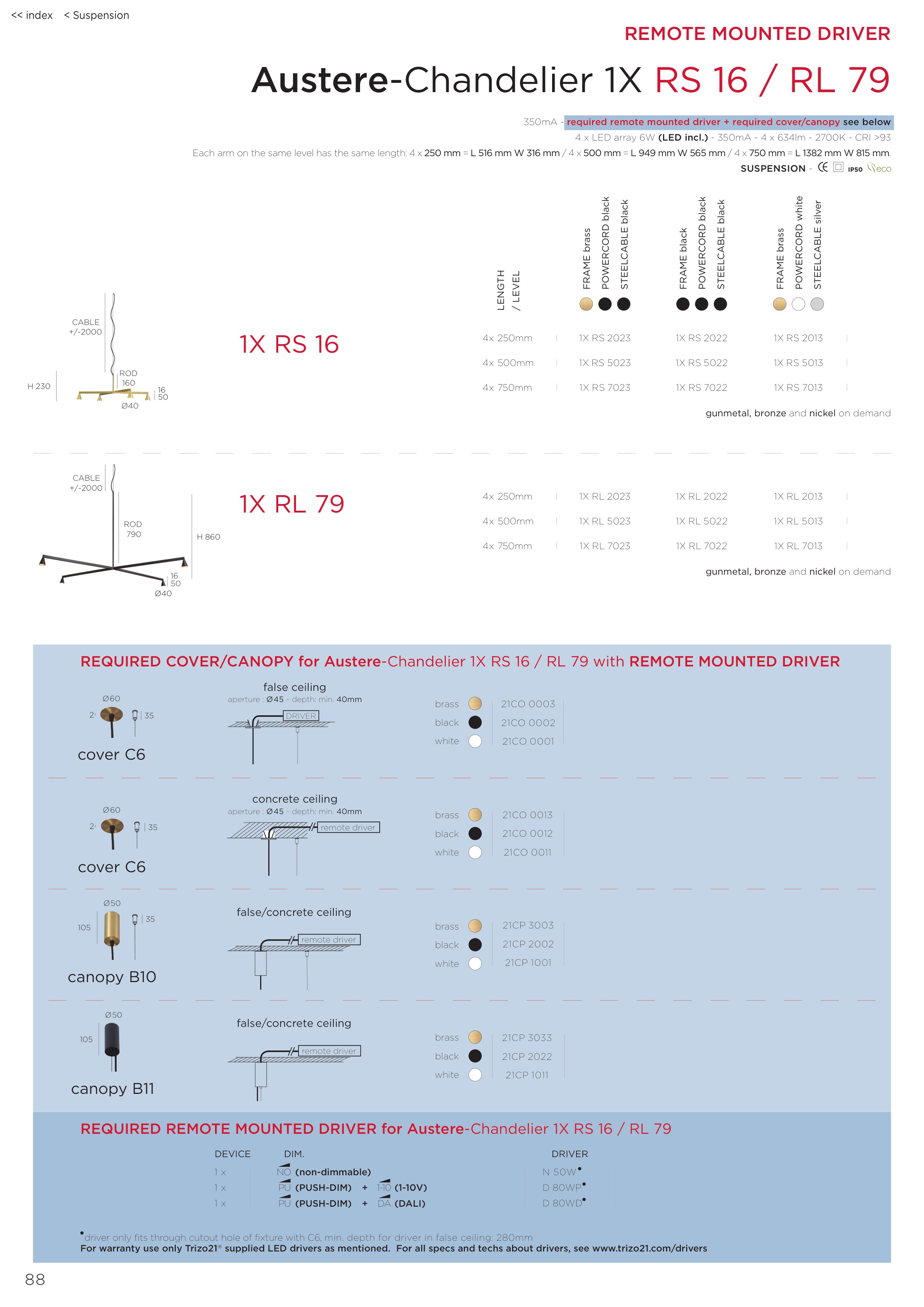

Austere-Chandelier 1X RS 16 / RL 79
REMOTE MOUNTED DRIVER
1X RS 16
1X RL 79
H 230
H 860
Ø40
Ø40
790
ROD
50
50
16
16
160
ROD
+/-2000
CABLE
+/-2000
CABLE
