dimmable driver incl. in base
+ casambi possible
Only for 1Y, 2Y, 1X
Max. 6 light-elements
dimmable driver incl. in base
+ casambi possible
Only for 1Y, 2Y, 1X
Max. 6 light-elements
rod short: RS 16
rod long: RL 79
FRAME
POWERCORD
FRAME
POWERCORD
Choose your base (driver incl.) for ‘surface mounting’:
Choose the colors and the vertical ROD: RS 16 or RL 79
(1-10V / PUSH-DIM / DALI)
(1-10V / PUSH-DIM / DALI)
(1-10V / PUSH-DIM / DALI)
base B32
base B50
base B21
DRIVER
DRIVER
DRIVER
non-dimmable driver incl. in base
base B20
DRIVER
dimmable driver incl. in base
+ casambi possible
IV.
V.
Ø199
40
35
35
35
Ø199
40
327
50
30
507
60
35

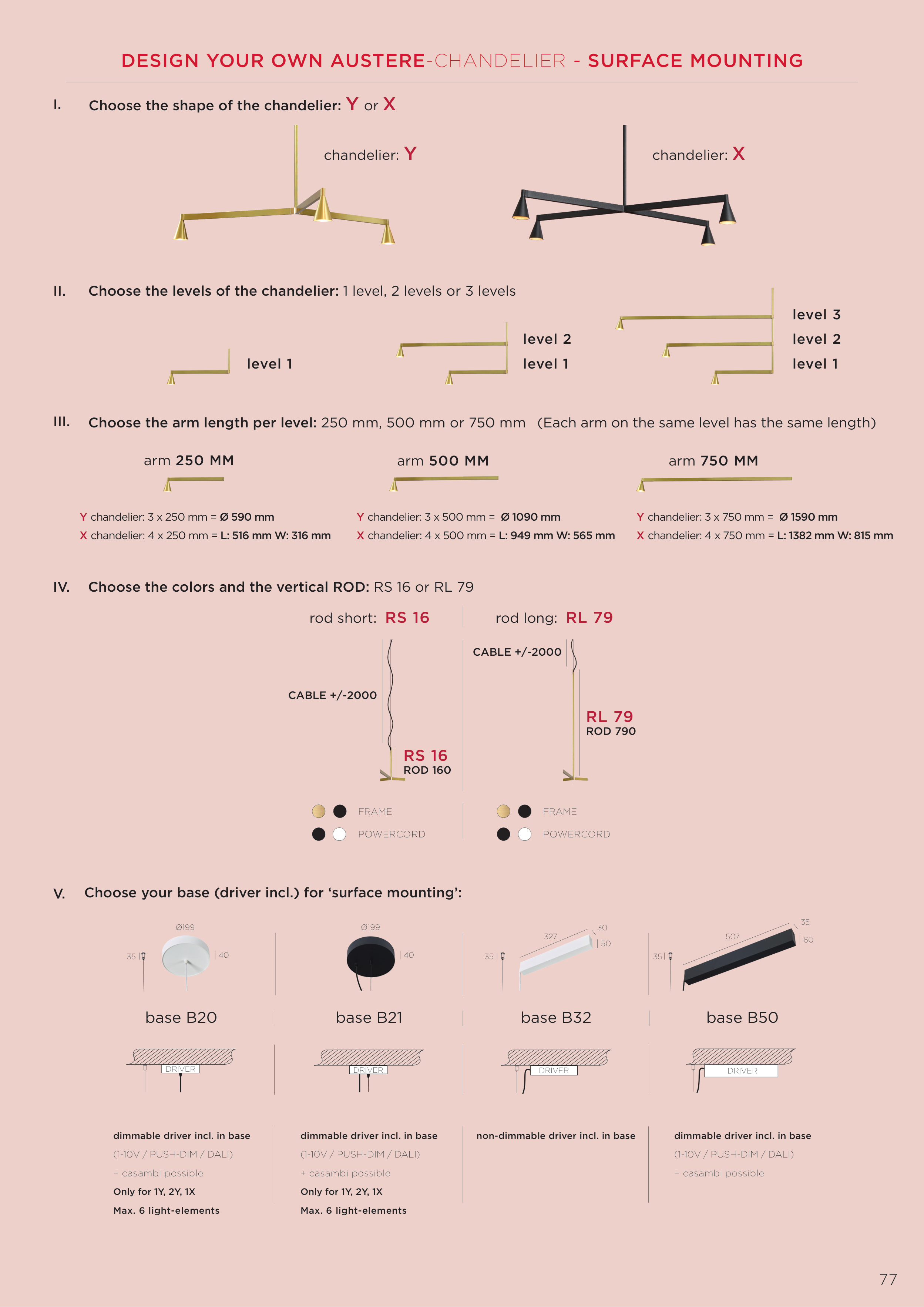

DESIGN YOUR OWN AUSTERE-CHANDELIER - SURFACE MOUNTING
chandelier: X
Choose the shape of the chandelier: Y or X
I.
Choose the levels of the chandelier: 1 level, 2 levels or 3 levels
II.
III.
level 2
level 1
level 2
level 3
level 1
level 1
chandelier: Y
Choose the arm length per level: 250 mm, 500 mm or 750 mm
(Each arm on the same level has the same length)
Y chandelier: 3 x 250 mm = Ø 590 mm
X chandelier: 4 x 250 mm = L: 516 mm W: 316 mm
Y chandelier: 3 x 500 mm = Ø 1090 mm
X chandelier: 4 x 500 mm = L: 949 mm W: 565 mm
Y chandelier: 3 x 750 mm = Ø 1590 mm
X chandelier: 4 x 750 mm = L: 1382 mm W: 815 mm
arm 250 MM
arm 500 MM
arm 750 MM
CABLE +/-2000
RS 16
ROD 160
CABLE +/-2000
ROD 790
RL 79
77
