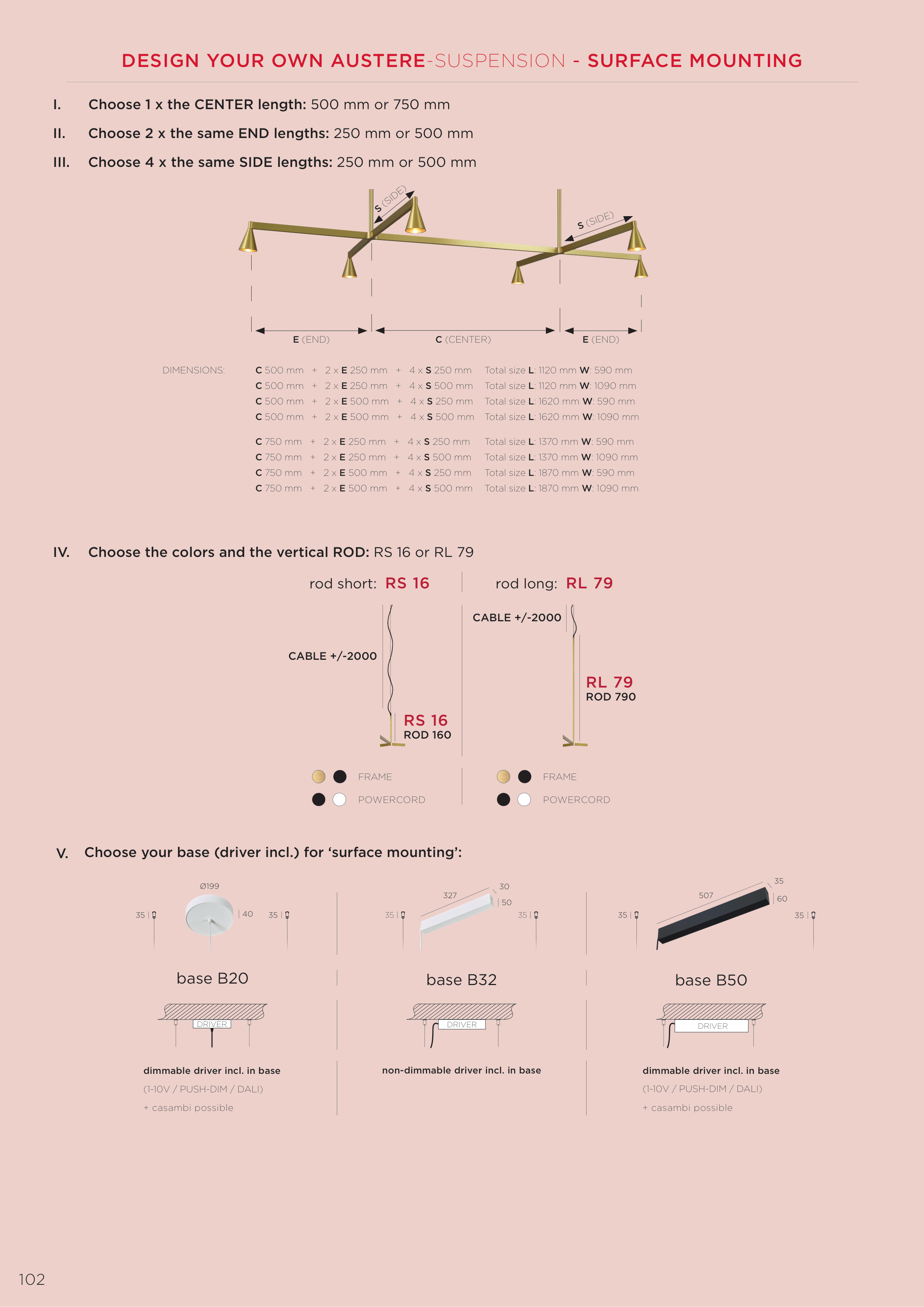

DESIGN YOUR OWN AUSTERE-SUSPENSION - SURFACE MOUNTING
DRIVER
DRIVER
DRIVER
327
50
30
35
35
Choose your base (driver incl.) for ‘surface mounting’:
non-dimmable driver incl. in base
V.
Choose the colors and the vertical ROD: RS 16 or RL 79
rod short: RS 16
rod long: RL 79
FRAME
POWERCORD
FRAME
POWERCORD
Total size L: 1120 mm W: 590 mm
Total size L: 1120 mm W: 1090 mm
Total size L: 1620 mm W: 590 mm
Total size L: 1620 mm W: 1090 mm
Total size L: 1370 mm W: 590 mm
Total size L: 1370 mm W: 1090 mm
Total size L: 1870 mm W: 590 mm
Total size L: 1870 mm W: 1090 mm
C 500 mm + 2 x E 250 mm + 4 x S 250 mm
C 500 mm + 2 x E 250 mm + 4 x S 500 mm
C 500 mm + 2 x E 500 mm + 4 x S 250 mm
C 500 mm + 2 x E 500 mm + 4 x S 500 mm
C 750 mm + 2 x E 250 mm + 4 x S 250 mm
C 750 mm + 2 x E 250 mm + 4 x S 500 mm
C 750 mm + 2 x E 500 mm + 4 x S 250 mm
C 750 mm + 2 x E 500 mm + 4 x S 500 mm
DIMENSIONS:
Choose 1 x the CENTER length: 500 mm or 750 mm
I.
Choose 2 x the same END lengths: 250 mm or 500 mm
Choose 4 x the same SIDE lengths: 250 mm or 500 mm
II.
III.
IV.
C (CENTER)
E (END)
E (END)
S (SIDE)
S (SIDE)
dimmable driver incl. in base
(1-10V / PUSH-DIM / DALI)
+ casambi possible
(1-10V / PUSH-DIM / DALI)
dimmable driver incl. in base
+ casambi possible
