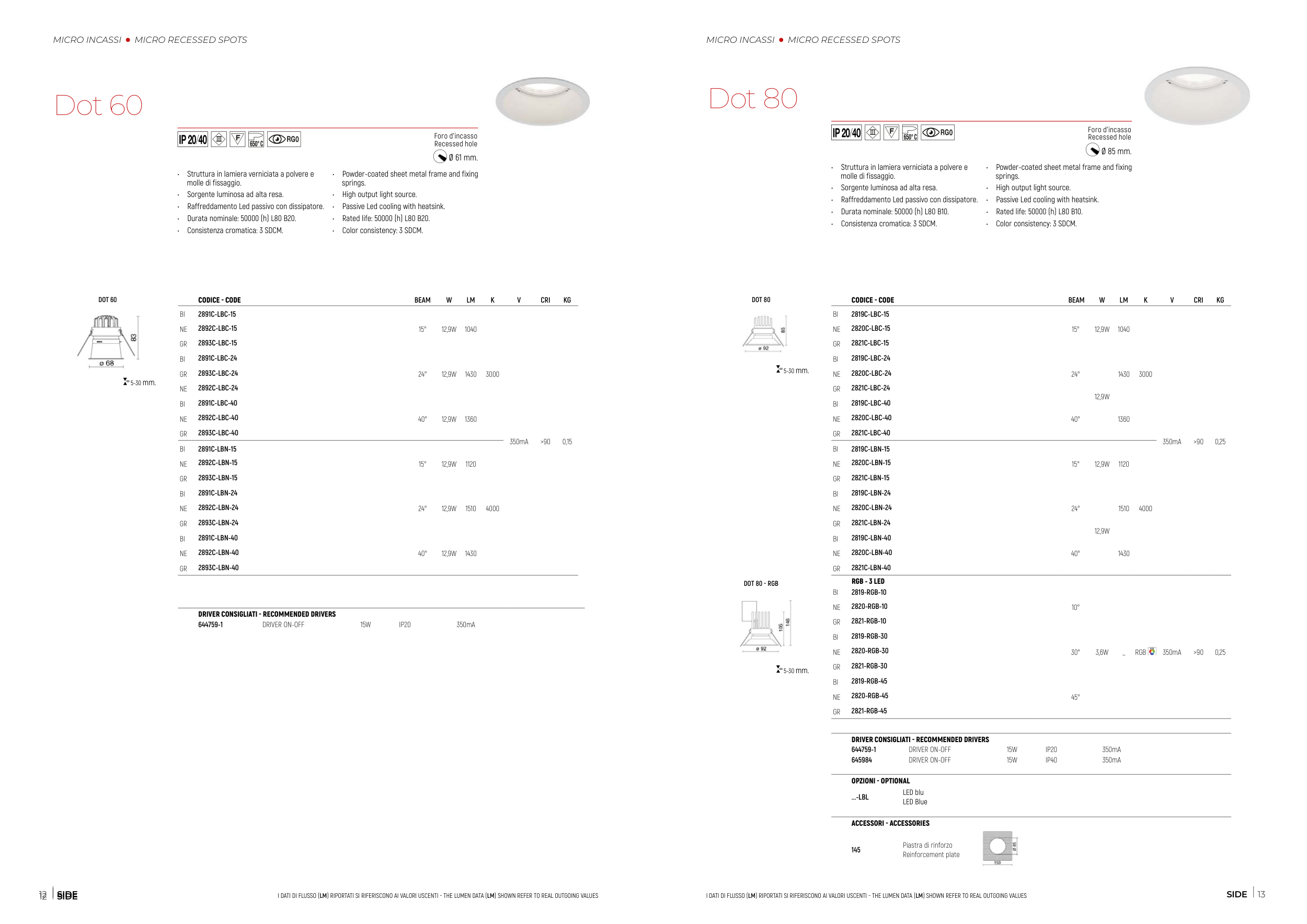

MICRO INCASSI MICRO RECESSED SPOTS
MICRO INCASSI MICRO RECESSED SPOTS
Dot 60
Ø 61 mm.
Foro d’incasso
Recessed hole
• Struttura in lamiera verniciata a polvere e
molle di fissaggio.
• Sorgente luminosa ad alta resa.
• Raffreddamento Led passivo con dissipatore.
• Durata nominale: 50000 (h) L80 B20.
• Consistenza cromatica: 3 SDCM.
• Powder-coated sheet metal frame and fixing
springs.
• High output light source.
• Passive Led cooling with heatsink.
• Rated life: 50000 (h) L80 B20.
• Color consistency: 3 SDCM.
DRIVER CONSIGLIATI - RECOMMENDED DRIVERS
644759-1
DRIVER ON-OFF
15W
IP20
350mA
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
BI
2891C-LBC-15
15°
12,9W
1040
3000
350mA
>90
0,15
NE
2892C-LBC-15
GR
2893C-LBC-15
BI
2891C-LBC-24
24°
12,9W
1430
GR
2893C-LBC-24
NE
2892C-LBC-24
BI
2891C-LBC-40
40°
12,9W
1360
NE
2892C-LBC-40
GR
2893C-LBC-40
BI
2891C-LBN-15
15°
12,9W
1120
4000
NE
2892C-LBN-15
GR
2893C-LBN-15
BI
2891C-LBN-24
24°
12,9W
1510
NE
2892C-LBN-24
GR
2893C-LBN-24
BI
2891C-LBN-40
40°
12,9W
1430
NE
2892C-LBN-40
GR
2893C-LBN-40
DOT 60
5-30 mm.
Dot 80
Ø 85 mm.
Foro d’incasso
Recessed hole
DRIVER CONSIGLIATI - RECOMMENDED DRIVERS
644759-1
DRIVER ON-OFF
15W
IP20
350mA
645984
DRIVER ON-OFF
15W
IP40
350mA
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
BI
2819C-LBC-15
15°
12,9W
1040
3000
350mA
>90
0,25
NE
2820C-LBC-15
GR
2821C-LBC-15
BI
2819C-LBC-24
24°
12,9W
1430
NE
2820C-LBC-24
GR
2821C-LBC-24
BI
2819C-LBC-40
40°
1360
NE
2820C-LBC-40
GR
2821C-LBC-40
BI
2819C-LBN-15
15°
12,9W
1120
4000
NE
2820C-LBN-15
GR
2821C-LBN-15
BI
2819C-LBN-24
24°
12,9W
1510
NE
2820C-LBN-24
GR
2821C-LBN-24
BI
2819C-LBN-40
40°
1430
NE
2820C-LBN-40
GR
2821C-LBN-40
BI
RGB - 3 LED
2819-RGB-10
10°
3,6W
_
RGB
350mA
>90
0,25
NE
2820-RGB-10
GR
2821-RGB-10
BI
2819-RGB-30
30°
NE
2820-RGB-30
GR
2821-RGB-30
BI
2819-RGB-45
45°
NE
2820-RGB-45
GR
2821-RGB-45
DOT 80
5-30 mm.
DOT 80 - RGB
5-30 mm.
OPZIONI - OPTIONAL
...-LBL
LED blu
LED Blue
ACCESSORI - ACCESSORIES
145
Piastra di rinforzo
Reinforcement plate
• Struttura in lamiera verniciata a polvere e
molle di fissaggio.
• Sorgente luminosa ad alta resa.
• Raffreddamento Led passivo con dissipatore.
• Durata nominale: 50000 (h) L80 B10.
• Consistenza cromatica: 3 SDCM.
• Powder-coated sheet metal frame and fixing
springs.
• High output light source.
• Passive Led cooling with heatsink.
• Rated life: 50000 (h) L80 B10.
• Color consistency: 3 SDCM.
12 SIDE
I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES
