DWELL LOUNGE COLLECTION
*R or L refers to Right or Left arm location. Arm location is defined while sitting on lounge. *S or W refers to Standard or Wide lengths of Extended Arms.
Dimensions shown are indicative. For projects requiring specific dimensions, please get in contact.
JOINER LEG
JL
JOINER CORNER
JC
ARM
A
D 740 H 740
LEG
L
D 740 H 440
MID EXTENDED ARM
MEA-S/W
D 1115 / 1190 H 1020
EXTENDED ARM
EA-S/W
D 1115 / 1190 H 740
HIGH EXTENDED ARM
HEA-S/W
D 1115 / 1190 H 1300
DT-450
OCCASIONAL TABLE
W 450 D 450 H 665
CR
CUSHION REAR
W 580 D 140 H 270
DT-350
PIVOTING TABLE
W 300 D 380 H 500
CD-S/M/L#
CUSHION DIVIDER
SHORT/MEDIUM/LONG
Ø170 D 440/535/550

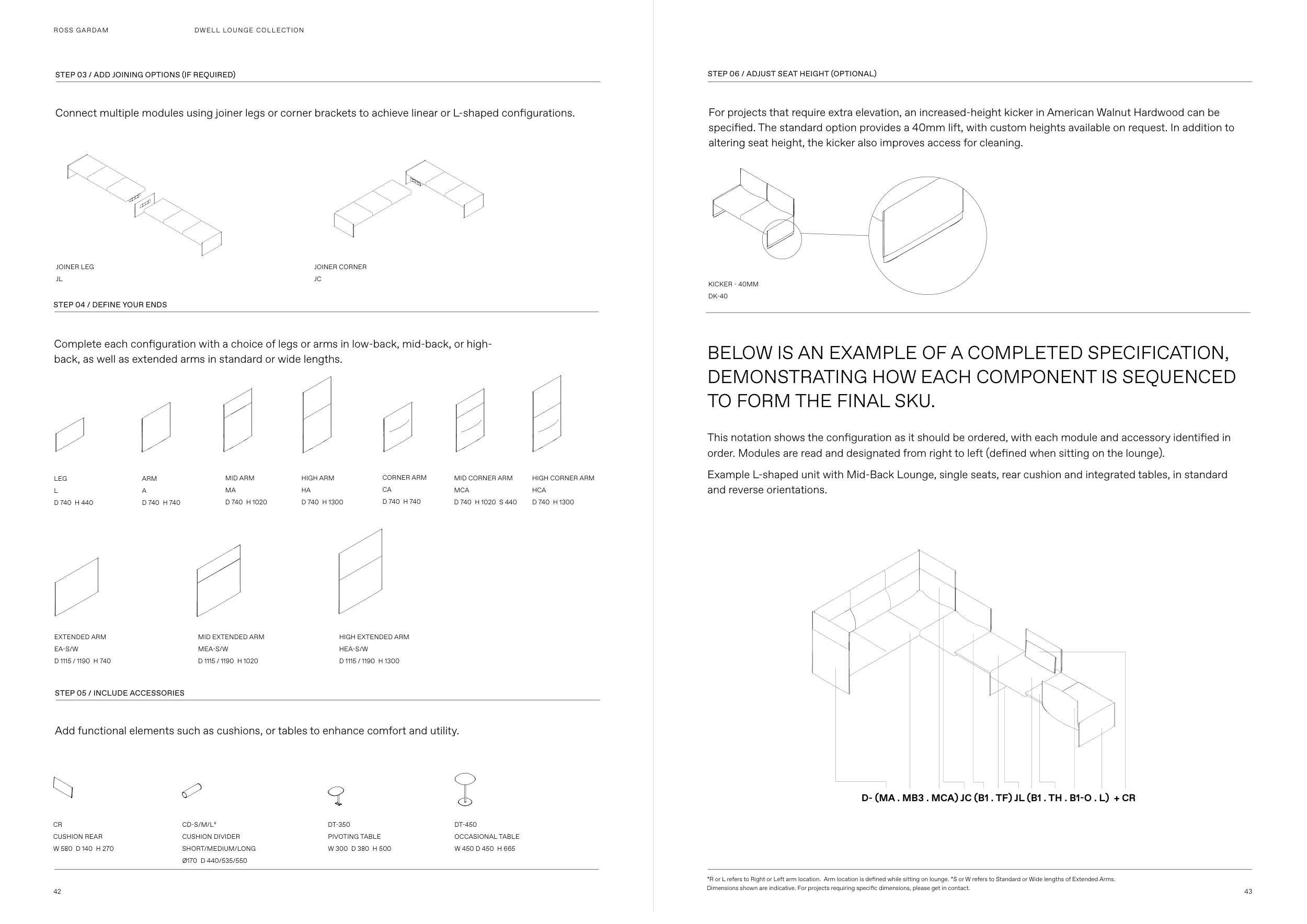

BELOW IS AN EXAMPLE OF A COMPLETED SPECIFICATION,
DEMONSTRATING HOW EACH COMPONENT IS SEQUENCED
TO FORM THE FINAL SKU.
This notation shows the configuration as it should be ordered, with each module and accessory identified in
order. Modules are read and designated from right to left (defined when sitting on the lounge).
Example L-shaped unit with Mid-Back Lounge, single seats, rear cushion and integrated tables, in standard
and reverse orientations.
MID ARM
MA
D 740 H 1020
HIGH ARM
HA
D 740 H 1300
CORNER ARM
CA
D 740 H 740
MID CORNER ARM
MCA
D 740 H 1020 S 440
HIGH CORNER ARM
HCA
D 740 H 1300
D- (MA . MB3 . MCA) JC (B1 . TF) JL (B1 . TH . B1-O . L) + CR
KICKER - 40MM
DK-40
Connect multiple modules using joiner legs or corner brackets to achieve linear or L-shaped configurations.
Complete each configuration with a choice of legs or arms in low-back, mid-back, or high-
back, as well as extended arms in standard or wide lengths.
Add functional elements such as cushions, or tables to enhance comfort and utility.
For projects that require extra elevation, an increased-height kicker in American Walnut Hardwood can be
specified. The standard option provides a 40mm lift, with custom heights available on request. In addition to
altering seat height, the kicker also improves access for cleaning.
ROSS GARDAM
STEP 03 / ADD JOINING OPTIONS (IF REQUIRED)
STEP 04 / DEFINE YOUR ENDS
STEP 05 / INCLUDE ACCESSORIES
STEP 06 / ADJUST SEAT HEIGHT (OPTIONAL)
