DWELL LOUNGE COLLECTION
R1
1 SEATER RAIL
W 660 D 660
MB2
W 1320 D 740 H 1020 S 440
MB1
W 660 D 740 H 1020 S 440
MB3
W 1980 D 740 H 1020 S 440
MID-BACKS
B2
W 1320 D 740 H 740 S 440
B3
W 1980 D 740 H 740 S 440
O1
W 660 D 660 H 440
O2
W 1320 D 660 H 440
O3
W 1980 D 660 H 440
HB2
W 1320 D 740 H 1300 S 440
HB3
W 1980 D 740 H 1300 S 440
SEATS
R1H
1.5 SEATER RAIL
W 990 D 660
R2
2 SEATER RAIL
W 1320 D 660
R2H
2.5 SEATER RAIL
W 1650 D 660
R3
3 SEATER RAIL
W 1980 D 660
R3H
3.5 SEATER RAIL
W 2310 D 660
R4
4 SEATER RAIL
W 2640 D 660
R4H
4.5 SEATER RAIL
W 2970 D 660
B1
W 660 D 740 H 740 S 440
O4
W 2640 D 660 H 440
HB1
W 660 D 740 H 1300 S 440
LOW-BACKS
HIGH-BACKS
INTEGRATED TABLES
TF
INTEGRATED TABLE
FULL
W 660 D 630 H 58
TH
INTEGRATED TABLE
HALF
W 330 D 630 H 58
TC
INTEGRATED TABLE
CORNER
W 660 D 645 H 58
*For all modules with backs to be assembled in a reverse orientation, please add “-O” after the module code.
B4
W 2640 D 740 H 740 S 440

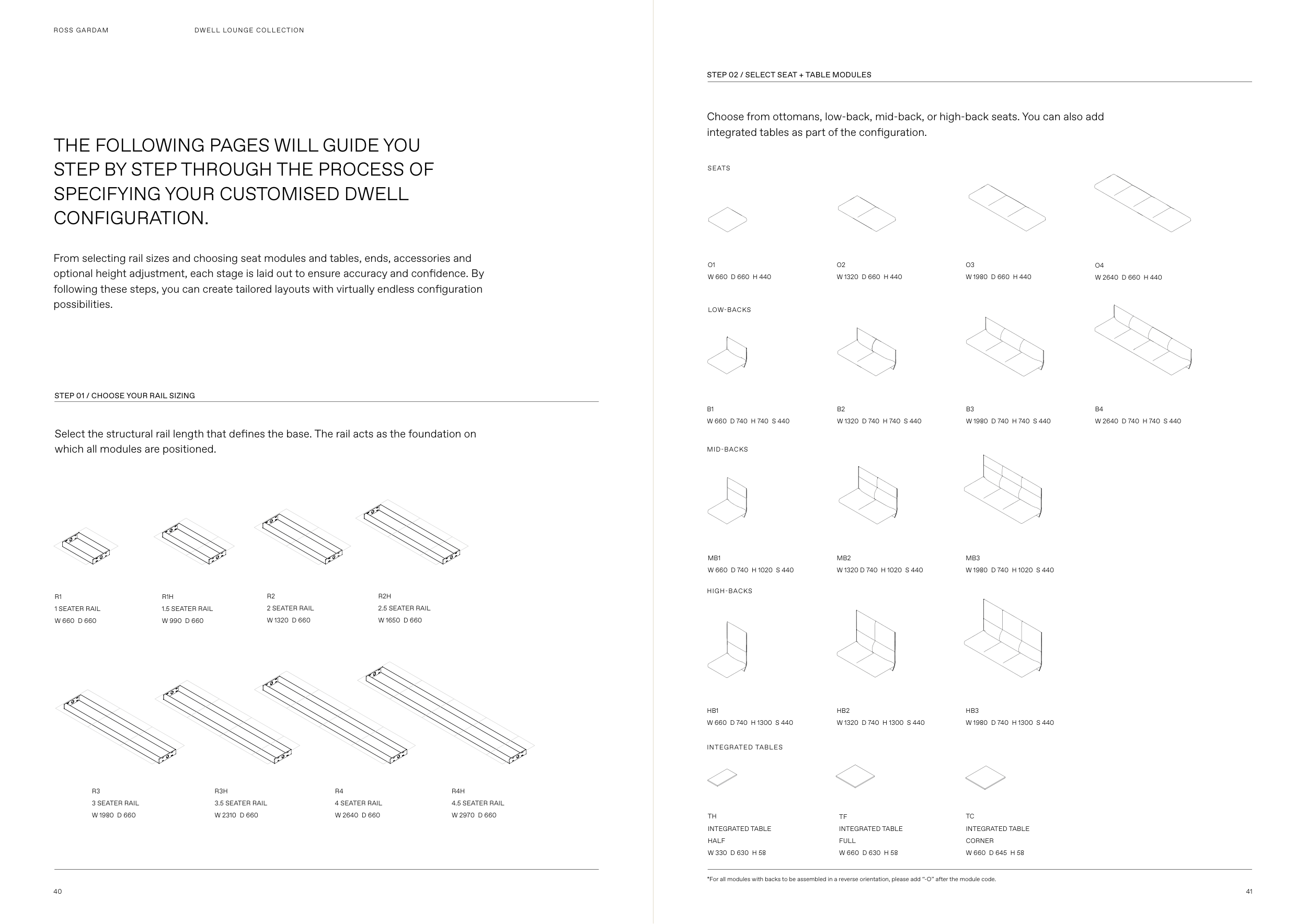

THE FOLLOWING PAGES WILL GUIDE YOU
STEP BY STEP THROUGH THE PROCESS OF
SPECIFYING YOUR CUSTOMISED DWELL
CONFIGURATION.
From selecting rail sizes and choosing seat modules and tables, ends, accessories and
optional height adjustment, each stage is laid out to ensure accuracy and confidence. By
following these steps, you can create tailored layouts with virtually endless configuration
possibilities.
Select the structural rail length that defines the base. The rail acts as the foundation on
which all modules are positioned.
Choose from ottomans, low-back, mid-back, or high-back seats. You can also add
integrated tables as part of the configuration.
ROSS GARDAM
STEP 01 / CHOOSE YOUR RAIL SIZING
STEP 02 / SELECT SEAT + TABLE MODULES
