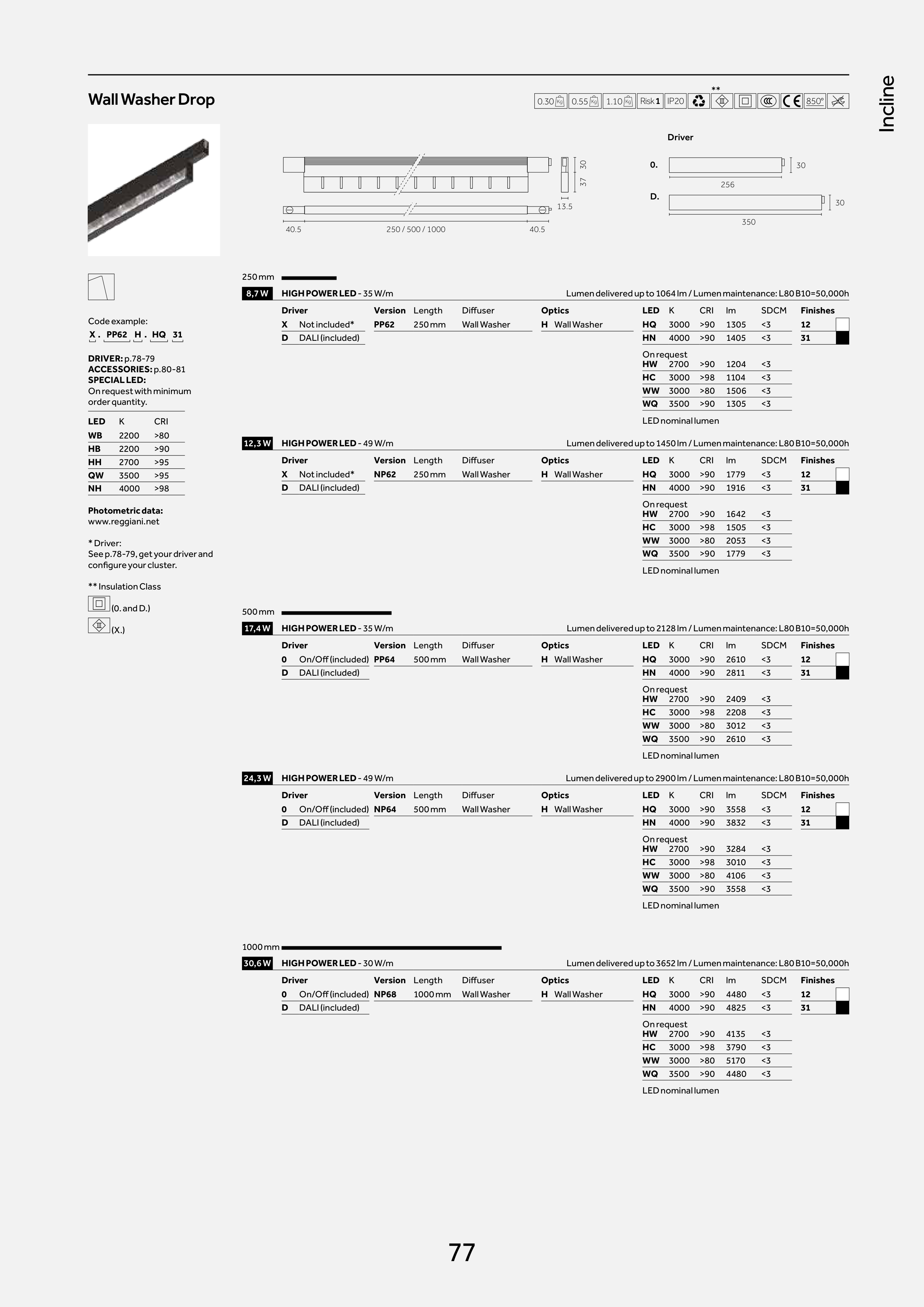

77
Incline
Wall Washer Drop
0.30 Kg 0.55 Kg 1.10 Kg Risk 1 IP20
850°
40.5
250 / 500 / 1000
40.5
30
37
13.5
250 mm
8,7 W
HIGH POWER LED - 35 W/m
Lumen delivered up to 1064 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included*
PP62
250 mm
Wall Washer
H Wall Washer
HQ
3000
>90
1305
<3
12
D
DALI (included)
HN
4000
>90
1405
<3
31
On request
HW
2700
>90
1204
<3
HC
3000
>98
1104
<3
WW
3000
>80
1506
<3
WQ
3500
>90
1305
<3
LED nominal lumen
12,3 W
HIGH POWER LED - 49 W/m
Lumen delivered up to 1450 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included*
NP62
250 mm
Wall Washer
H Wall Washer
HQ
3000
>90
1779
<3
12
D
DALI (included)
HN
4000
>90
1916
<3
31
On request
HW
2700
>90
1642
<3
HC
3000
>98
1505
<3
WW
3000
>80
2053
<3
WQ
3500
>90
1779
<3
LED nominal lumen
Code example:
X . PP62 H . HQ 31
DRIVER: p.78-79
ACCESSORIES: p.80-81
SPECIAL LED:
On request with minimum
order quantity.
Photometric data:
www.reggiani.net
* Driver:
See p.78-79, get your driver and
configure your cluster.
** Insulation Class
(0. and D.)
(X.)
LED
K
CRI
WB
2200
>80
HB
2200
>90
HH
2700
>95
QW
3500
>95
NH
4000
>98
**
500 mm
17,4 W
HIGH POWER LED - 35 W/m
Lumen delivered up to 2128 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On/Off (included) PP64
500 mm
Wall Washer
H Wall Washer
HQ
3000
>90
2610
<3
12
D
DALI (included)
HN
4000
>90
2811
<3
31
On request
HW
2700
>90
2409
<3
HC
3000
>98
2208
<3
WW
3000
>80
3012
<3
WQ
3500
>90
2610
<3
LED nominal lumen
24,3 W
HIGH POWER LED - 49 W/m
Lumen delivered up to 2900 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On/Off (included) NP64
500 mm
Wall Washer
H Wall Washer
HQ
3000
>90
3558
<3
12
D
DALI (included)
HN
4000
>90
3832
<3
31
On request
HW
2700
>90
3284
<3
HC
3000
>98
3010
<3
WW
3000
>80
4106
<3
WQ
3500
>90
3558
<3
LED nominal lumen
1000 mm
30,6 W
HIGH POWER LED - 30 W/m
Lumen delivered up to 3652 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On/Off (included) NP68
1000 mm
Wall Washer
H Wall Washer
HQ
3000
>90
4480
<3
12
D
DALI (included)
HN
4000
>90
4825
<3
31
On request
HW
2700
>90
4135
<3
HC
3000
>98
3790
<3
WW
3000
>80
5170
<3
WQ
3500
>90
4480
<3
LED nominal lumen
Driver
256
350
30
30
0.
D.
