70
Incline
9,5 W
MID POWER LED - 19 W/m
Lumen delivered up to 743 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Beam width
LED
K
CRI
lm
SDCM
Finishes
X
Not included*
BP63
500 mm
F
Opal 55%
114°
HQ
3000
>90
1684
<3
21
D
DALI (included)
HN
4000
>90
1814
<3
On request
HW
2700
>90
1555
<3
WW
3000
>80
1944
<3
WQ
3500
>90
1684
<3
LED nominal lumen

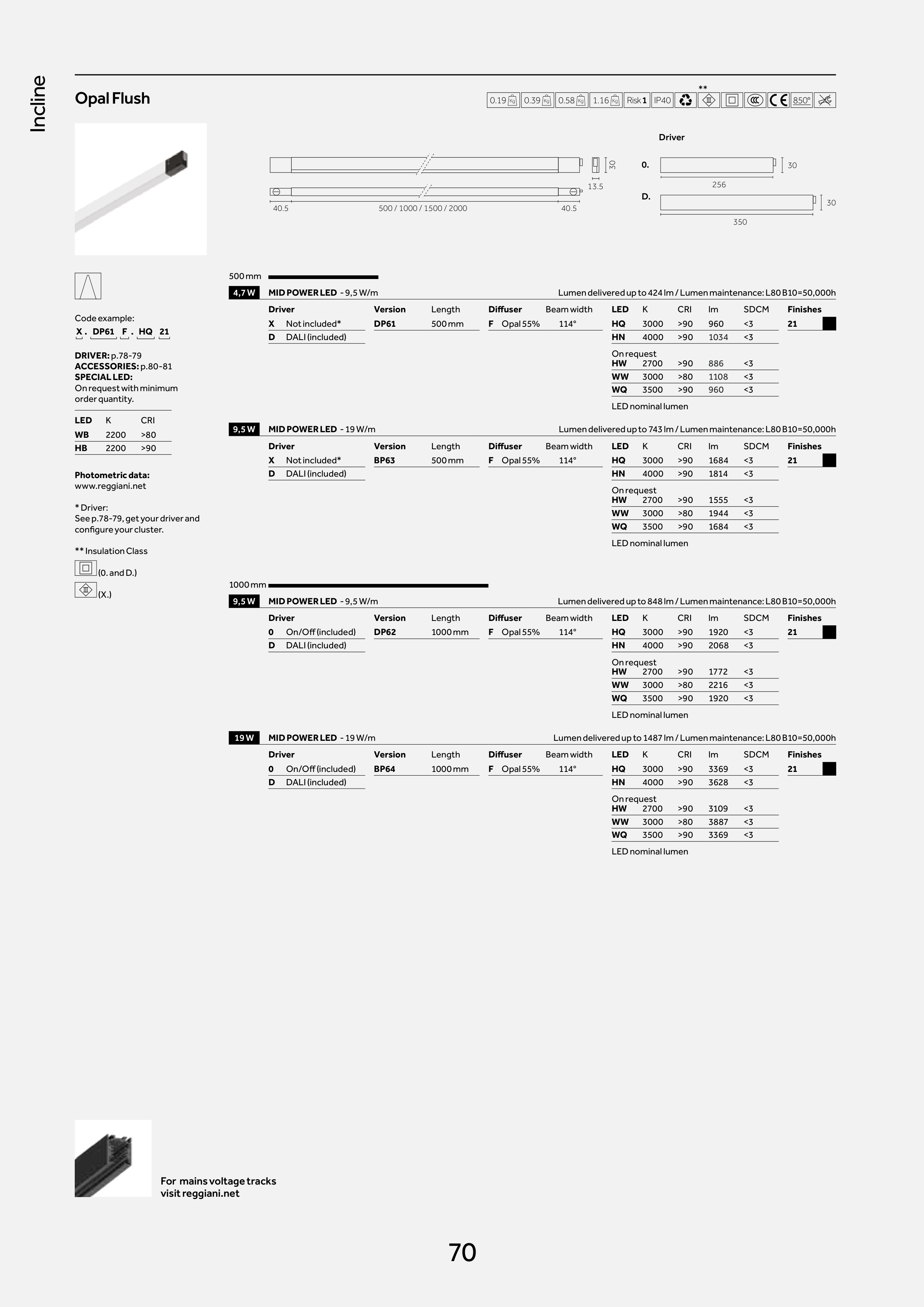

Opal Flush
0.19 Kg 0.39 Kg 0.58 Kg 1.16 Kg Risk 1 IP40
850°
40.5
500 / 1000 / 1500 / 2000
40.5
30
13.5
Code example:
X . DP61 F . HQ 21
DRIVER: p.78-79
ACCESSORIES: p.80-81
SPECIAL LED:
On request with minimum
order quantity.
Photometric data:
www.reggiani.net
* Driver:
See p.78-79, get your driver and
configure your cluster.
** Insulation Class
(0. and D.)
(X.)
500 mm
4,7 W
MID POWER LED - 9,5 W/m
Lumen delivered up to 424 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Beam width
LED
K
CRI
lm
SDCM
Finishes
X
Not included*
DP61
500 mm
F
Opal 55%
114°
HQ
3000
>90
960
<3
21
D
DALI (included)
HN
4000
>90
1034
<3
On request
HW
2700
>90
886
<3
WW
3000
>80
1108
<3
WQ
3500
>90
960
<3
LED nominal lumen
19 W
MID POWER LED - 19 W/m
Lumen delivered up to 1487 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Beam width
LED
K
CRI
lm
SDCM
Finishes
0
On/Off (included)
BP64
1000 mm
F
Opal 55%
114°
HQ
3000
>90
3369
<3
21
D
DALI (included)
HN
4000
>90
3628
<3
On request
HW
2700
>90
3109
<3
WW
3000
>80
3887
<3
WQ
3500
>90
3369
<3
LED nominal lumen
1000 mm
9,5 W
MID POWER LED - 9,5 W/m
Lumen delivered up to 848 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Beam width
LED
K
CRI
lm
SDCM
Finishes
0
On/Off (included)
DP62
1000 mm
F
Opal 55%
114°
HQ
3000
>90
1920
<3
21
D
DALI (included)
HN
4000
>90
2068
<3
On request
HW
2700
>90
1772
<3
WW
3000
>80
2216
<3
WQ
3500
>90
1920
<3
LED nominal lumen
LED
K
CRI
WB
2200
>80
HB
2200
>90
Driver
256
350
30
30
0.
D.
**
For mains voltage tracks
visit reggiani.net
