FEATURES
Power (W)
30 - 20
Light beam
Spot - Medium - Wide
Color temperature
2700K, 3000K, 3500K, 4000K
CRI
80, 90, 97, CRIMAX
Luminaire body
Steel sheet
Light sources
LED
Finishing
White, Grey, Custom powder coat
Power supply
Electronic constant current LED driver, 120V/277V 60Hz
Dimming
Phase cut dimming

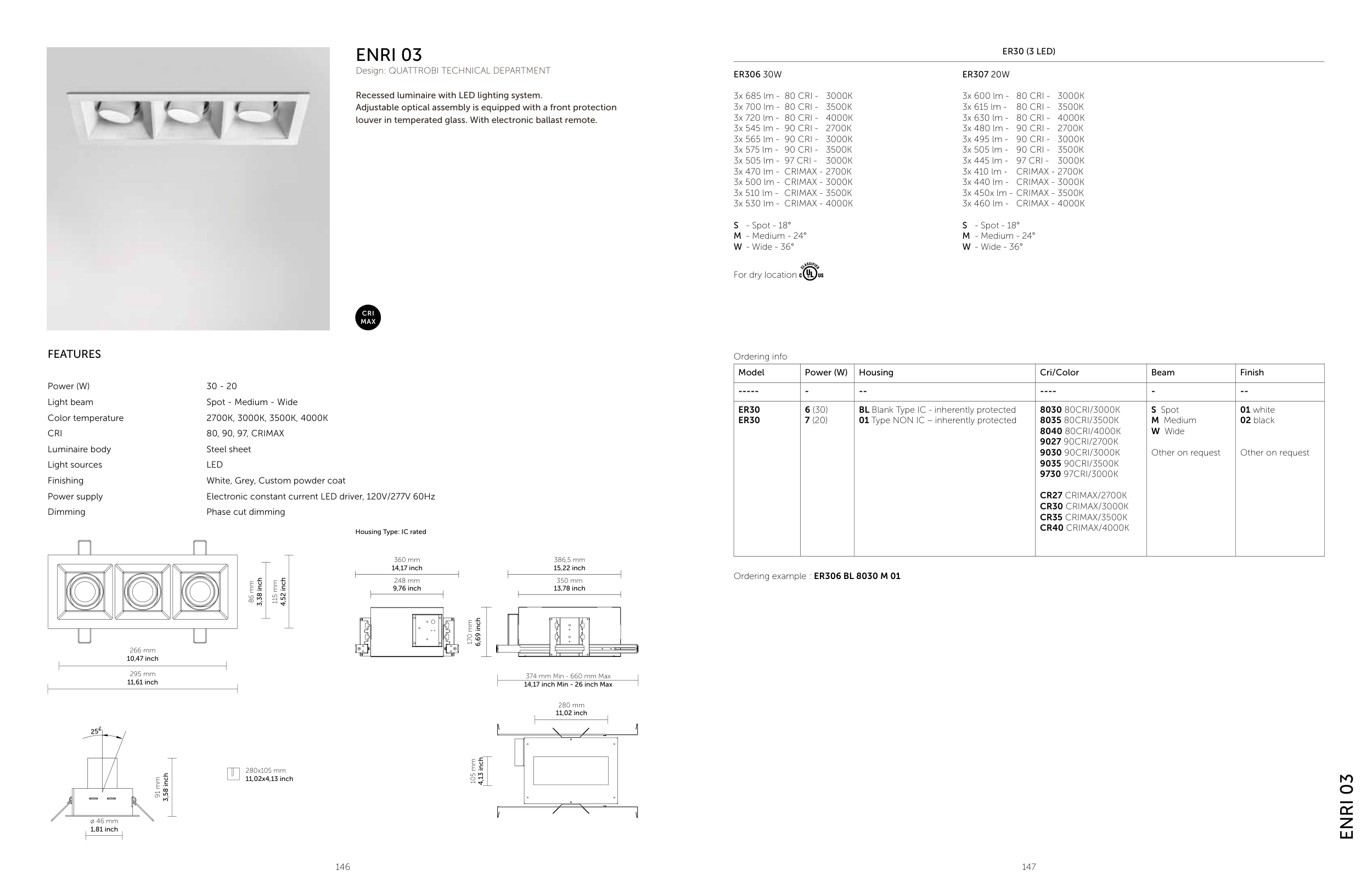

ENRI 03
Design: QUATTROBI TECHNICAL DEPARTMENT
Recessed luminaire with LED lighting system.
Adjustable optical assembly is equipped with a front protection
louver in temperated glass. With electronic ballast remote.
ENRI 03
ER306 30W
3x 685 lm - 80 CRI - 3000K
3x 700 lm - 80 CRI - 3500K
3x 720 lm - 80 CRI - 4000K
3x 545 lm - 90 CRI - 2700K
3x 565 lm - 90 CRI - 3000K
3x 575 lm - 90 CRI - 3500K
3x 505 lm - 97 CRI - 3000K
3x 470 lm - CRIMAX - 2700K
3x 500 lm - CRIMAX - 3000K
3x 510 lm - CRIMAX - 3500K
3x 530 lm - CRIMAX - 4000K
S - Spot - 18°
M - Medium - 24°
W - Wide - 36°
For dry location
ER307 20W
3x 600 lm - 80 CRI - 3000K
3x 615 lm - 80 CRI - 3500K
3x 630 lm - 80 CRI - 4000K
3x 480 lm - 90 CRI - 2700K
3x 495 lm - 90 CRI - 3000K
3x 505 lm - 90 CRI - 3500K
3x 445 lm - 97 CRI - 3000K
3x 410 lm - CRIMAX - 2700K
3x 440 lm - CRIMAX - 3000K
3x 450x lm - CRIMAX - 3500K
3x 460 lm - CRIMAX - 4000K
S - Spot - 18°
M - Medium - 24°
W - Wide - 36°
Ordering info
Model
Power (W)
Housing
Cri/Color
Beam
Finish
-----
-
--
----
-
--
ER30
ER30
6 (30)
7 (20)
BL Blank Type IC - inherently protected
01 Type NON IC – inherently protected
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
S Spot
M Medium
W Wide
Other on request
01 white
02 black
Other on request
Ordering example : ER306 BL 8030 M 01
CRI
MAX
266 mm
10,47 inch
ø 46 mm
1,81 inch
25°
86 mm
3,38 inch
295 mm
11,61 inch
115 mm
4,52 inch
280x105 mm
11,02x4,13 inch
91 mm
3,58 inch
280 mm
11,02 inch
105 mm
4,13 inch
374 mm Min - 660 mm Max
14,17 inch Min - 26 inch Max
170 mm
6,69 inch
360 mm
14,17 inch
386,5 mm
15,22 inch
248 mm
9,76 inch
350 mm
13,78 inch
ER30 (3 LED)
Housing Type: IC rated
