FEATURES
Power (W)
11 - 10 - 7
Light beam
Spot - Medium - Wide
Color temperature
2700K, 3000K, 3500K, 4000K
CRI
80, 90, 97, CRIMAX
Luminaire body
Steel sheet
Light sources
LED
Finishing
White, Grey, Custom powder coat
Power supply
Electronic constant current LED driver, 120V/277V 60Hz
Dimming
Phase cut dimming

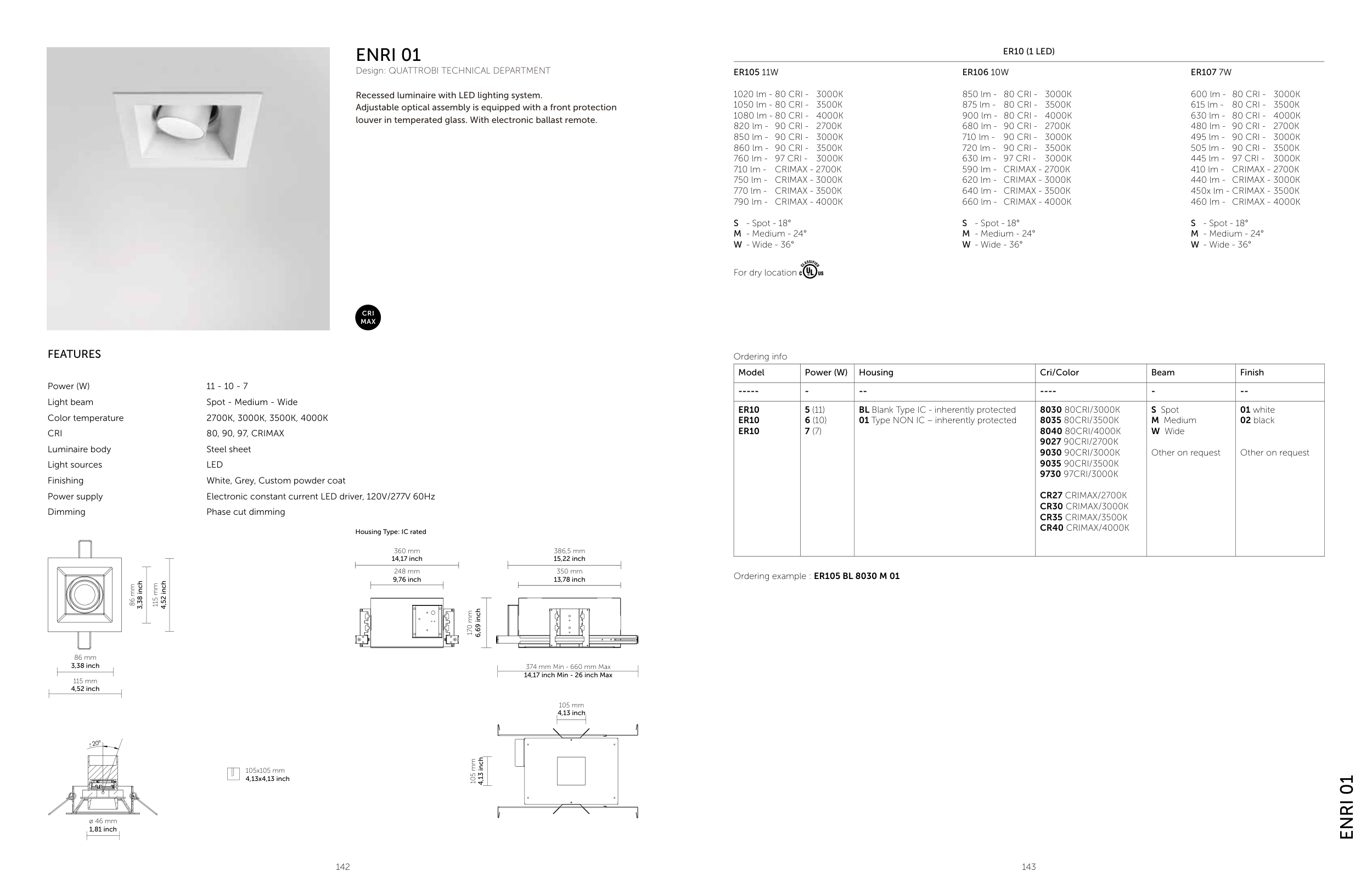

ENRI 01
Design: QUATTROBI TECHNICAL DEPARTMENT
Recessed luminaire with LED lighting system.
Adjustable optical assembly is equipped with a front protection
louver in temperated glass. With electronic ballast remote.
ENRI 01
ER105 11W
1020 lm - 80 CRI - 3000K
1050 lm - 80 CRI - 3500K
1080 lm - 80 CRI - 4000K
820 lm - 90 CRI - 2700K
850 lm - 90 CRI - 3000K
860 lm - 90 CRI - 3500K
760 lm - 97 CRI - 3000K
710 lm - CRIMAX - 2700K
750 lm - CRIMAX - 3000K
770 lm - CRIMAX - 3500K
790 lm - CRIMAX - 4000K
S - Spot - 18°
M - Medium - 24°
W - Wide - 36°
For dry location
ER106 10W
850 lm - 80 CRI - 3000K
875 lm - 80 CRI - 3500K
900 lm - 80 CRI - 4000K
680 lm - 90 CRI - 2700K
710 lm - 90 CRI - 3000K
720 lm - 90 CRI - 3500K
630 lm - 97 CRI - 3000K
590 lm - CRIMAX - 2700K
620 lm - CRIMAX - 3000K
640 lm - CRIMAX - 3500K
660 lm - CRIMAX - 4000K
S - Spot - 18°
M - Medium - 24°
W - Wide - 36°
ER107 7W
600 lm - 80 CRI - 3000K
615 lm - 80 CRI - 3500K
630 lm - 80 CRI - 4000K
480 lm - 90 CRI - 2700K
495 lm - 90 CRI - 3000K
505 lm - 90 CRI - 3500K
445 lm - 97 CRI - 3000K
410 lm - CRIMAX - 2700K
440 lm - CRIMAX - 3000K
450x lm - CRIMAX - 3500K
460 lm - CRIMAX - 4000K
S - Spot - 18°
M - Medium - 24°
W - Wide - 36°
Ordering info
Model
Power (W)
Housing
Cri/Color
Beam
Finish
-----
-
--
----
-
--
ER10
ER10
ER10
5 (11)
6 (10)
7 (7)
BL Blank Type IC - inherently protected
01 Type NON IC – inherently protected
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
S Spot
M Medium
W Wide
Other on request
01 white
02 black
Other on request
Ordering example : ER105 BL 8030 M 01
CRI
MAX
ø 46 mm
1,81 inch
105 mm
4,13 inch
105 mm
4,13 inch
20°
105x105 mm
4,13x4,13 inch
374 mm Min - 660 mm Max
14,17 inch Min - 26 inch Max
170 mm
6,69 inch
360 mm
14,17 inch
386,5 mm
15,22 inch
248 mm
9,76 inch
350 mm
13,78 inch
86 mm
3,38 inch
86 mm
3,38 inch
115 mm
4,52 inch
115 mm
4,52 inch
ER10 (1 LED)
Housing Type: IC rated
