FEATURES
Total fixture Watts
17
Light beam (°)
Spot - Medium - Wide
Installation
Recessed
Luminaire housing
Die-cast aluminium
Protective screen
Polycarbonate
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V/277V 60Hz
Dimming
Phase cut dimming (TRIAC/ELV) 120V only

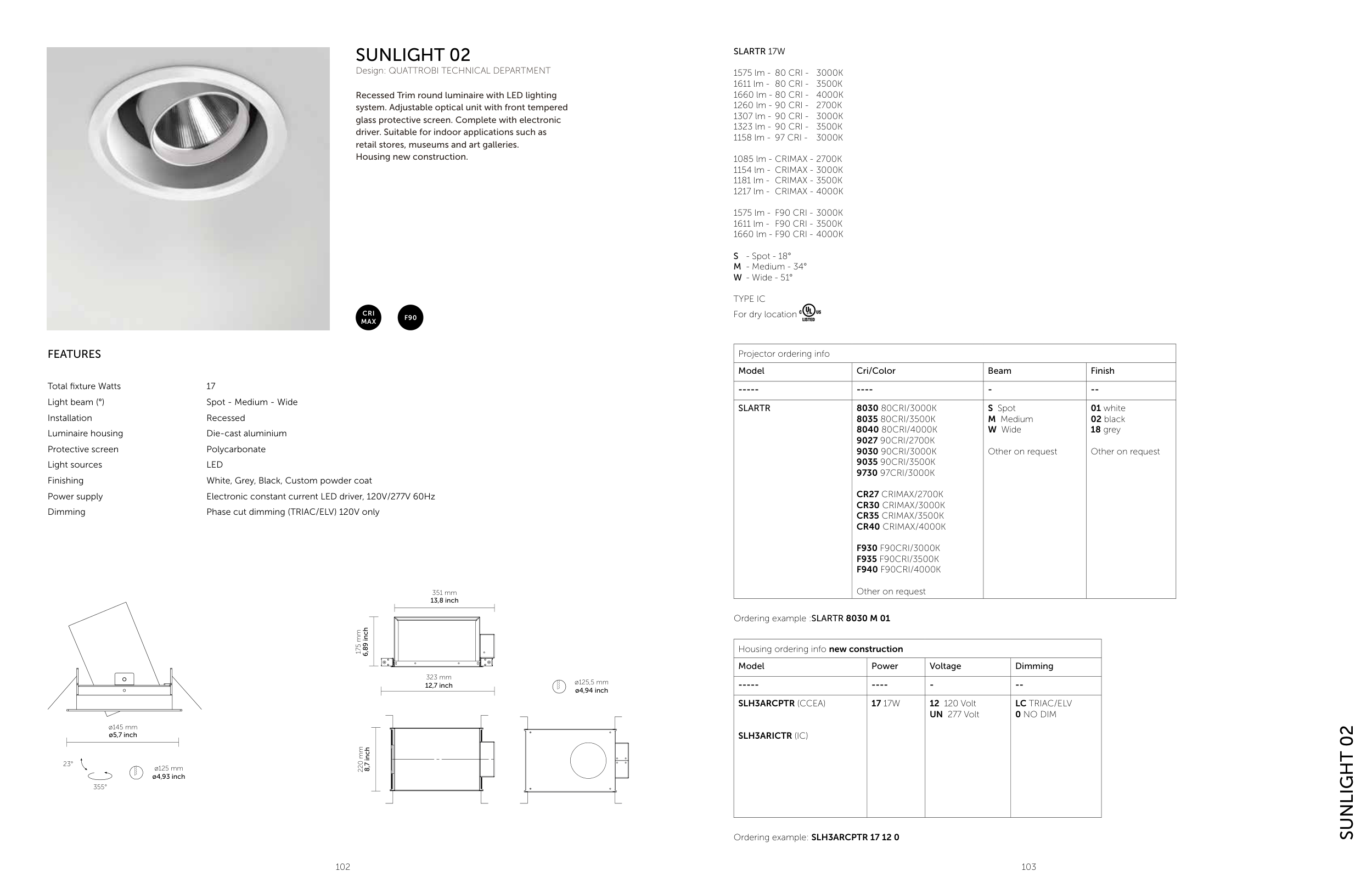

SUNLIGHT 02
Design: QUATTROBI TECHNICAL DEPARTMENT
Recessed Trim round luminaire with LED lighting
system. Adjustable optical unit with front tempered
glass protective screen. Complete with electronic
driver. Suitable for indoor applications such as
retail stores, museums and art galleries.
Housing new construction.
ø125 mm
ø4,93 inch
ø145 mm
ø5,7 inch
355°
23°
ø125,5 mm
ø4,94 inch
351 mm
13,8 inch
323 mm
12,7 inch
175 mm
6,89 inch
220 mm
8,7 inch
SUNLIGHT 02
Housing ordering info new construction
Model
Power
Voltage
Dimming
-----
----
-
--
SLH3ARCPTR (CCEA)
SLH3ARICTR (IC)
17 17W
12 120 Volt
UN 277 Volt
LC TRIAC/ELV
0 NO DIM
Ordering example: SLH3ARCPTR 17 12 0
F90
CRI
MAX
SLARTR 17W
1575 lm - 80 CRI - 3000K
1611 lm - 80 CRI - 3500K
1660 lm - 80 CRI - 4000K
1260 lm - 90 CRI - 2700K
1307 lm - 90 CRI - 3000K
1323 lm - 90 CRI - 3500K
1158 lm - 97 CRI - 3000K
1085 lm - CRIMAX - 2700K
1154 lm - CRIMAX - 3000K
1181 lm - CRIMAX - 3500K
1217 lm - CRIMAX - 4000K
1575 lm - F90 CRI - 3000K
1611 lm - F90 CRI - 3500K
1660 lm - F90 CRI - 4000K
S - Spot - 18°
M - Medium - 34°
W - Wide - 51°
TYPE IC
For dry location
Projector ordering info
Model
Cri/Color
Beam
Finish
-----
----
-
--
SLARTR
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
Other on request
S Spot
M Medium
W Wide
Other on request
01 white
02 black
18 grey
Other on request
Ordering example :SLARTR 8030 M 01
