FEATURES
Power (W)
15 - 26
Light beam (°)
Spot - Medium - Wide
Installation
Recessed
Luminaire housing
Aluminium alloys
Protective screen
Tempered glass
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V 60Hz
Dimming
Phase cut dimming

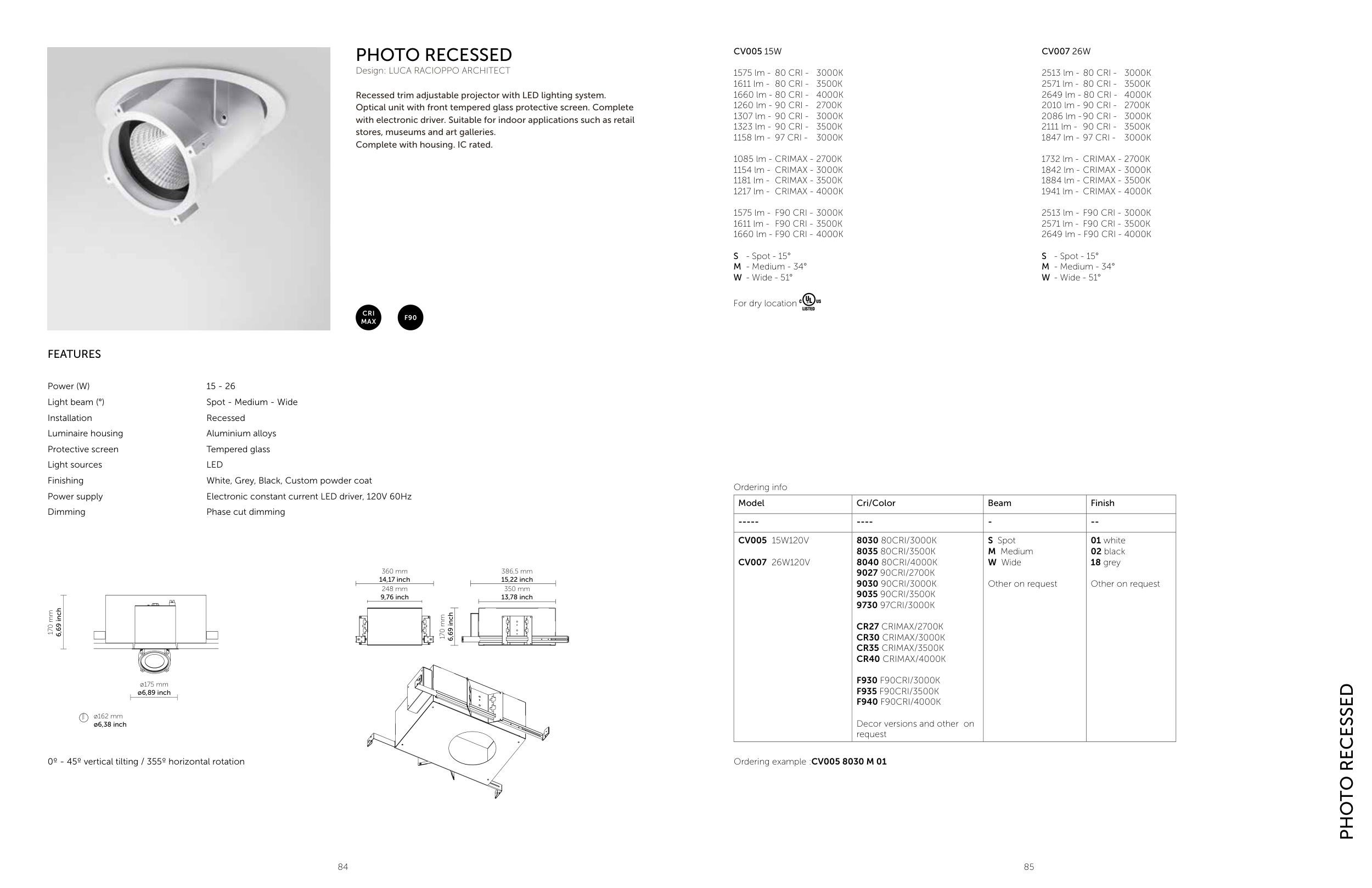

PHOTO RECESSED
Design: LUCA RACIOPPO ARCHITECT
Recessed trim adjustable projector with LED lighting system.
Optical unit with front tempered glass protective screen. Complete
with electronic driver. Suitable for indoor applications such as retail
stores, museums and art galleries.
Complete with housing. IC rated.
0º - 45º vertical tilting / 355º horizontal rotation
ø175 mm
ø6,89 inch
170 mm
6,69 inch
ø162 mm
ø6,38 inch
PHOTO RECESSED
CV005 15W
1575 lm - 80 CRI - 3000K
1611 lm - 80 CRI - 3500K
1660 lm - 80 CRI - 4000K
1260 lm - 90 CRI - 2700K
1307 lm - 90 CRI - 3000K
1323 lm - 90 CRI - 3500K
1158 lm - 97 CRI - 3000K
1085 lm - CRIMAX - 2700K
1154 lm - CRIMAX - 3000K
1181 lm - CRIMAX - 3500K
1217 lm - CRIMAX - 4000K
1575 lm - F90 CRI - 3000K
1611 lm - F90 CRI - 3500K
1660 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
For dry location
CV007 26W
2513 lm - 80 CRI - 3000K
2571 lm - 80 CRI - 3500K
2649 lm - 80 CRI - 4000K
2010 lm - 90 CRI - 2700K
2086 lm - 90 CRI - 3000K
2111 lm - 90 CRI - 3500K
1847 lm - 97 CRI - 3000K
1732 lm - CRIMAX - 2700K
1842 lm - CRIMAX - 3000K
1884 lm - CRIMAX - 3500K
1941 lm - CRIMAX - 4000K
2513 lm - F90 CRI - 3000K
2571 lm - F90 CRI - 3500K
2649 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
Ordering info
Model
Cri/Color
Beam
Finish
-----
----
-
--
CV005 15W120V
CV007 26W120V
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
Decor versions and other on
request
S Spot
M Medium
W Wide
Other on request
01 white
02 black
18 grey
Other on request
Ordering example :CV005 8030 M 01
F90
CRI
MAX
360 mm
14,17 inch
386,5 mm
15,22 inch
170 mm
6,69 inch
248 mm
9,76 inch
350 mm
13,78 inch
