FEATURES
Power (W)
26 - 40
Light beam (°)
Spot - Medium - Wide
Installation
Track ; G version Global(*) GES compatible ; X version - Global(*) XTS compatible
Luminaire housing
Aluminium alloys
Protective screen
Tempered glass
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V 60Hz
Dimming
Phase cut dimming

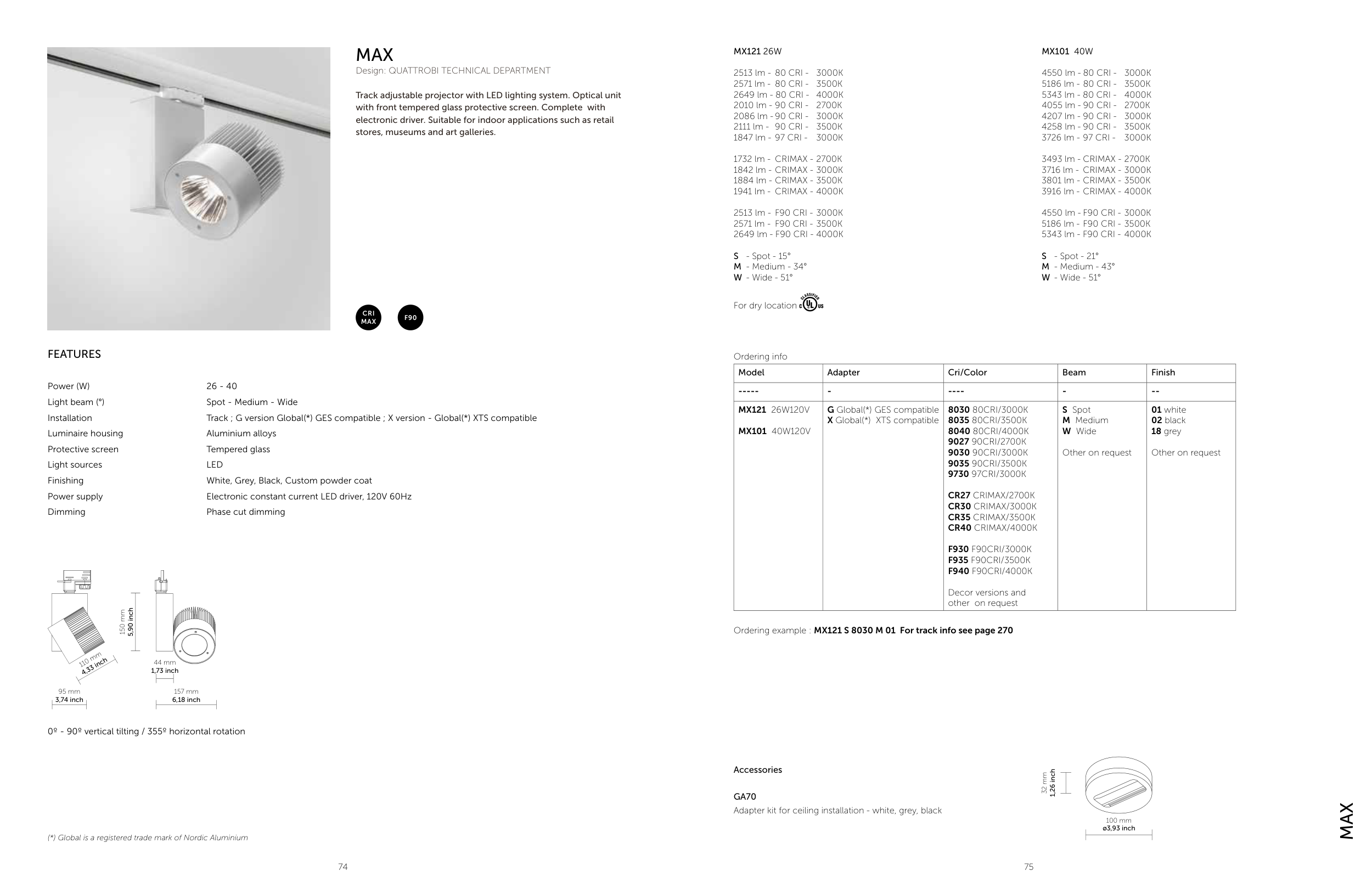

MAX
Design: QUATTROBI TECHNICAL DEPARTMENT
Track adjustable projector with LED lighting system. Optical unit
with front tempered glass protective screen. Complete with
electronic driver. Suitable for indoor applications such as retail
stores, museums and art galleries.
(*) Global is a registered trade mark of Nordic Aluminium
0º - 90º vertical tilting / 355º horizontal rotation
95 mm
3,74 inch
110 mm
4,33 inch
157 mm
6,18 inch
150 mm
5,90 inch
44 mm
1,73 inch
MAX
MX121 26W
2513 lm - 80 CRI - 3000K
2571 lm - 80 CRI - 3500K
2649 lm - 80 CRI - 4000K
2010 lm - 90 CRI - 2700K
2086 lm - 90 CRI - 3000K
2111 lm - 90 CRI - 3500K
1847 lm - 97 CRI - 3000K
1732 lm - CRIMAX - 2700K
1842 lm - CRIMAX - 3000K
1884 lm - CRIMAX - 3500K
1941 lm - CRIMAX - 4000K
2513 lm - F90 CRI - 3000K
2571 lm - F90 CRI - 3500K
2649 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
For dry location
MX101 40W
4550 lm - 80 CRI - 3000K
5186 lm - 80 CRI - 3500K
5343 lm - 80 CRI - 4000K
4055 lm - 90 CRI - 2700K
4207 lm - 90 CRI - 3000K
4258 lm - 90 CRI - 3500K
3726 lm - 97 CRI - 3000K
3493 lm - CRIMAX - 2700K
3716 lm - CRIMAX - 3000K
3801 lm - CRIMAX - 3500K
3916 lm - CRIMAX - 4000K
4550 lm - F90 CRI - 3000K
5186 lm - F90 CRI - 3500K
5343 lm - F90 CRI - 4000K
S - Spot - 21°
M - Medium - 43°
W - Wide - 51°
Accessories
GA70
Adapter kit for ceiling installation - white, grey, black
100 mm
ø3,93 inch
32 mm
1,26 inch
Ordering info
Model
Adapter
Cri/Color
Beam
Finish
-----
-
----
-
--
MX121 26W120V
MX101 40W120V
G Global(*) GES compatible
X Global(*) XTS compatible
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
Decor versions and
other on request
S Spot
M Medium
W Wide
Other on request
01 white
02 black
18 grey
Other on request
Ordering example : MX121 S 8030 M 01 For track info see page 270
