FEATURES
Power (W)
15 - 26 - 35
Light beam (°)
Spot - Medium - Wide
Installation
Recessed
Luminaire housing
Alloys aluminium
Protective screen
Tempered glass
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V 60Hz
Dimming
Phase cut dimming

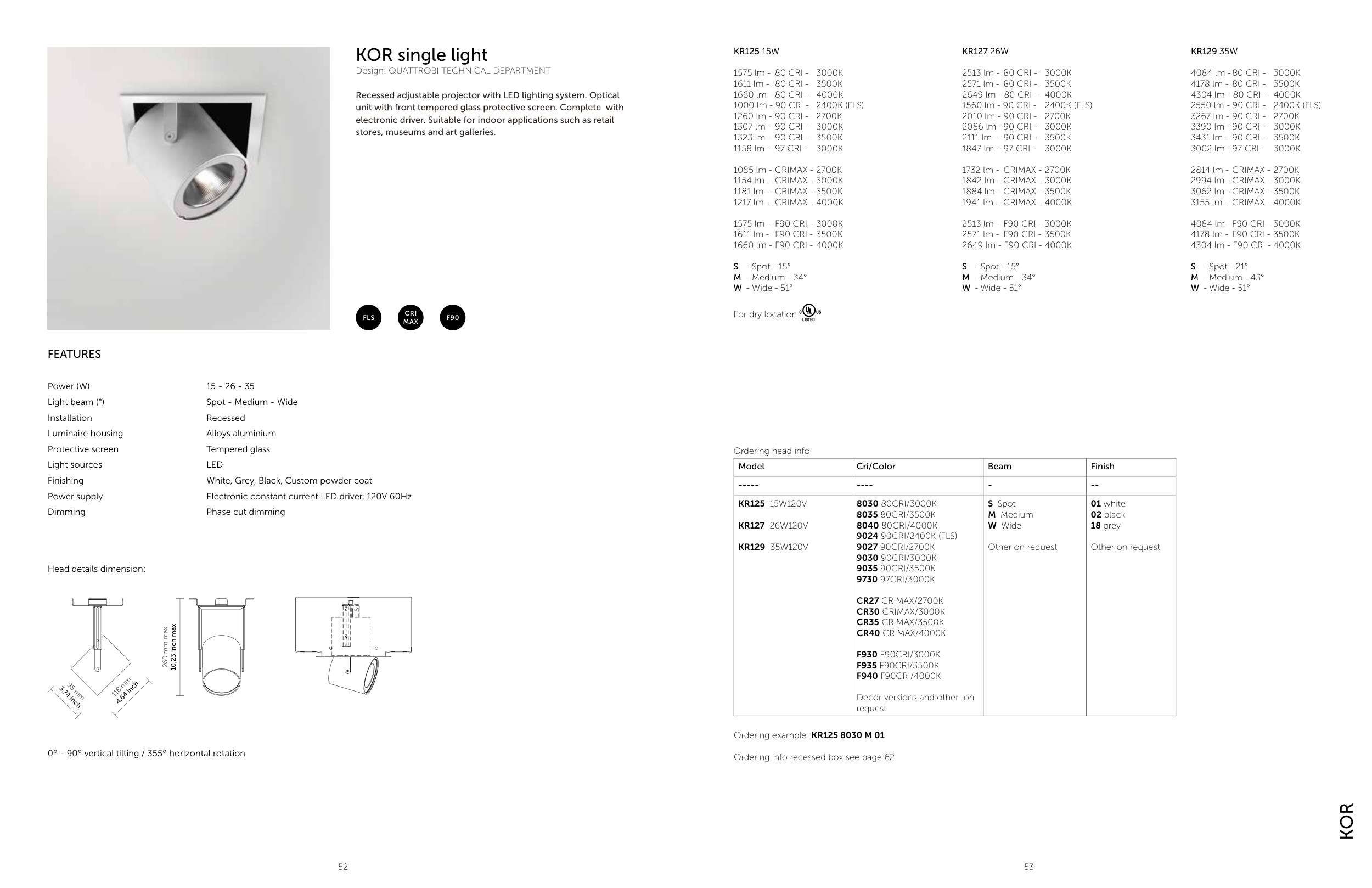

KOR single light
Design: QUATTROBI TECHNICAL DEPARTMENT
Recessed adjustable projector with LED lighting system. Optical
unit with front tempered glass protective screen. Complete with
electronic driver. Suitable for indoor applications such as retail
stores, museums and art galleries.
0º - 90º vertical tilting / 355º horizontal rotation
Head details dimension:
KOR
KR125 15W
1575 lm - 80 CRI - 3000K
1611 lm - 80 CRI - 3500K
1660 lm - 80 CRI - 4000K
1000 lm - 90 CRI - 2400K (FLS)
1260 lm - 90 CRI - 2700K
1307 lm - 90 CRI - 3000K
1323 lm - 90 CRI - 3500K
1158 lm - 97 CRI - 3000K
1085 lm - CRIMAX - 2700K
1154 lm - CRIMAX - 3000K
1181 lm - CRIMAX - 3500K
1217 lm - CRIMAX - 4000K
1575 lm - F90 CRI - 3000K
1611 lm - F90 CRI - 3500K
1660 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
For dry location
KR129 35W
4084 lm - 80 CRI - 3000K
4178 lm - 80 CRI - 3500K
4304 lm - 80 CRI - 4000K
2550 lm - 90 CRI - 2400K (FLS)
3267 lm - 90 CRI - 2700K
3390 lm - 90 CRI - 3000K
3431 lm - 90 CRI - 3500K
3002 lm - 97 CRI - 3000K
2814 lm - CRIMAX - 2700K
2994 lm - CRIMAX - 3000K
3062 lm - CRIMAX - 3500K
3155 lm - CRIMAX - 4000K
4084 lm - F90 CRI - 3000K
4178 lm - F90 CRI - 3500K
4304 lm - F90 CRI - 4000K
S - Spot - 21°
M - Medium - 43°
W - Wide - 51°
KR127 26W
2513 lm - 80 CRI - 3000K
2571 lm - 80 CRI - 3500K
2649 lm - 80 CRI - 4000K
1560 lm - 90 CRI - 2400K (FLS)
2010 lm - 90 CRI - 2700K
2086 lm - 90 CRI - 3000K
2111 lm - 90 CRI - 3500K
1847 lm - 97 CRI - 3000K
1732 lm - CRIMAX - 2700K
1842 lm - CRIMAX - 3000K
1884 lm - CRIMAX - 3500K
1941 lm - CRIMAX - 4000K
2513 lm - F90 CRI - 3000K
2571 lm - F90 CRI - 3500K
2649 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
Ordering head info
Model
Cri/Color
Beam
Finish
-----
----
-
--
KR125 15W120V
KR127 26W120V
KR129 35W120V
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9024 90CRI/2400K (FLS)
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
Decor versions and other on
request
S Spot
M Medium
W Wide
Other on request
01 white
02 black
18 grey
Other on request
Ordering example :KR125 8030 M 01
Ordering info recessed box see page 62
FLS
F90
CRI
MAX
260 mm max
10,23 inch max
118 mm
4,64 inch
95 mm
3,74 inch
