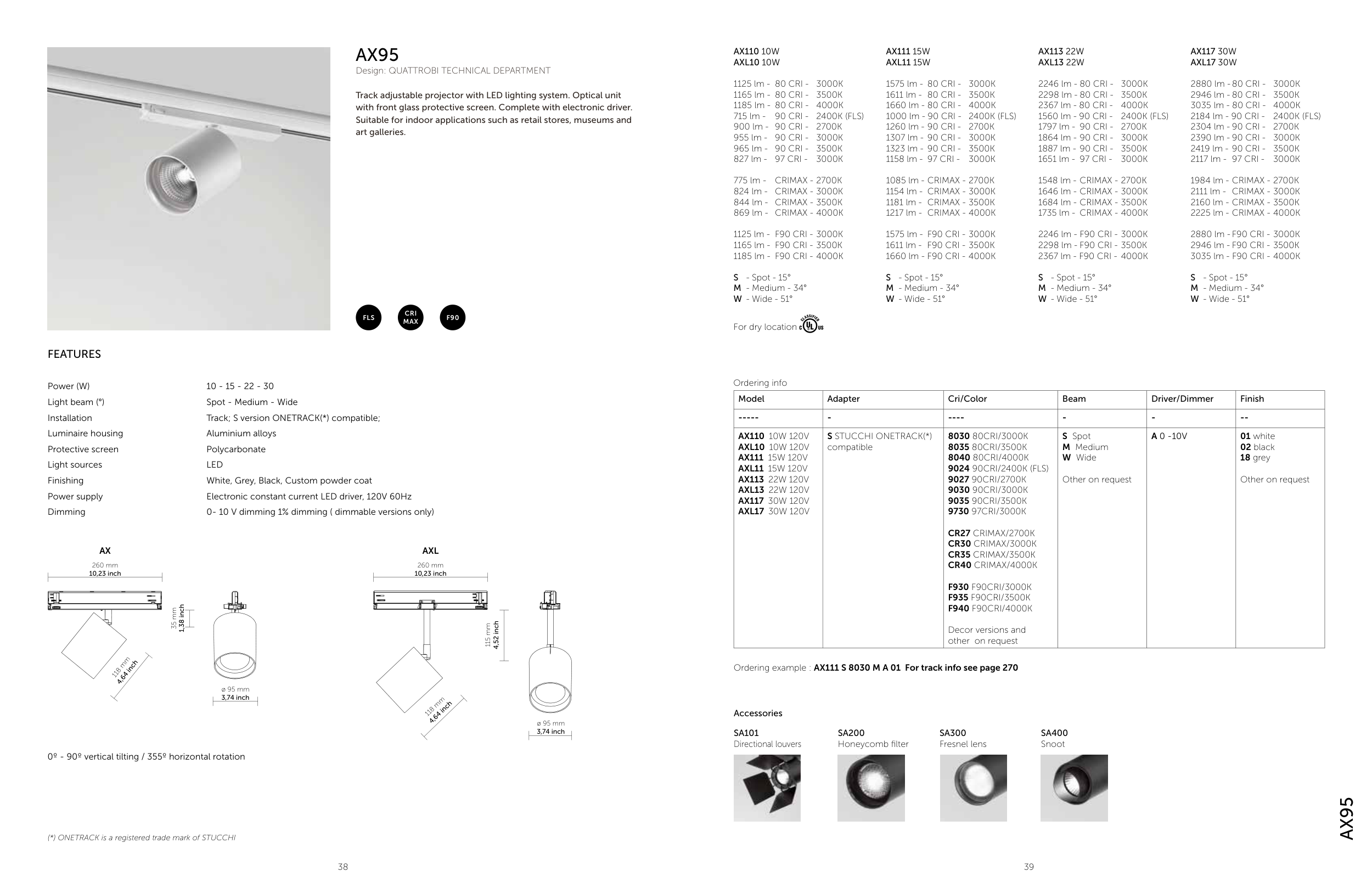

AX95
Design: QUATTROBI TECHNICAL DEPARTMENT
Track adjustable projector with LED lighting system. Optical unit
with front glass protective screen. Complete with electronic driver.
Suitable for indoor applications such as retail stores, museums and
art galleries.
FEATURES
Power (W)
10 - 15 - 22 - 30
Light beam (°)
Spot - Medium - Wide
Installation
Track; S version ONETRACK(*) compatible;
Luminaire housing
Aluminium alloys
Protective screen
Polycarbonate
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V 60Hz
Dimming
0- 10 V dimming 1% dimming ( dimmable versions only)
(*) ONETRACK is a registered trade mark of STUCCHI
0º - 90º vertical tilting / 355º horizontal rotation
118 mm
4,64 inch
118 mm
4,64 inch
260 mm
10,23 inch
260 mm
10,23 inch
ø 95 mm
3,74 inch
35 mm
1,38 inch
115 mm
4,52 inch
ø 95 mm
3,74 inch
AX95
AX110 10W
AXL10 10W
1125 lm - 80 CRI - 3000K
1165 lm - 80 CRI - 3500K
1185 lm - 80 CRI - 4000K
715 lm - 90 CRI - 2400K (FLS)
900 lm - 90 CRI - 2700K
955 lm - 90 CRI - 3000K
965 lm - 90 CRI - 3500K
827 lm - 97 CRI - 3000K
775 lm - CRIMAX - 2700K
824 lm - CRIMAX - 3000K
844 lm - CRIMAX - 3500K
869 lm - CRIMAX - 4000K
1125 lm - F90 CRI - 3000K
1165 lm - F90 CRI - 3500K
1185 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
For dry location
AX111 15W
AXL11 15W
1575 lm - 80 CRI - 3000K
1611 lm - 80 CRI - 3500K
1660 lm - 80 CRI - 4000K
1000 lm - 90 CRI - 2400K (FLS)
1260 lm - 90 CRI - 2700K
1307 lm - 90 CRI - 3000K
1323 lm - 90 CRI - 3500K
1158 lm - 97 CRI - 3000K
1085 lm - CRIMAX - 2700K
1154 lm - CRIMAX - 3000K
1181 lm - CRIMAX - 3500K
1217 lm - CRIMAX - 4000K
1575 lm - F90 CRI - 3000K
1611 lm - F90 CRI - 3500K
1660 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
AX113 22W
AXL13 22W
2246 lm - 80 CRI - 3000K
2298 lm - 80 CRI - 3500K
2367 lm - 80 CRI - 4000K
1560 lm - 90 CRI - 2400K (FLS)
1797 lm - 90 CRI - 2700K
1864 lm - 90 CRI - 3000K
1887 lm - 90 CRI - 3500K
1651 lm - 97 CRI - 3000K
1548 lm - CRIMAX - 2700K
1646 lm - CRIMAX - 3000K
1684 lm - CRIMAX - 3500K
1735 lm - CRIMAX - 4000K
2246 lm - F90 CRI - 3000K
2298 lm - F90 CRI - 3500K
2367 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
AX117 30W
AXL17 30W
2880 lm - 80 CRI - 3000K
2946 lm - 80 CRI - 3500K
3035 lm - 80 CRI - 4000K
2184 lm - 90 CRI - 2400K (FLS)
2304 lm - 90 CRI - 2700K
2390 lm - 90 CRI - 3000K
2419 lm - 90 CRI - 3500K
2117 lm - 97 CRI - 3000K
1984 lm - CRIMAX - 2700K
2111 lm - CRIMAX - 3000K
2160 lm - CRIMAX - 3500K
2225 lm - CRIMAX - 4000K
2880 lm - F90 CRI - 3000K
2946 lm - F90 CRI - 3500K
3035 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
Ordering info
Model
Adapter
Cri/Color
Beam
Driver/Dimmer
Finish
-----
-
----
-
-
--
AX110 10W 120V
AXL10 10W 120V
AX111 15W 120V
AXL11 15W 120V
AX113 22W 120V
AXL13 22W 120V
AX117 30W 120V
AXL17 30W 120V
S STUCCHI ONETRACK(*)
compatible
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9024 90CRI/2400K (FLS)
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
Decor versions and
other on request
S Spot
M Medium
W Wide
Other on request
A 0 -10V
01 white
02 black
18 grey
Other on request
Ordering example : AX111 S 8030 M A 01 For track info see page 270
