FEATURES
Installation
Suspended / Surface / Recessed
Luminaire housing
Extruded aluminum
Finishing
White, Grey, Black

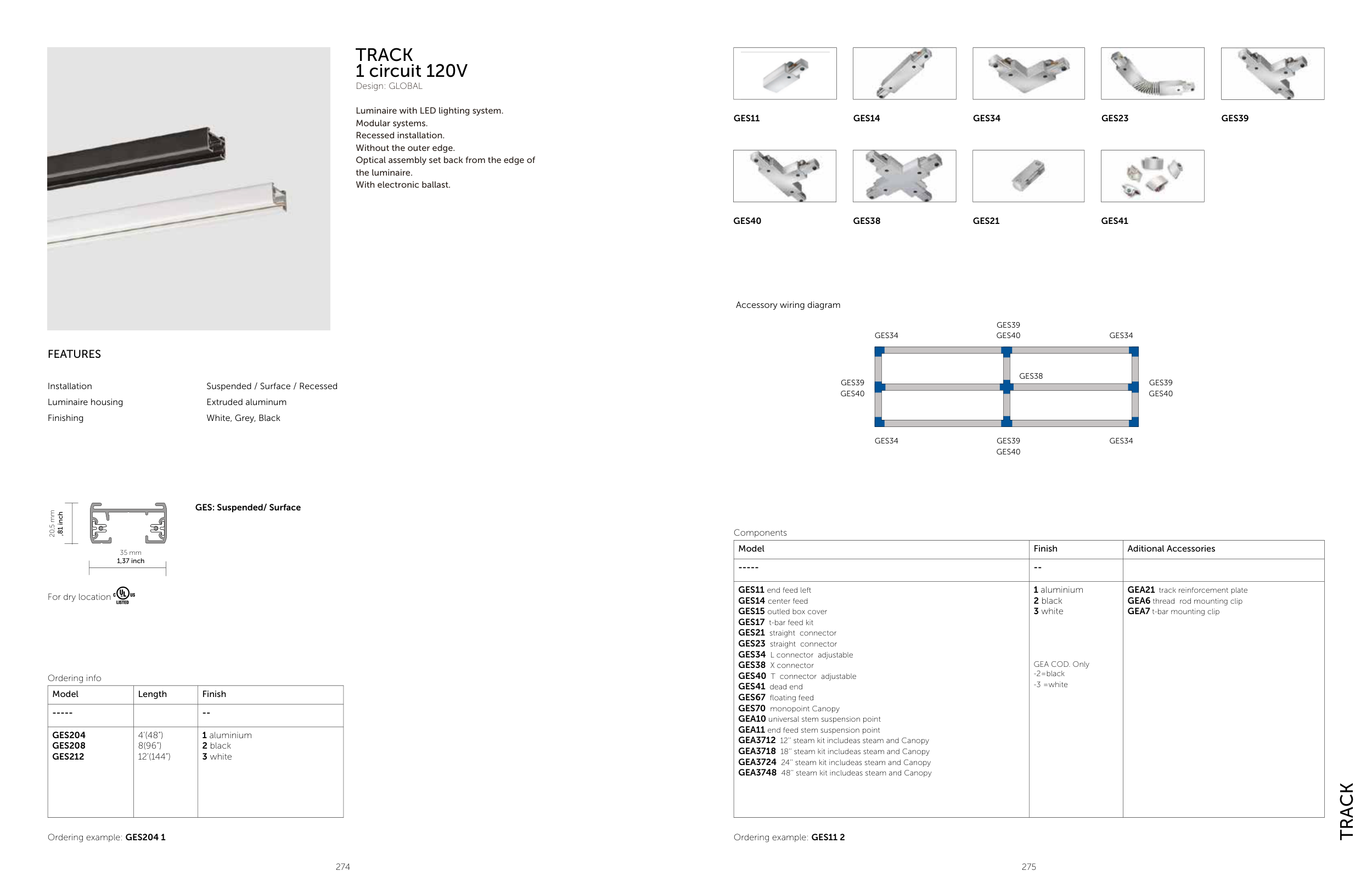

TRACK
1 circuit 120V
Design: GLOBAL
Luminaire with LED lighting system.
Modular systems.
Recessed installation.
Without the outer edge.
Optical assembly set back from the edge of
the luminaire.
With electronic ballast.
20,5 mm
,81 inch
35 mm
1,37 inch
GES: Suspended/ Surface
Ordering info
Model
Length
Finish
-----
--
GES204
GES208
GES212
4’(48”)
8(96”)
12’(144”)
1 aluminium
2 black
3 white
Ordering example: GES204 1
For dry location
TRACK
Components
Model
Finish
Aditional Accessories
-----
--
GES11 end feed left
GES14 center feed
GES15 outled box cover
GES17 t-bar feed kit
GES21 straight connector
GES23 straight connector
GES34 L connector adjustable
GES38 X connector
GES40 T connector adjustable
GES41 dead end
GES67 floating feed
GES70 monopoint Canopy
GEA10 universal stem suspension point
GEA11 end feed stem suspension point
GEA3712 12’’ steam kit includeas steam and Canopy
GEA3718 18’’ steam kit includeas steam and Canopy
GEA3724 24’’ steam kit includeas steam and Canopy
GEA3748 48’’ steam kit includeas steam and Canopy
1 aluminium
2 black
3 white
GEA COD. Only
-2=black
-3 =white
GEA21 track reinforcement plate
GEA6 thread rod mounting clip
GEA7 t-bar mounting clip
Ordering example: GES11 2
GES11
GES39
GES40
GES14
GES38
GES34
GES21
GES23
GES41
Accessory wiring diagram
GES34
GES40
GES40
GES40
GES40
GES39
GES39
GES38
GES39
GES39
GES34
GES34
GES34
