FEATURES
Installation
Suspended / Surface / Recessed
Luminaire housing
Extruded aluminum
Finishing
White, Grey, Black

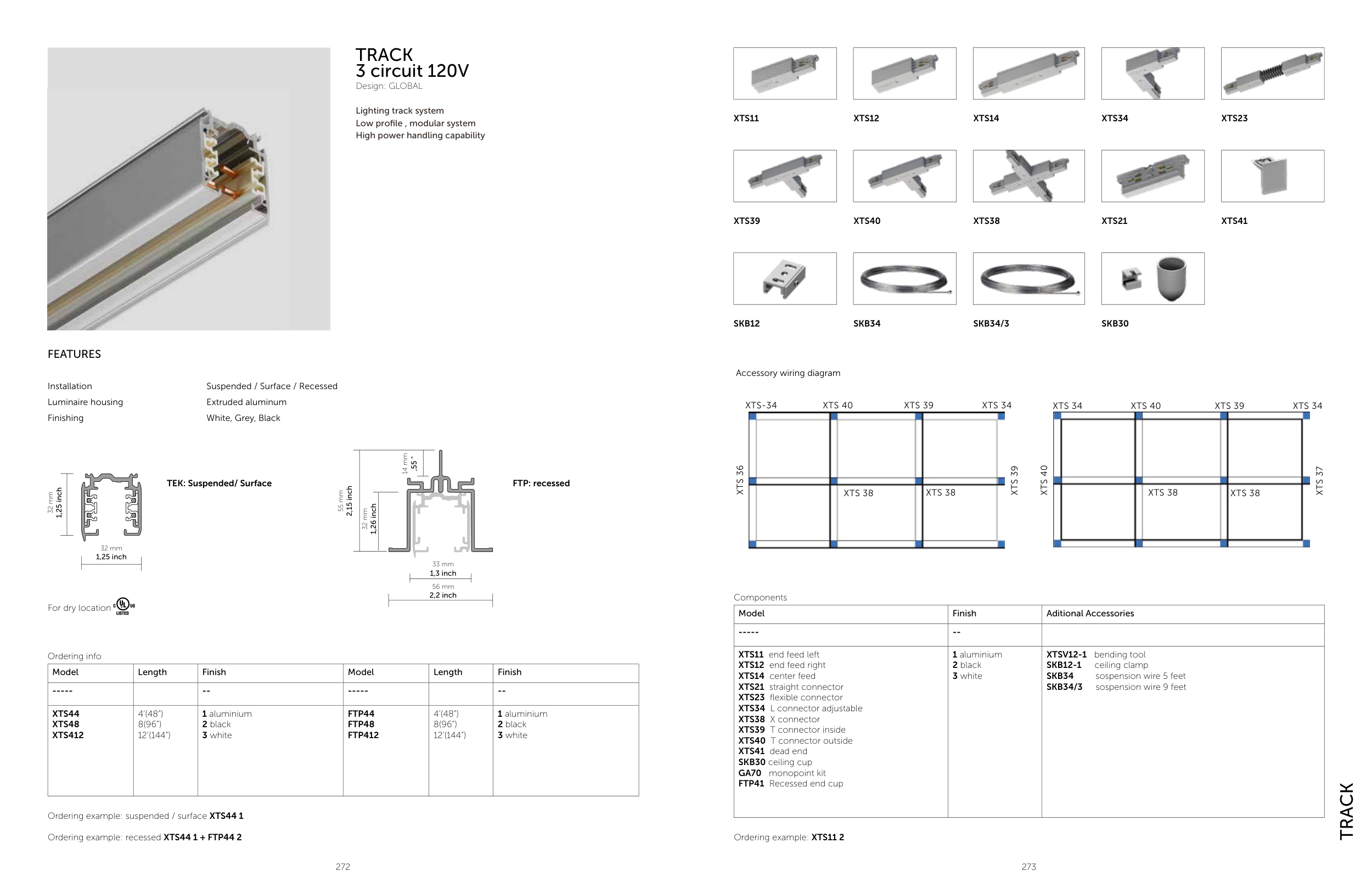

TRACK
3 circuit 120V
Design: GLOBAL
Lighting track system
Low profile , modular system
High power handling capability
Ordering info
Model
Length
Finish
Model
Length
Finish
-----
--
-----
--
XTS44
XTS48
XTS412
4’(48”)
8(96”)
12’(144”)
1 aluminium
2 black
3 white
FTP44
FTP48
FTP412
4’(48”)
8(96”)
12’(144”)
1 aluminium
2 black
3 white
Ordering example: suspended / surface XTS44 1
Ordering example: recessed XTS44 1 + FTP44 2
TEK: Suspended/ Surface
FTP: recessed
For dry location
32 mm
1,25 inch
32 mm
1,25 inch
55 mm
2,15 inch
14 mm
,55 "
32 mm
1,26 inch
56 mm
2,2 inch
33 mm
1,3 inch
TRACK
Components
Model
Finish
Aditional Accessories
-----
--
XTS11 end feed left
XTS12 end feed right
XTS14 center feed
XTS21 straight connector
XTS23 flexible connector
XTS34 L connector adjustable
XTS38 X connector
XTS39 T connector inside
XTS40 T connector outside
XTS41 dead end
SKB30 ceiling cup
GA70 monopoint kit
FTP41 Recessed end cup
1 aluminium
2 black
3 white
XTSV12-1 bending tool
SKB12-1 ceiling clamp
SKB34 sospension wire 5 feet
SKB34/3 sospension wire 9 feet
Ordering example: XTS11 2
XTS11
XTS39
SKB12
XTS12
XTS40
SKB34
XTS14
XTS38
SKB34/3
XTS34
XTS21
SKB30
XTS23
XTS41
Accessory wiring diagram
XTS-34 XTS 40 XTS 39 XTS 34
XTS-34 XTS 39 XTS 40 XTS 34
XTS 36
XTS 38
XTS 38
XTS 38
XTS 38
XTS 39
XTS 34 XTS 39 XTS 40 XTS 34
XTS 37
XTS 40
RIDGE-ON-INSIDE-OF-GRID
RIDGE-ON-OUTSIDE-OF-GRID
XTS 34 XTS 40 XTS 39 XTS 34
