FEATURES
Installation
Suspended / Surface / Recessed
Luminaire housing
Extruded aluminum
Finishing
White, Grey, Black

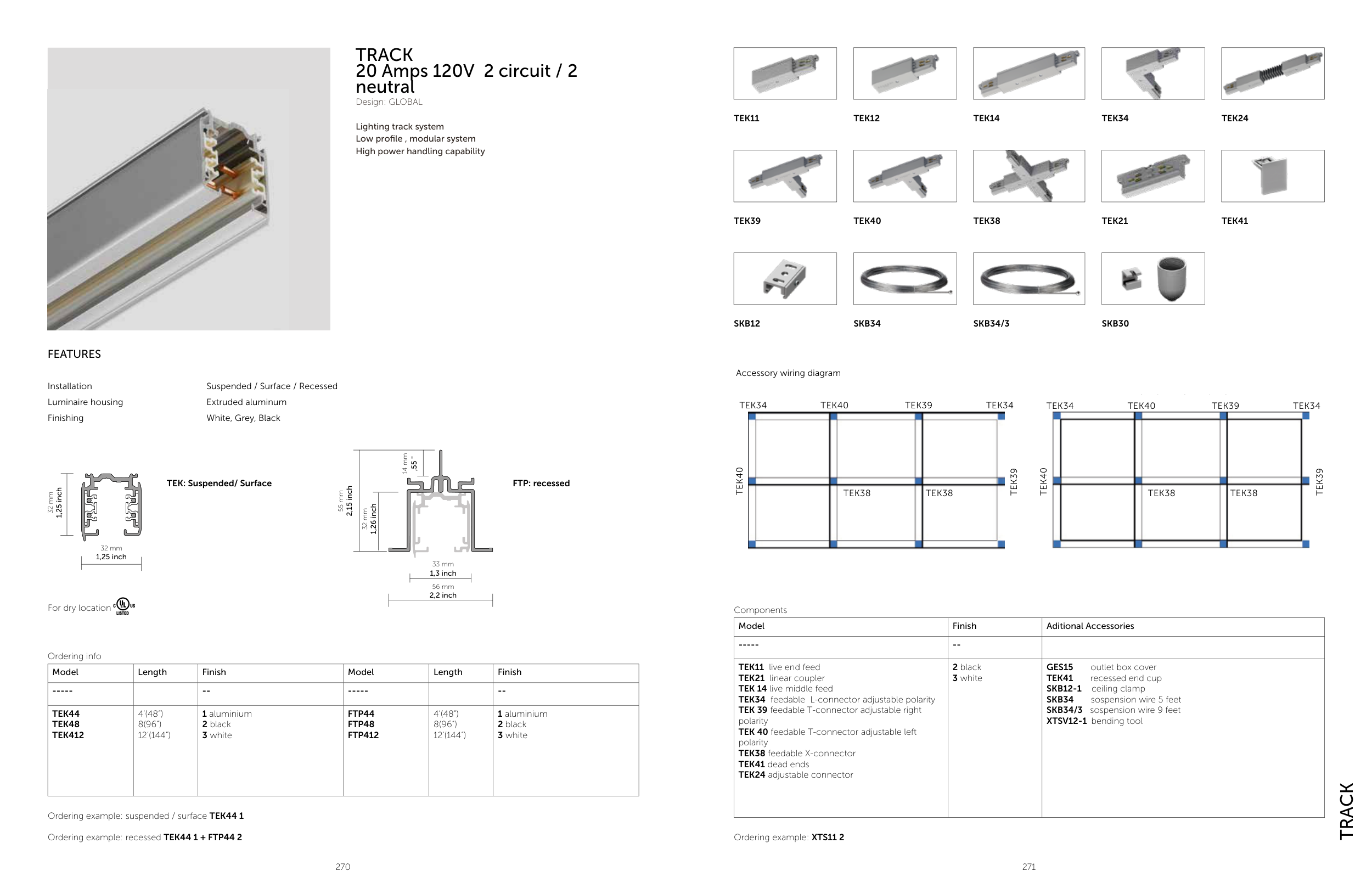

TRACK
20 Amps 120V 2 circuit / 2
neutral
Design: GLOBAL
Lighting track system
Low profile , modular system
High power handling capability
Ordering info
Model
Length
Finish
Model
Length
Finish
-----
--
-----
--
TEK44
TEK48
TEK412
4’(48”)
8(96”)
12’(144”)
1 aluminium
2 black
3 white
FTP44
FTP48
FTP412
4’(48”)
8(96”)
12’(144”)
1 aluminium
2 black
3 white
Ordering example: suspended / surface TEK44 1
Ordering example: recessed TEK44 1 + FTP44 2
TEK: Suspended/ Surface
FTP: recessed
For dry location
32 mm
1,25 inch
32 mm
1,25 inch
55 mm
2,15 inch
14 mm
,55 "
32 mm
1,26 inch
56 mm
2,2 inch
33 mm
1,3 inch
TRACK
Components
Model
Finish
Aditional Accessories
-----
--
TEK11 live end feed
TEK21 linear coupler
TEK 14 live middle feed
TEK34 feedable L-connector adjustable polarity
TEK 39 feedable T-connector adjustable right
polarity
TEK 40 feedable T-connector adjustable left
polarity
TEK38 feedable X-connector
TEK41 dead ends
TEK24 adjustable connector
2 black
3 white
GES15 outlet box cover
TEK41 recessed end cup
SKB12-1 ceiling clamp
SKB34 sospension wire 5 feet
SKB34/3 sospension wire 9 feet
XTSV12-1 bending tool
Ordering example: XTS11 2
TEK11
TEK39
SKB12
TEK12
TEK40
SKB34
TEK14
TEK38
SKB34/3
TEK34
TEK21
SKB30
TEK24
TEK41
Accessory wiring diagram
TEK34 TEK40 TEK39 TEK34
TEK34 TEK39 TEK40 TEK34
TEK40
TEK38
TEK38
TEK38
TEK38
TEK39
TEK34 TEK39 TEK40 TEK34
TEK39
TEK40
RIDGE-ON-INSIDE-OF-GRID
RIDGE-ON-OUTSIDE-OF-GRID
TEK34 TEK40 TEK39 TEK34
