FEATURES
Power (W)
20 - 30 - 40 - 50
Lens
SL Polycarbonate satin lens - PL Polycarbonate prismatic lens
Installation
Trimless recessed
Luminaire housing
Extruded aluminum
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V - 277V 50-60Hz
Dimming
0- 10 V dimming 1%
Emergency circuit via remote inverter or auxiliary emergency power supply (not included) on request

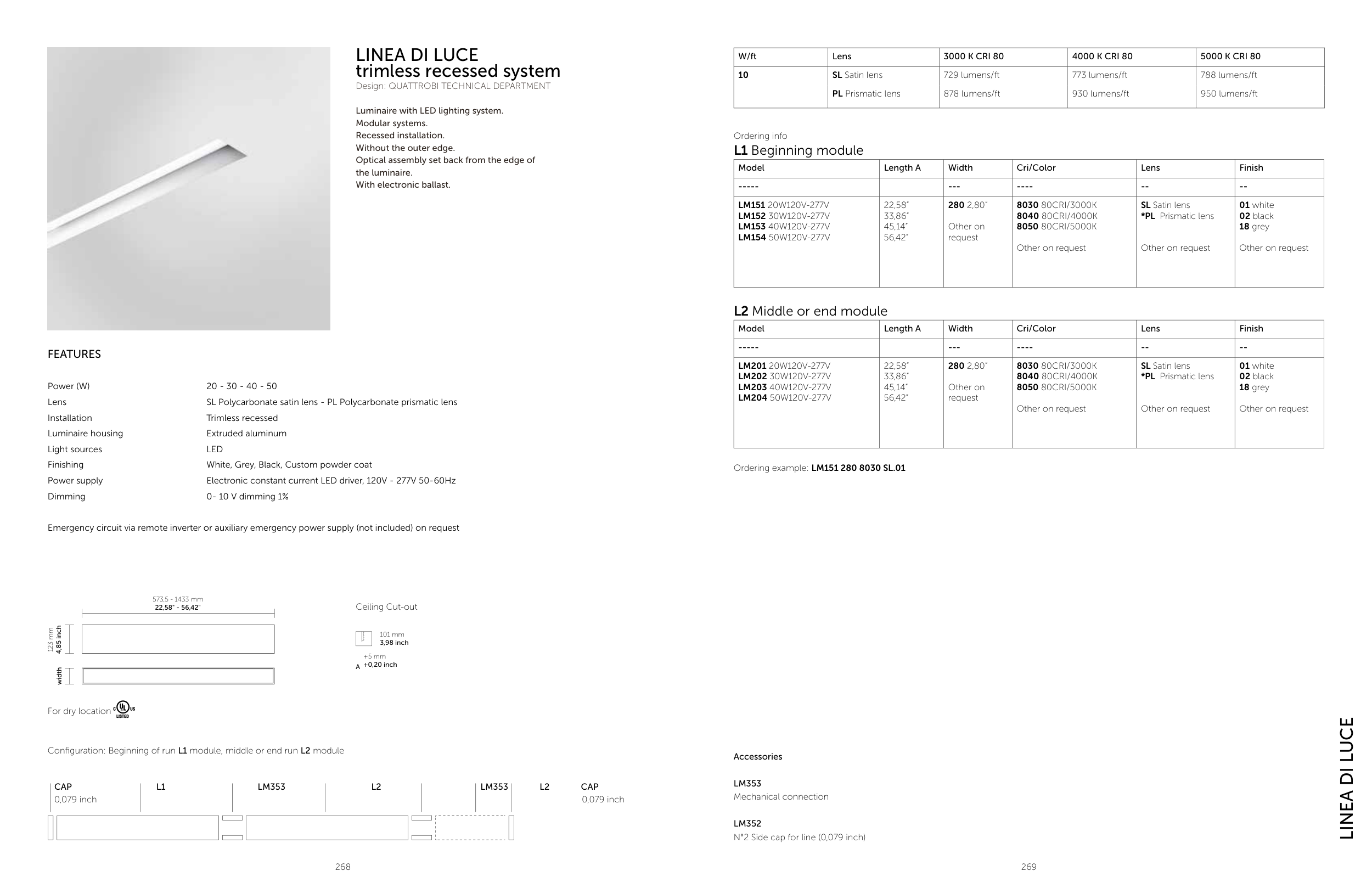

LINEA DI LUCE
trimless recessed system
Design: QUATTROBI TECHNICAL DEPARTMENT
Luminaire with LED lighting system.
Modular systems.
Recessed installation.
Without the outer edge.
Optical assembly set back from the edge of
the luminaire.
With electronic ballast.
CAP
LM353
LM353
L1
L2
L2
CAP
Configuration: Beginning of run L1 module, middle or end run L2 module
+5 mm
+0,20 inch
101 mm
3,98 inch
A
Ceiling Cut-out
0,079 inch
0,079 inch
For dry location
width
123 mm
4,85 inch
573,5 - 1433 mm
22,58" - 56,42"
LINEA DI LUCE
Ordering info
L1 Beginning module
Model
Length A
Width
Cri/Color
Lens
Finish
-----
---
----
--
--
LM151 20W120V-277V
LM152 30W120V-277V
LM153 40W120V-277V
LM154 50W120V-277V
22,58”
33,86”
45,14”
56,42”
280 2,80”
Other on
request
8030 80CRI/3000K
8040 80CRI/4000K
8050 80CRI/5000K
Other on request
SL Satin lens
*PL Prismatic lens
Other on request
01 white
02 black
18 grey
Other on request
L2 Middle or end module
Model
Length A
Width
Cri/Color
Lens
Finish
-----
---
----
--
--
LM201 20W120V-277V
LM202 30W120V-277V
LM203 40W120V-277V
LM204 50W120V-277V
22,58”
33,86”
45,14”
56,42”
280 2,80”
Other on
request
8030 80CRI/3000K
8040 80CRI/4000K
8050 80CRI/5000K
Other on request
SL Satin lens
*PL Prismatic lens
Other on request
01 white
02 black
18 grey
Other on request
Ordering example: LM151 280 8030 SL.01
W/ft
Lens
3000 K CRI 80
4000 K CRI 80
5000 K CRI 80
10
SL Satin lens
729 lumens/ft
773 lumens/ft
788 lumens/ft
PL Prismatic lens
878 lumens/ft
930 lumens/ft
950 lumens/ft
Accessories
LM353
Mechanical connection
LM352
N°2 Side cap for line (0,079 inch)
