FEATURES
Total fixture Watts
5.6 -7.7-10.2 - 11.4 - 16.7 - 15.2 - 18.2
Light beam (°)
Spot, Medium, Anti-glare (60°)
Installation
Track Serie 9500 compatible
Luminaire housing
Aluminium alloys
Protective screen
UGR
Light sources
LED
Finishing
Black
Line voltage
48VDC Class2
Power supply
DC/DC led driver integrated
Dimming
0 - 10V dim, Dali

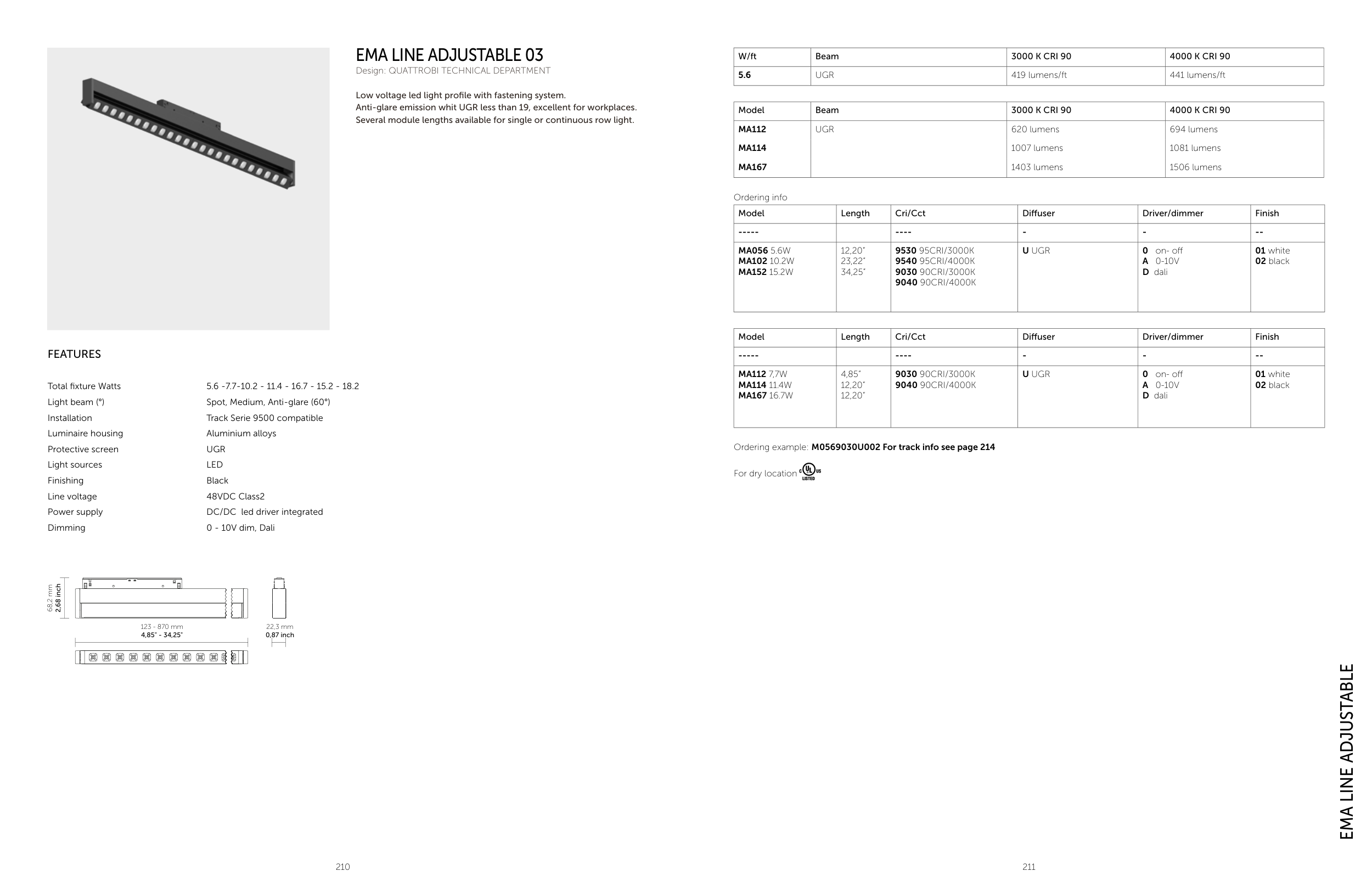

EMA LINE ADJUSTABLE 03
Design: QUATTROBI TECHNICAL DEPARTMENT
Low voltage led light profile with fastening system.
Anti-glare emission whit UGR less than 19, excellent for workplaces.
Several module lengths available for single or continuous row light.
68,2 mm
2,68 inch
22,3 mm
0,87 inch
EMA LINE ADJUSTABLE
W/ft
Beam
3000 K CRI 90
4000 K CRI 90
5.6
UGR
419 lumens/ft
441 lumens/ft
Model
Beam
3000 K CRI 90
4000 K CRI 90
MA112
UGR
620 lumens
694 lumens
MA114
1007 lumens
1081 lumens
MA167
1403 lumens
1506 lumens
Ordering info
Model
Length
Cri/Cct
Diffuser
Driver/dimmer
Finish
-----
----
-
-
--
MA056 5.6W
MA102 10.2W
MA152 15.2W
12,20”
23,22”
34,25”
9530 95CRI/3000K
9540 95CRI/4000K
9030 90CRI/3000K
9040 90CRI/4000K
U UGR
0 on- off
A 0-10V
D dali
01 white
02 black
Model
Length
Cri/Cct
Diffuser
Driver/dimmer
Finish
-----
----
-
-
--
MA112 7,7W
MA114 11.4W
MA167 16.7W
4,85”
12,20”
12,20”
9030 90CRI/3000K
9040 90CRI/4000K
U UGR
0 on- off
A 0-10V
D dali
01 white
02 black
Ordering example: M0569030U002 For track info see page 214
For dry location
123 - 870 mm
4,85" - 34,25"
