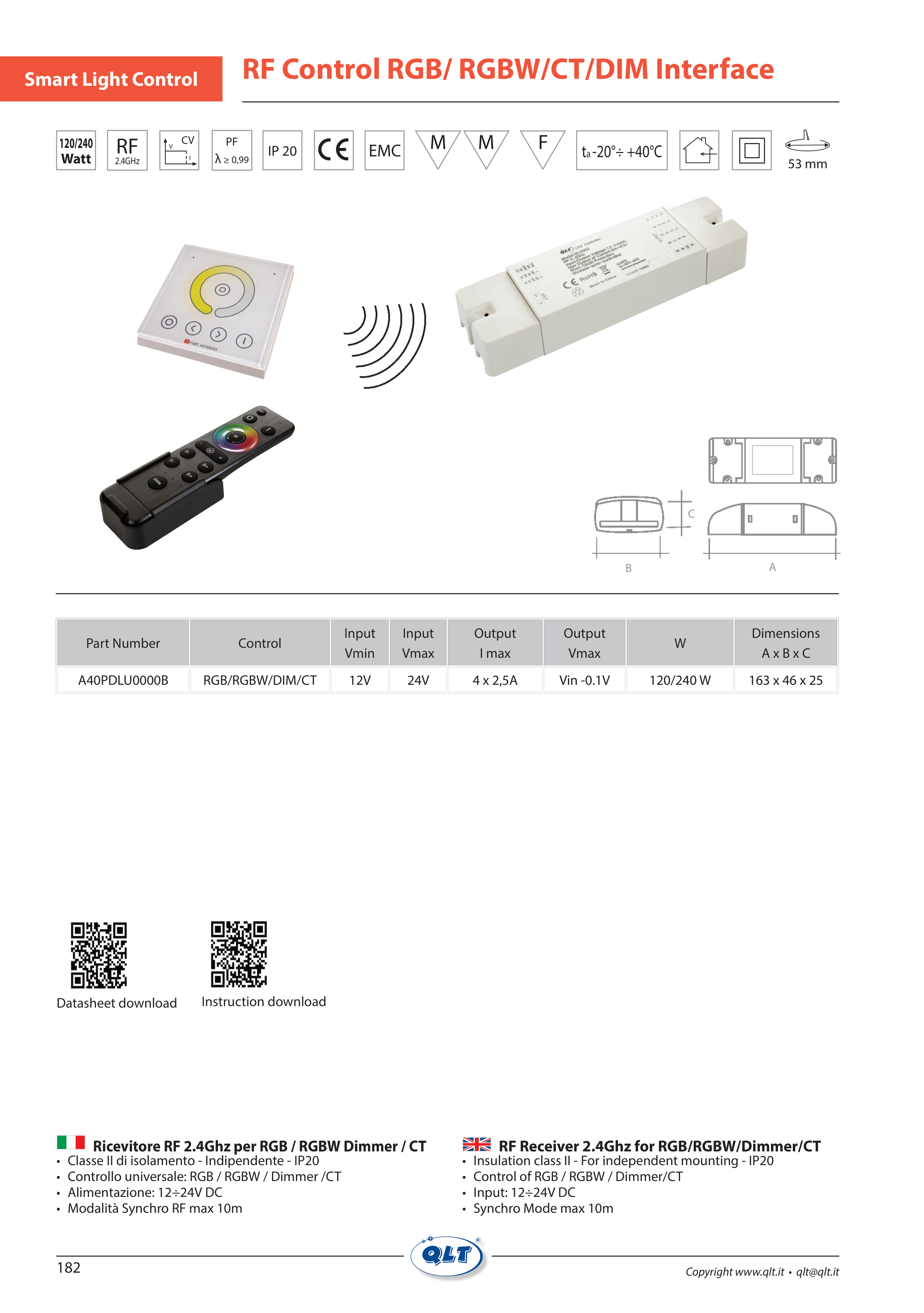

Smart Light Control
RF Control RGB/ RGBW/CT/DIM Interface
Ricevitore RF 2.4Ghz per RGB / RGBW Dimmer / CT
• Classe II di isolamento - Indipendente - IP20
• Controllo universale: RGB / RGBW / Dimmer /CT
• Alimentazione: 12÷24V DC
• Modalità Synchro RF max 10m
RF Receiver 2.4Ghz for RGB/RGBW/Dimmer/CT
• Insulation class II - For independent mounting - IP20
• Control of RGB / RGBW / Dimmer/CT
• Input: 12÷24V DC
• Synchro Mode max 10m
120/240
Watt
EMC
ta -20°÷ +40°C
M
M
F
IP 20
53 mm
RF
2.4GHz
V
I
CV
C
A
B
PF
λ ≥ 0,99
Part Number
Control
Input
Vmin
Input
Vmax
Output
I max
Output
Vmax
W
Dimensions
A x B x C
A40PDLU0000B
RGB/RGBW/DIM/CT
12V
24V
4 x 2,5A
Vin -0.1V
120/240 W
163 x 46 x 25
Datasheet download
Instruction download
