Technical data
IP Rating
IP65
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Light source
NR. 12 –> 24 x 1.5W CREE
“XP-G3” LED
Gasket
Silicone rubber
Glass
Tempered
Transformer
Electronic transformer
220/240V 50/60Hz included
Cable gland
Double nickel-plated brass
cable gland PG9
Power cable
3 m neoprene power cable
included
Weight
3,00 Kg
CYCLE ROUTE / PEDESTRIAN
STREET
Technical features
5

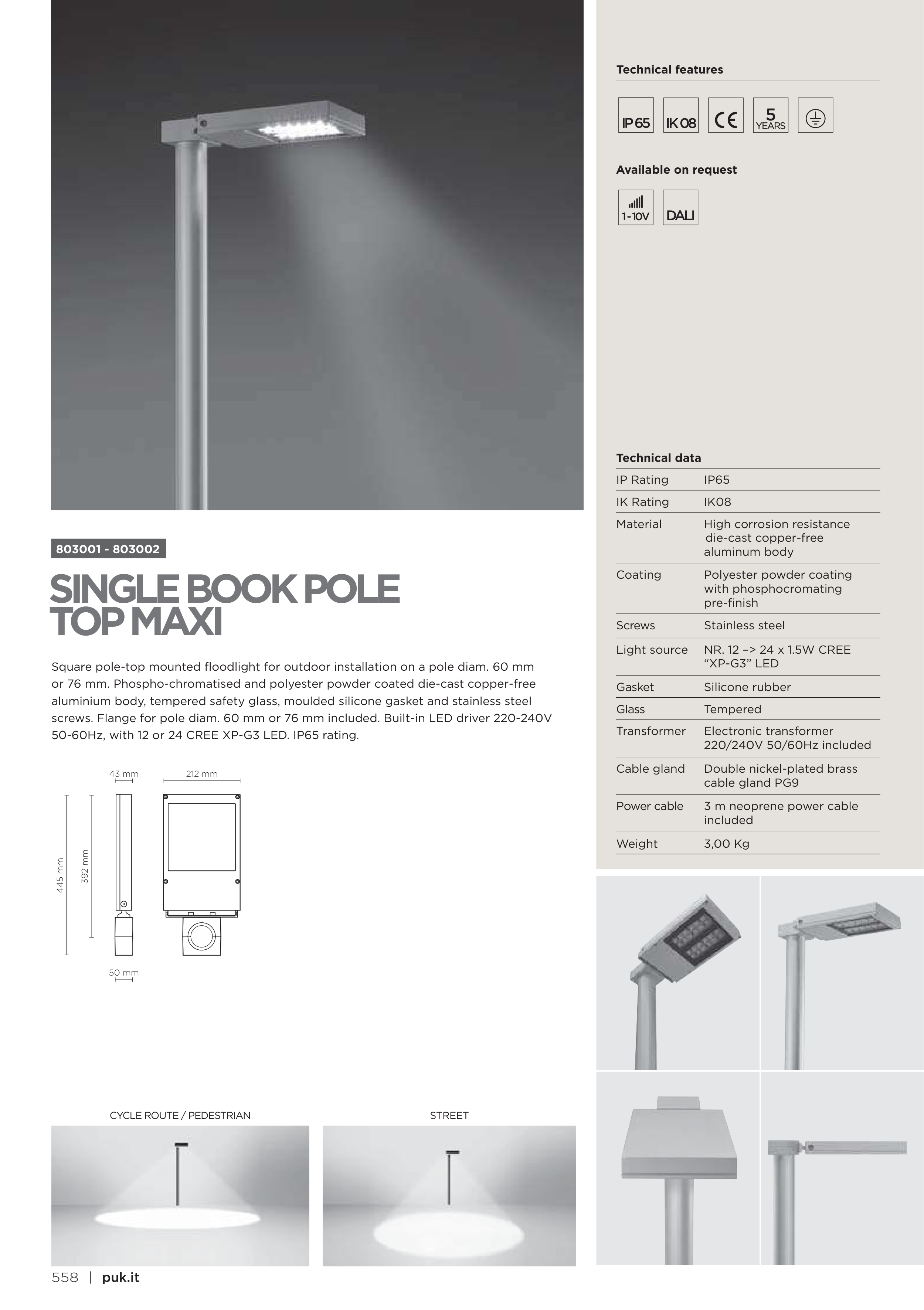

Square pole-top mounted floodlight for outdoor installation on a pole diam. 60 mm
or 76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free
aluminium body, tempered safety glass, moulded silicone gasket and stainless steel
screws. Flange for pole diam. 60 mm or 76 mm included. Built-in LED driver 220-240V
50-60Hz, with 12 or 24 CREE XP-G3 LED. IP65 rating.
SINGLE BOOK POLE
TOP MAXI
803001 - 803002
212 mm
43 mm
50 mm
392 mm
445 mm
DALI
1 - 10V
Available on request
