Technical features
5

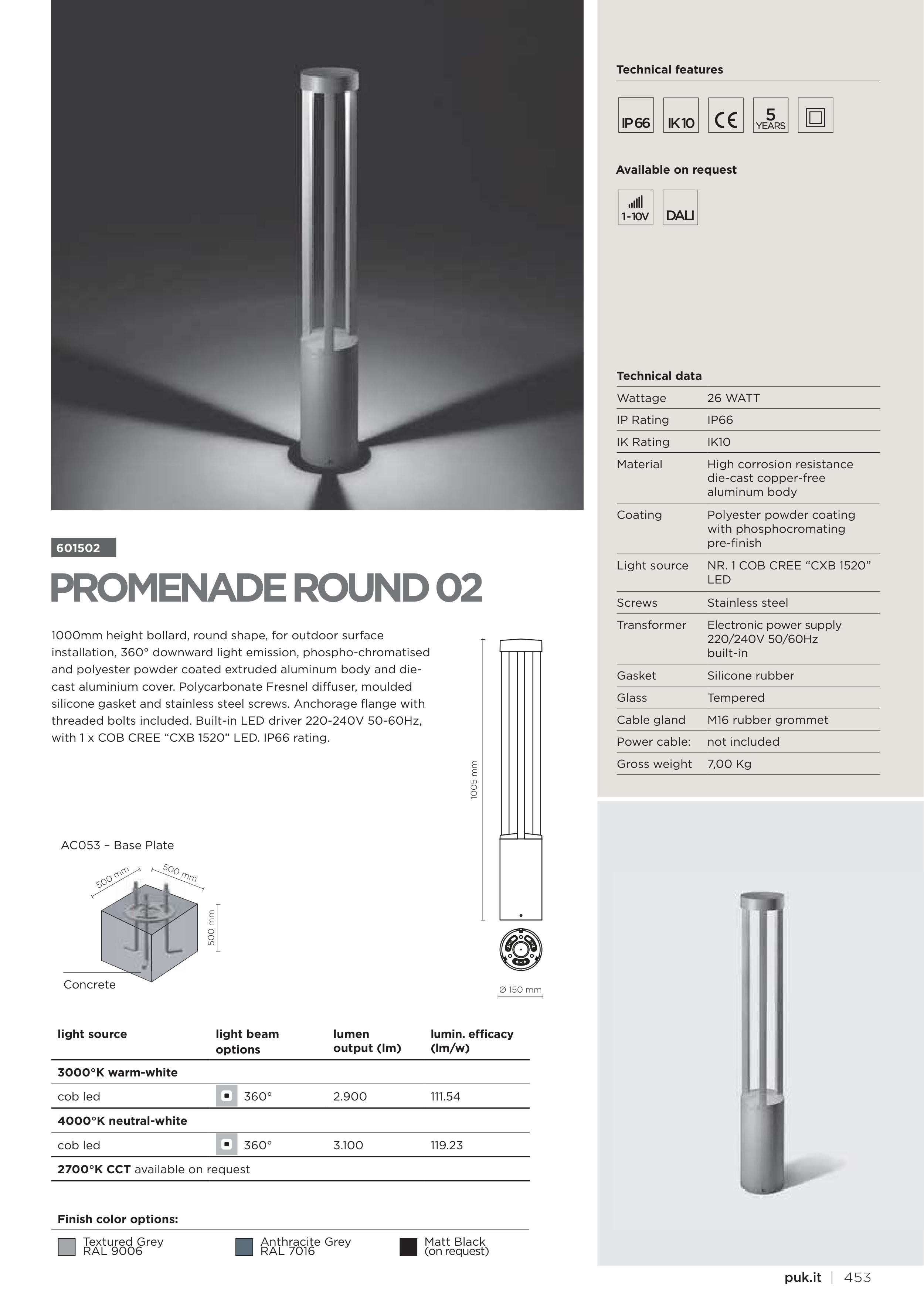

1000mm height bollard, round shape, for outdoor surface
installation, 360° downward light emission, phospho-chromatised
and polyester powder coated extruded aluminum body and die-
cast aluminium cover. Polycarbonate Fresnel diffuser, moulded
silicone gasket and stainless steel screws. Anchorage flange with
threaded bolts included. Built-in LED driver 220-240V 50-60Hz,
with 1 x COB CREE “CXB 1520” LED. IP66 rating.
PROMENADE ROUND 02
601502
Technical data
Wattage
26 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
NR. 1 COB CREE “CXB 1520”
LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable:
not included
Gross weight
7,00 Kg
Ø 150 mm
1005 mm
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
360°
2.900
111.54
4000°K neutral-white
cob led
360°
3.100
119.23
2700°K CCT available on request
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
AC053 – Base Plate
Concrete
500 mm
500 mm
500 mm
DALI
1 - 10V
Available on request
