167mm
ø128mm
U N I - B R I G H T L a V i l l a 4 8

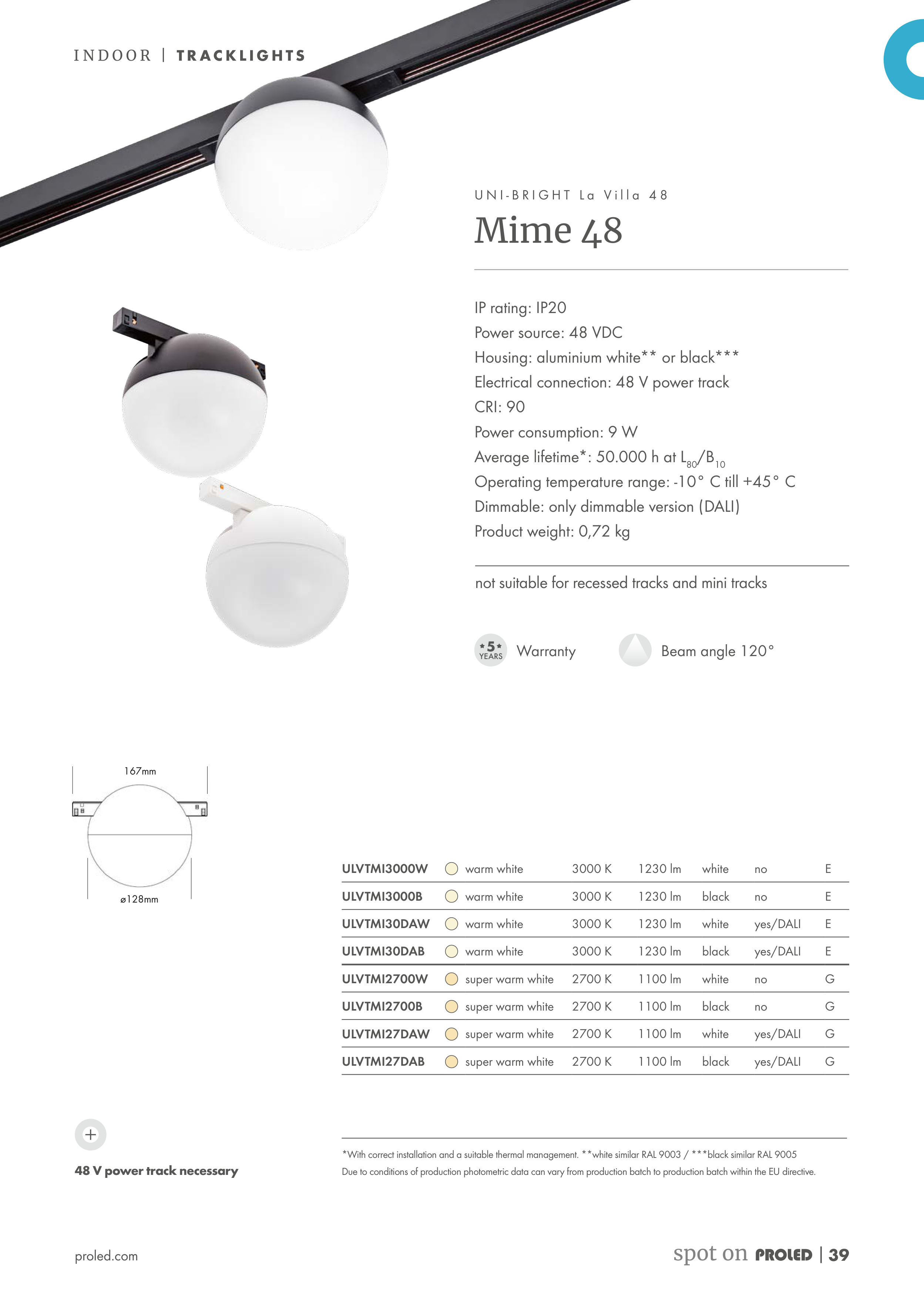

Mime 48
IP rating: IP20
Power source: 48 VDC
Housing: aluminium white** or black***
Electrical connection: 48 V power track
CRI: 90
Power consumption: 9 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: only dimmable version (DALI)
Product weight: 0,72 kg
ULVTMI3000W
warm white
3000 K
1230 lm
white
no
E
ULVTMI3000B
warm white
3000 K
1230 lm
black
no
E
ULVTMI30DAW
warm white
3000 K
1230 lm
white
yes/DALI
E
ULVTMI30DAB
warm white
3000 K
1230 lm
black
yes/DALI
E
ULVTMI2700W
super warm white
2700 K
1100 lm
white
no
G
ULVTMI2700B
super warm white
2700 K
1100 lm
black
no
G
ULVTMI27DAW
super warm white
2700 K
1100 lm
white
yes/DALI
G
ULVTMI27DAB
super warm white
2700 K
1100 lm
black
yes/DALI
G
*With correct installation and a suitable thermal management. **white similar RAL 9003 / ***black similar RAL 9005
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
not suitable for recessed tracks and mini tracks
Warranty
5
YEARS
Beam angle 120°
48 V power track necessary
proled.com
I N D O O R | T R AC K L I G H T S
spot on
| 39
