182mm
35,2mm
248,6mm
99,6mm
99,6mm
166,2mm
166,2mm
161,5mm
35,2mm
228mm

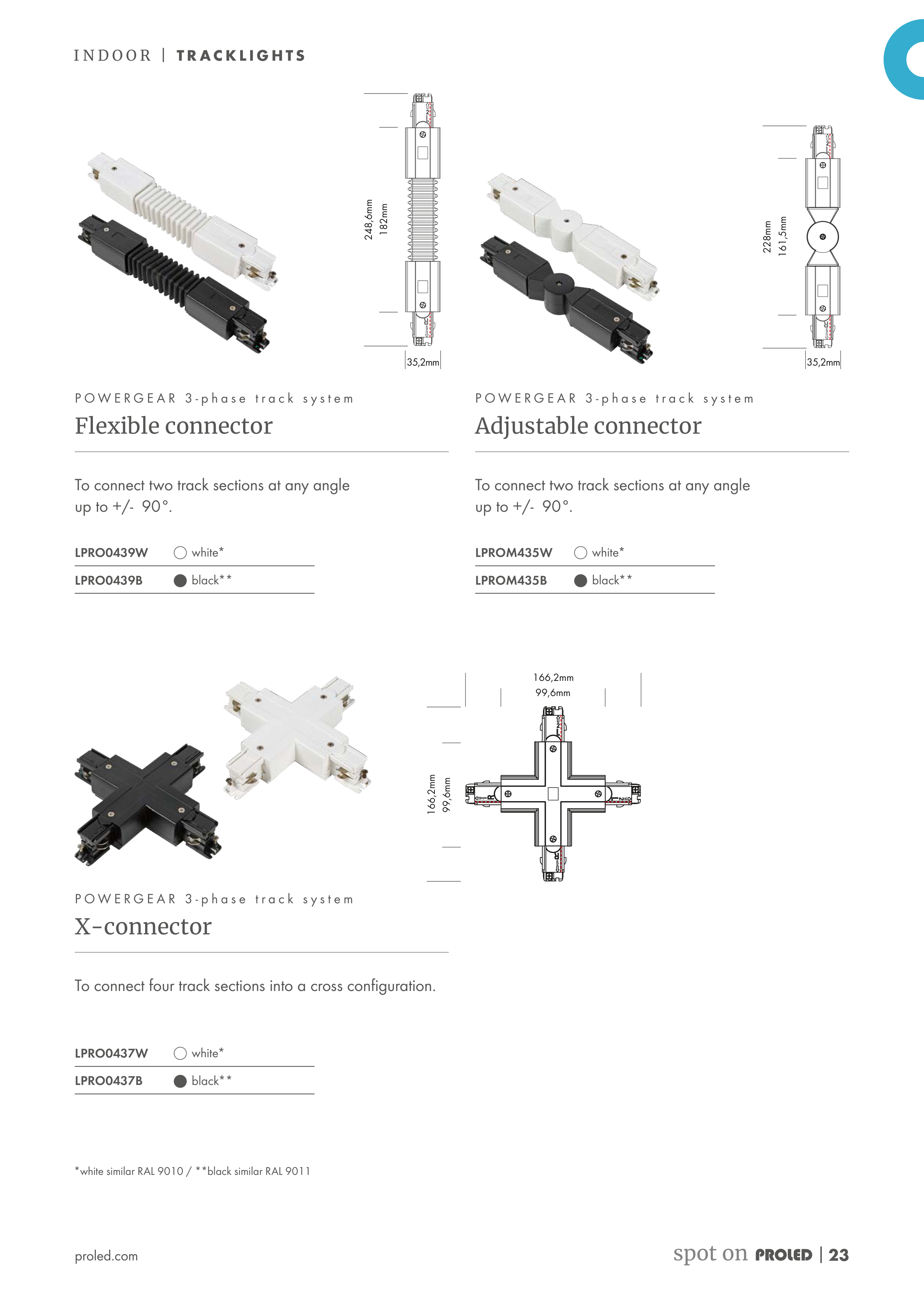

P O W E R G E A R 3 - p h a s e t r a c k s y s t e m
Flexible connector
P O W E R G E A R 3 - p h a s e t r a c k s y s t e m
Adjustable connector
LPRO0439W
white*
LPRO0439B
black**
LPROM435W
white*
LPROM435B
black**
To connect two track sections at any angle
up to +/- 90°.
P O W E R G E A R 3 - p h a s e t r a c k s y s t e m
X-connector
LPRO0437W
white*
LPRO0437B
black**
To connect four track sections into a cross configuration.
To connect two track sections at any angle
up to +/- 90°.
*white similar RAL 9010 / **black similar RAL 9011
