L2
L1
D+
D-
N
L3

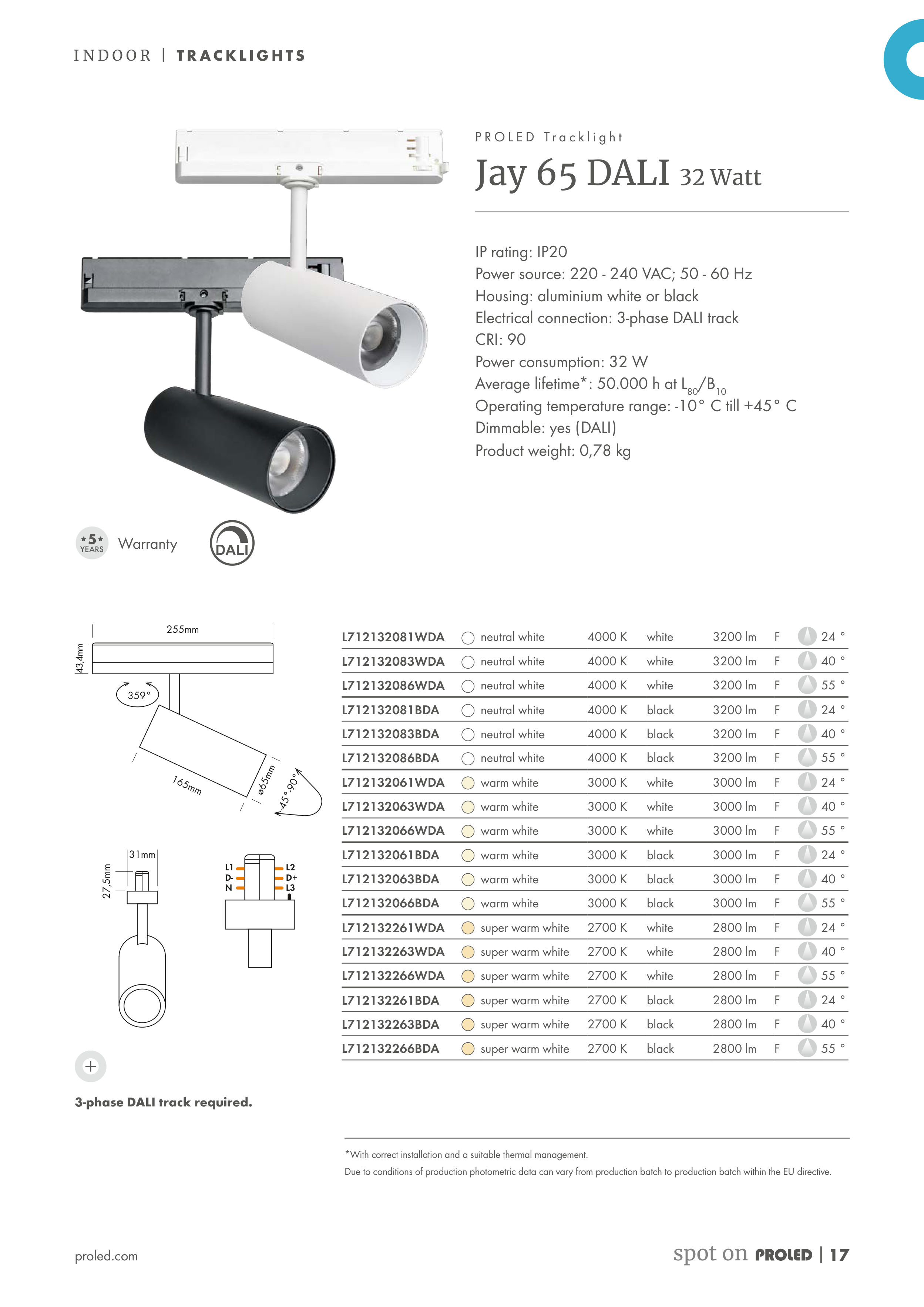

P R O L E D T r a c k l i g h t
Jay 65 DALI 32 Watt
IP rating: IP20
Power source: 220 - 240 VAC; 50 - 60 Hz
Housing: aluminium white or black
Electrical connection: 3-phase DALI track
CRI: 90
Power consumption: 32 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: yes (DALI)
Product weight: 0,78 kg
Warranty
5
YEARS
L712132081WDA
neutral white
4000 K
white
3200 lm
F
24 °
L712132083WDA
neutral white
4000 K
white
3200 lm
F
40 °
L712132086WDA
neutral white
4000 K
white
3200 lm
F
55 °
L712132081BDA
neutral white
4000 K
black
3200 lm
F
24 °
L712132083BDA
neutral white
4000 K
black
3200 lm
F
40 °
L712132086BDA
neutral white
4000 K
black
3200 lm
F
55 °
L712132061WDA
warm white
3000 K
white
3000 lm
F
24 °
L712132063WDA
warm white
3000 K
white
3000 lm
F
40 °
L712132066WDA
warm white
3000 K
white
3000 lm
F
55 °
L712132061BDA
warm white
3000 K
black
3000 lm
F
24 °
L712132063BDA
warm white
3000 K
black
3000 lm
F
40 °
L712132066BDA
warm white
3000 K
black
3000 lm
F
55 °
L712132261WDA
super warm white
2700 K
white
2800 lm
F
24 °
L712132263WDA
super warm white
2700 K
white
2800 lm
F
40 °
L712132266WDA
super warm white
2700 K
white
2800 lm
F
55 °
L712132261BDA
super warm white
2700 K
black
2800 lm
F
24 °
L712132263BDA
super warm white
2700 K
black
2800 lm
F
40 °
L712132266BDA
super warm white
2700 K
black
2800 lm
F
55 °
*With correct installation and a suitable thermal management.
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
3-phase DALI track required.
proled.com
I N D O O R | T R AC K L I G H T S
spot on
| 17
