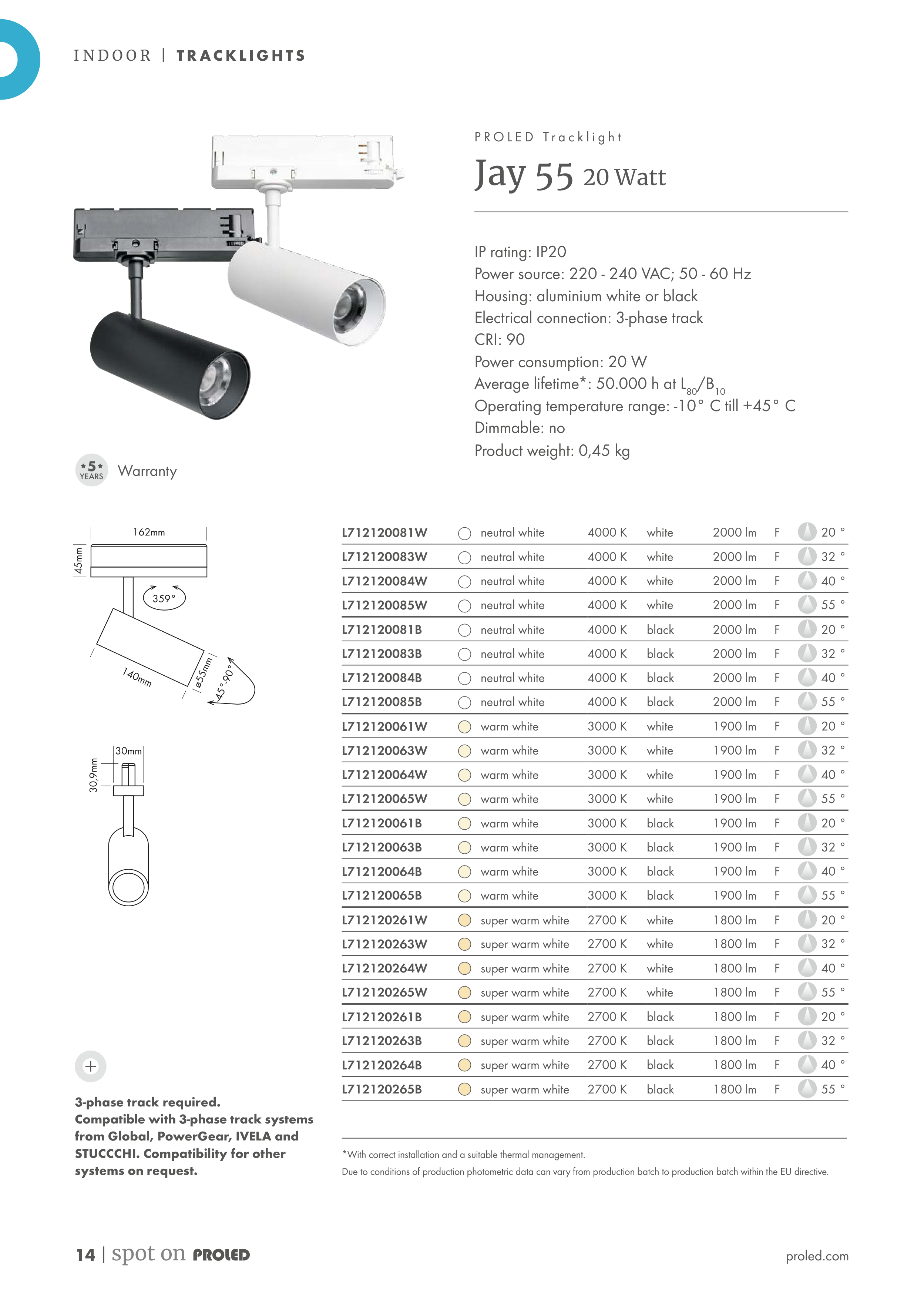

P R O L E D T r a c k l i g h t
Jay 55 20 Watt
L712120081W
neutral white
4000 K
white
2000 lm
F
20 °
L712120083W
neutral white
4000 K
white
2000 lm
F
32 °
L712120084W
neutral white
4000 K
white
2000 lm
F
40 °
L712120085W
neutral white
4000 K
white
2000 lm
F
55 °
L712120081B
neutral white
4000 K
black
2000 lm
F
20 °
L712120083B
neutral white
4000 K
black
2000 lm
F
32 °
L712120084B
neutral white
4000 K
black
2000 lm
F
40 °
L712120085B
neutral white
4000 K
black
2000 lm
F
55 °
L712120061W
warm white
3000 K
white
1900 lm
F
20 °
L712120063W
warm white
3000 K
white
1900 lm
F
32 °
L712120064W
warm white
3000 K
white
1900 lm
F
40 °
L712120065W
warm white
3000 K
white
1900 lm
F
55 °
L712120061B
warm white
3000 K
black
1900 lm
F
20 °
L712120063B
warm white
3000 K
black
1900 lm
F
32 °
L712120064B
warm white
3000 K
black
1900 lm
F
40 °
L712120065B
warm white
3000 K
black
1900 lm
F
55 °
L712120261W
super warm white
2700 K
white
1800 lm
F
20 °
L712120263W
super warm white
2700 K
white
1800 lm
F
32 °
L712120264W
super warm white
2700 K
white
1800 lm
F
40 °
L712120265W
super warm white
2700 K
white
1800 lm
F
55 °
L712120261B
super warm white
2700 K
black
1800 lm
F
20 °
L712120263B
super warm white
2700 K
black
1800 lm
F
32 °
L712120264B
super warm white
2700 K
black
1800 lm
F
40 °
L712120265B
super warm white
2700 K
black
1800 lm
F
55 °
*With correct installation and a suitable thermal management.
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
Warranty
5
YEARS
IP rating: IP20
Power source: 220 - 240 VAC; 50 - 60 Hz
Housing: aluminium white or black
Electrical connection: 3-phase track
CRI: 90
Power consumption: 20 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: no
Product weight: 0,45 kg
3-phase track required.
Compatible with 3-phase track systems
from Global, PowerGear, IVELA and
STUCCCHI. Compatibility for other
systems on request.
