T E C H N I C A L D ATA
Power range
100-250 VAC
Control input
Art-Net (RJ45 – Ethernet)
Output signal
SPI or DMX
Output
16x RJ45
Transceivers need to be ordered seperately.
Operating temperature range
0 °C to +50 °C
Dimensions (L x W x H)
441 x 300 x 43 mm
Weight
2,45 kg

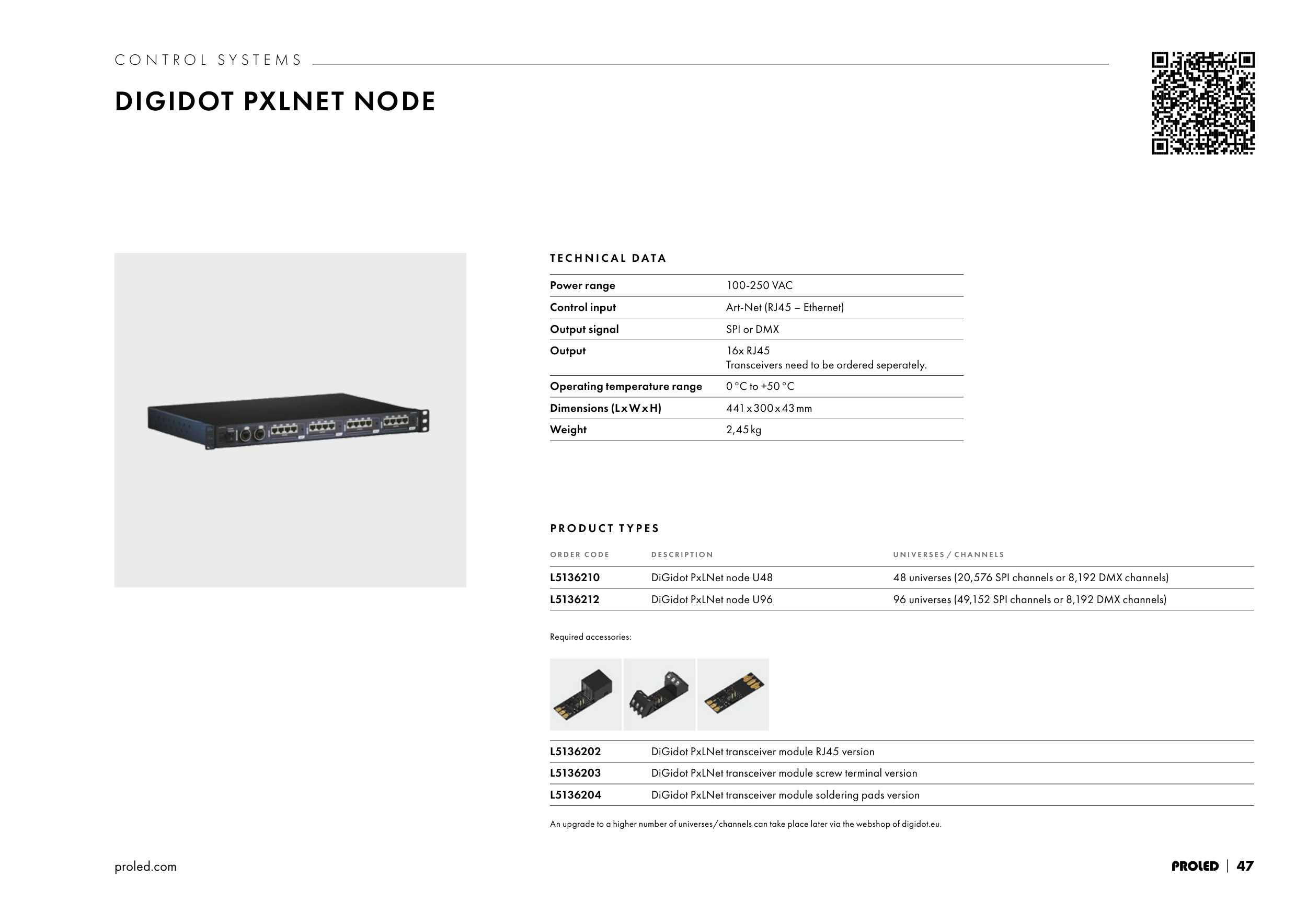

C O N T R O L S Y S T E M S
DIGIDOT PXLNET NODE
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
U N I V E R S E S / C H A N N E L S
L5136210
DiGidot PxLNet node U48
48 universes (20,576 SPI channels or 8,192 DMX channels)
L5136212
DiGidot PxLNet node U96
96 universes (49,152 SPI channels or 8,192 DMX channels)
Required accessories:
L5136202
DiGidot PxLNet transceiver module RJ45 version
L5136203
DiGidot PxLNet transceiver module screw terminal version
L5136204
DiGidot PxLNet transceiver module soldering pads version
An upgrade to a higher number of universes / channels can take place later via the webshop of digidot.eu.
