T E C H N I C A L D ATA
Power range
5–24 VDC
Control input
Art-Net (RJ45 – Ethernet)
Output signal
SPI or DMX
Output
Screw terminals
Operating temperature range
0 °C to +50 °C
Dimensions (L x W x H)
153 x 74 x 28 mm
Weight
0,14 kg
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
U N I V E R S E S / C H A N N E L S
L5136008
DiGidot C4 Live 8
8 universes (4,096 SPI channels) or 1,024 DMX channels
L5136012
DiGidot C4 Live 12
12 universes (6,000 SPI channels) or 1,024 DMX channels
L5136016
DiGidot C4 Live 16
16 universes (8,192 SPI channels) or 1,024 DMX channels
An upgrade to a higher number of universes / channels can take place later via the webshop of digidot.eu.
C O N T R O L S Y S T E M S

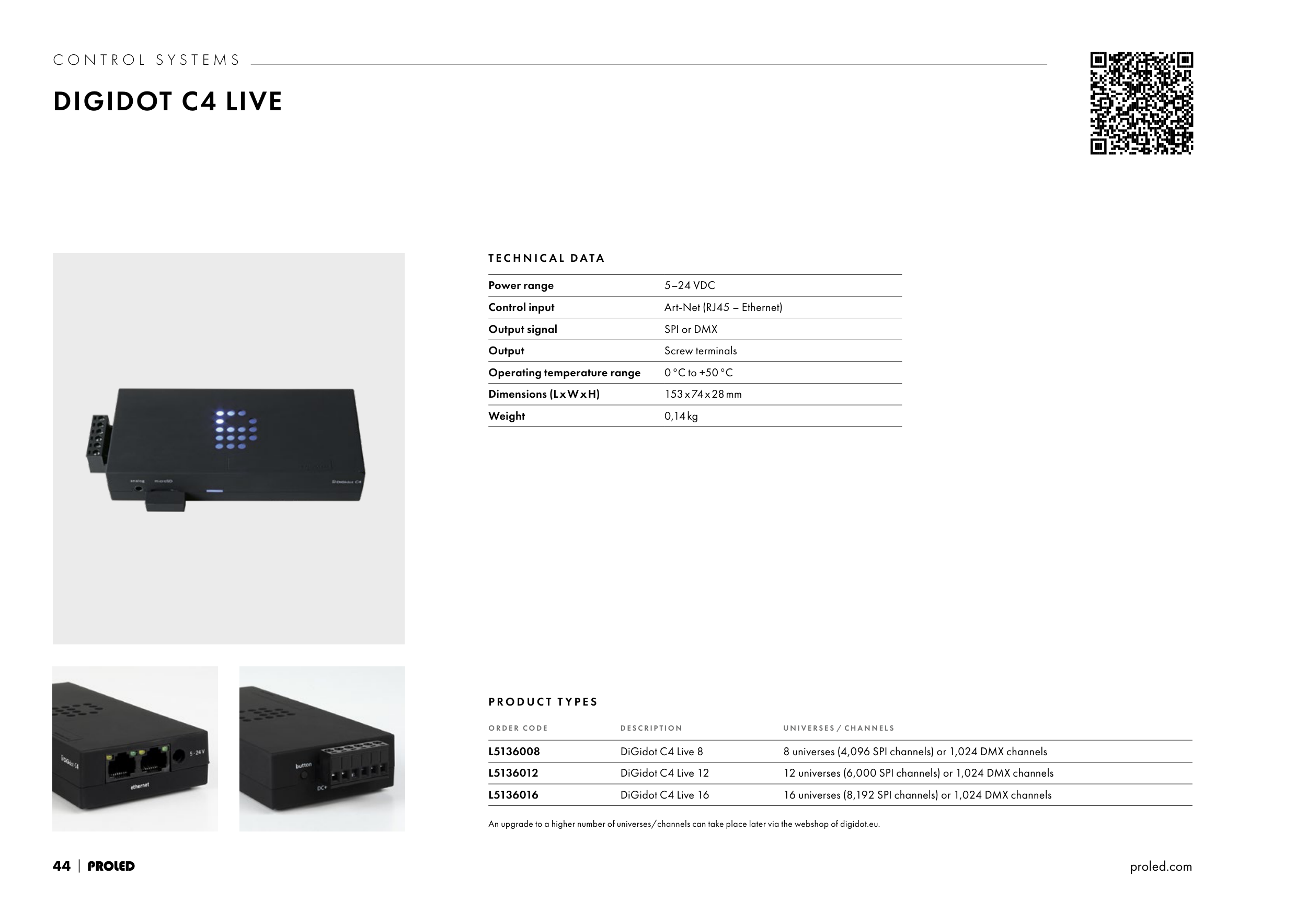

DIGIDOT C4 LIVE
