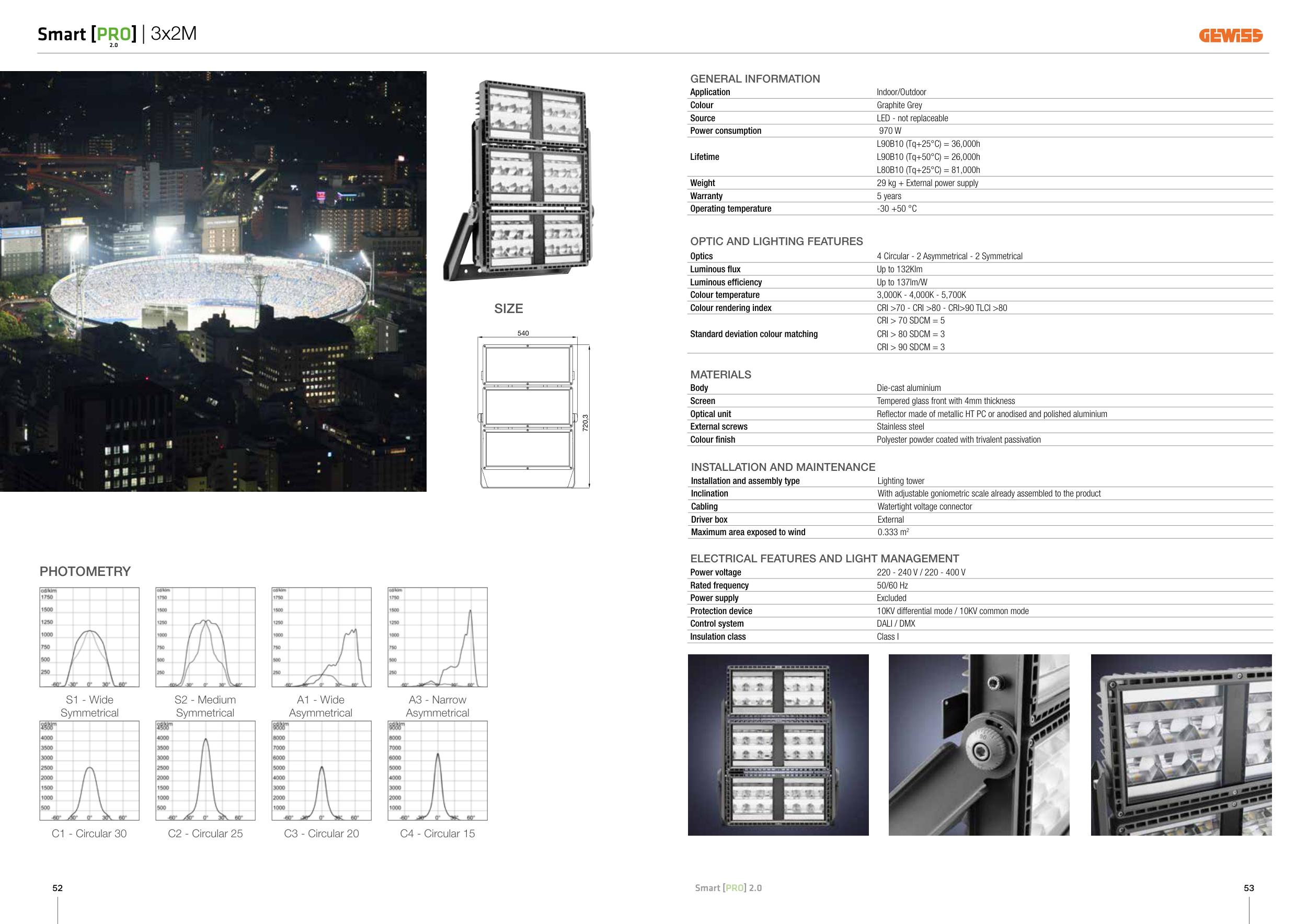

SIZE
Smart [PRO]
2.0
| 3x2M
439
495
260
460
523,5
544
540
720,3
GENERAL INFORMATION
Application
Indoor/Outdoor
Colour
Graphite Grey
Source
LED - not replaceable
Power consumption
970 W
Lifetime
L90B10 (Tq+25°C) = 36,000h
L90B10 (Tq+50°C) = 26,000h
L80B10 (Tq+25°C) = 81,000h
Weight
29 kg + External power supply
Warranty
5 years
Operating temperature
-30 +50 °C
MATERIALS
Body
Die-cast aluminium
Screen
Tempered glass front with 4mm thickness
Optical unit
Reflector made of metallic HT PC or anodised and polished aluminium
External screws
Stainless steel
Colour finish
Polyester powder coated with trivalent passivation
OPTIC AND LIGHTING FEATURES
Optics
4 Circular - 2 Asymmetrical - 2 Symmetrical
Luminous flux
Up to 132Klm
Luminous efficiency
Up to 137lm/W
Colour temperature
3,000K - 4,000K - 5,700K
Colour rendering index
CRI >70 - CRI >80 - CRI>90 TLCI >80
Standard deviation colour matching
CRI > 70 SDCM = 5
CRI > 80 SDCM = 3
CRI > 90 SDCM = 3
ELECTRICAL FEATURES AND LIGHT MANAGEMENT
Power voltage
220 - 240 V / 220 - 400 V
Rated frequency
50/60 Hz
Power supply
Excluded
Protection device
10KV differential mode / 10KV common mode
Control system
DALI / DMX
Insulation class
Class I
INSTALLATION AND MAINTENANCE
Installation and assembly type
Lighting tower
Inclination
With adjustable goniometric scale already assembled to the product
Cabling
Watertight voltage connector
Driver box
External
Maximum area exposed to wind
0.333 m2
PHOTOMETRY
S1 - Wide
Symmetrical
A1 - Wide
Asymmetrical
S2 - Medium
Symmetrical
C1 - Circular 30
C3 - Circular 20
C4 - Circular 15
A3 - Narrow
Asymmetrical
C2 - Circular 25
53
52
Smart [PRO] 2.0
