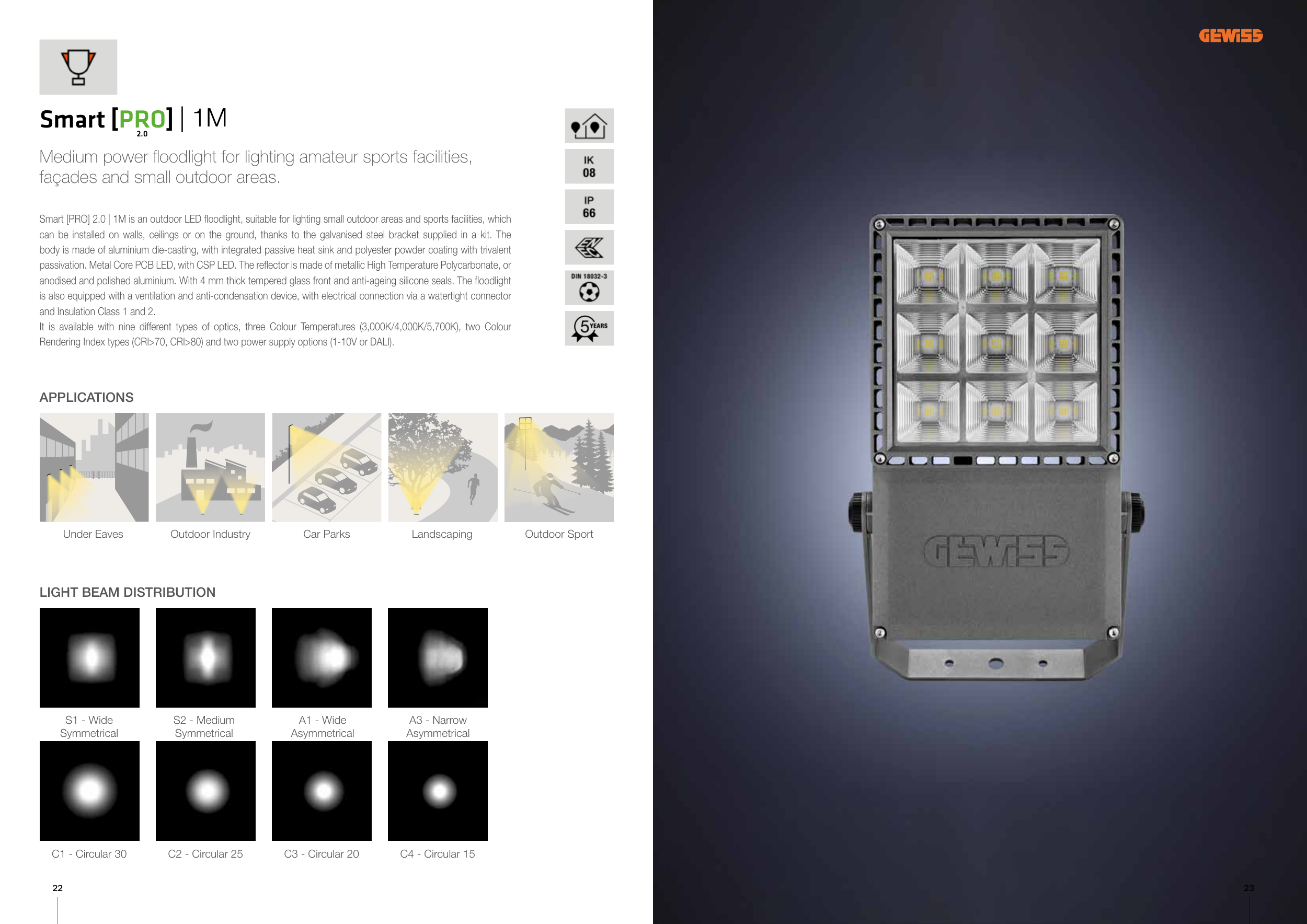

Smart [PRO] 2.0 | 1M is an outdoor LED floodlight, suitable for lighting small outdoor areas and sports facilities, which
can be installed on walls, ceilings or on the ground, thanks to the galvanised steel bracket supplied in a kit. The
body is made of aluminium die-casting, with integrated passive heat sink and polyester powder coating with trivalent
passivation. Metal Core PCB LED, with CSP LED. The reflector is made of metallic High Temperature Polycarbonate, or
anodised and polished aluminium. With 4 mm thick tempered glass front and anti-ageing silicone seals. The floodlight
is also equipped with a ventilation and anti-condensation device, with electrical connection via a watertight connector
and Insulation Class 1 and 2.
It is available with nine different types of optics, three Colour Temperatures (3,000K/4,000K/5,700K), two Colour
Rendering Index types (CRI>70, CRI>80) and two power supply options (1-10V or DALI).
Medium power floodlight for lighting amateur sports facilities,
façades and small outdoor areas.
Smart [PRO]
2.0
| 1M
APPLICATIONS
Landscaping
Car Parks
Outdoor Industry
Under Eaves
Outdoor Sport
LIGHT BEAM DISTRIBUTION
S1 - Wide
Symmetrical
A1 - Wide
Asymmetrical
A3 - Narrow
Asymmetrical
S2 - Medium
Symmetrical
C1 - Circular 30
C3 - Circular 20
C4 - Circular 15
C2 - Circular 25
