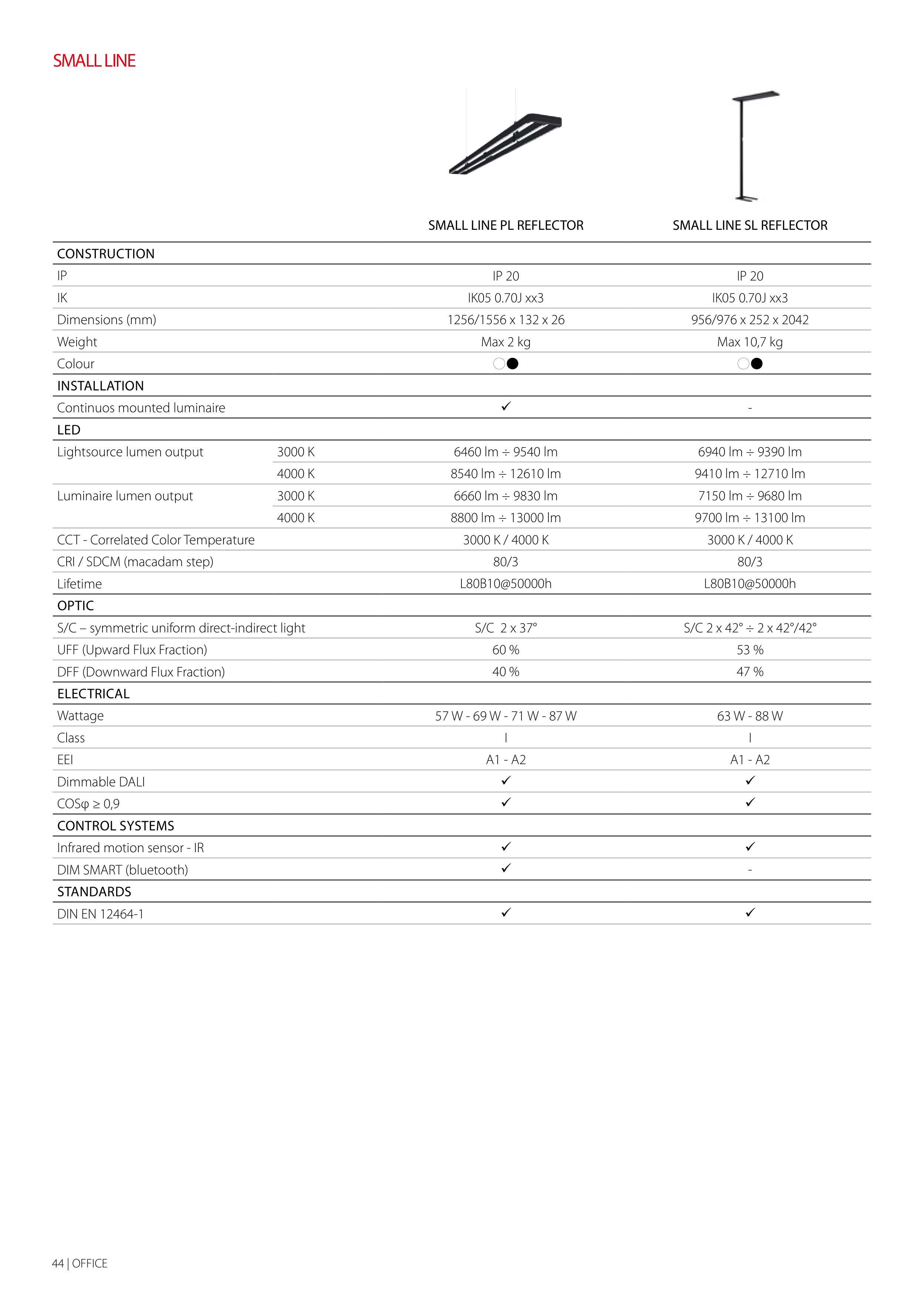

44 | OFFICE
SMALL LINE PL REFLECTOR
SMALL LINE SL REFLECTOR
IP 20
IP 20
IK05 0.70J xx3
IK05 0.70J xx3
1256/1556 x 132 x 26
956/976 x 252 x 2042
Max 2 kg
Max 10,7 kg
yq
yq
ü
-
6460 lm ÷ 9540 lm
6940 lm ÷ 9390 lm
8540 lm ÷ 12610 lm
9410 lm ÷ 12710 lm
6660 lm ÷ 9830 lm
7150 lm ÷ 9680 lm
8800 lm ÷ 13000 lm
9700 lm ÷ 13100 lm
3000 K / 4000 K
3000 K / 4000 K
80/3
80/3
L80B10@50000h
L80B10@50000h
S/C 2 x 37°
S/C 2 x 42° ÷ 2 x 42°/42°
60 %
53 %
40 %
47 %
57 W - 69 W - 71 W - 87 W
63 W - 88 W
I
I
A1 - A2
A1 - A2
ü
ü
ü
ü
ü
ü
ü
-
ü
ü
SMALL LINE
CONSTRUCTION
IP
IK
Dimensions (mm)
Weight
Colour
INSTALLATION
Continuos mounted luminaire
LED
Lightsource lumen output
3000 K
4000 K
Luminaire lumen output
3000 K
4000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
OPTIC
S/C – symmetric uniform direct-indirect light
UFF (Upward Flux Fraction)
DFF (Downward Flux Fraction)
ELECTRICAL
Wattage
Class
EEI
Dimmable DALI
COSφ ≥ 0,9
CONTROL SYSTEMS
Infrared motion sensor - IR
DIM SMART (bluetooth)
STANDARDS
DIN EN 12464-1
