PERFORMANCE iN LIGHTING | powered by GEWISS

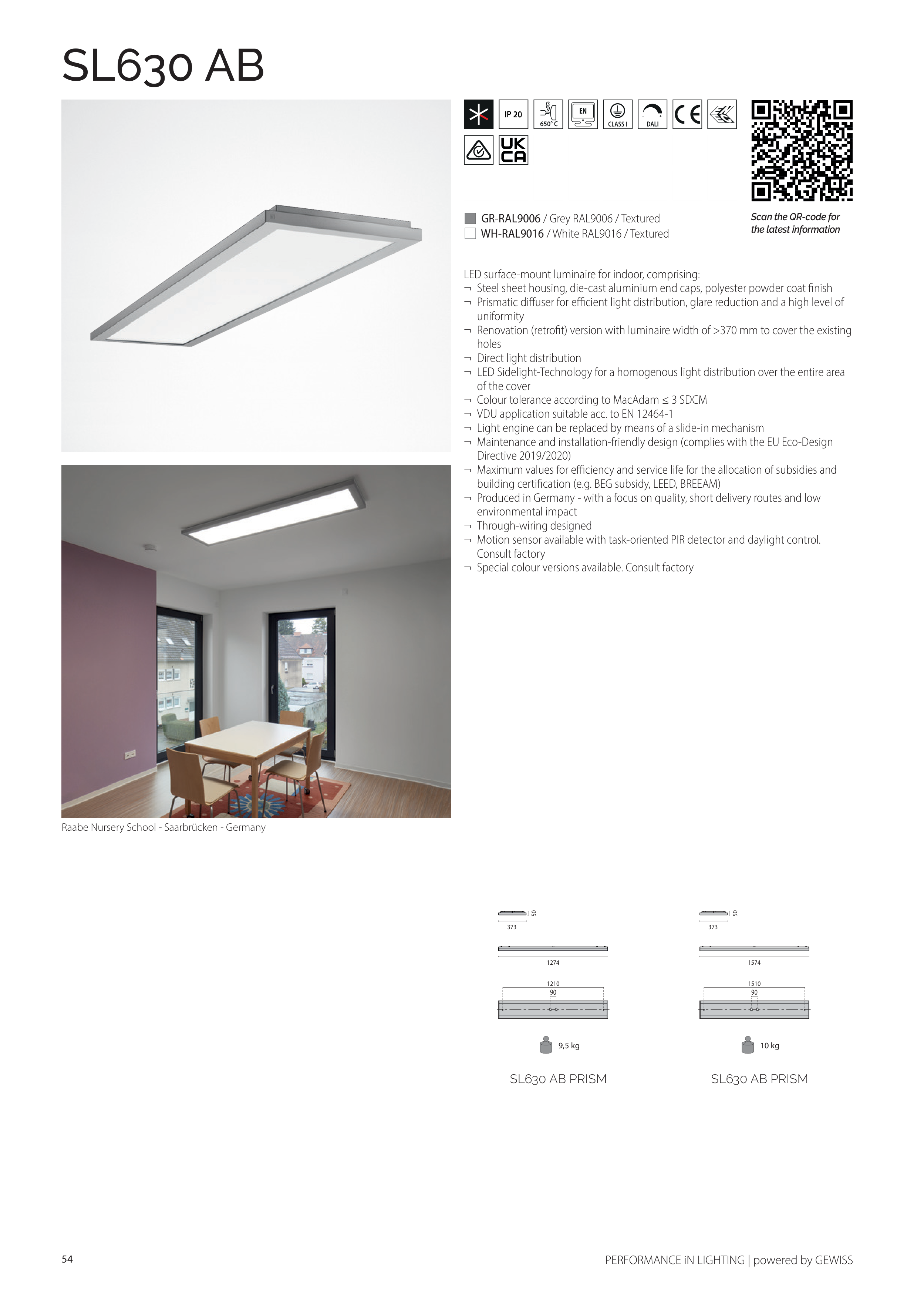

SL630 AB
650° C
50
373
1574
1510
90
SL630 AB PRISM
50
373
1274
1210
90
SL630 AB PRISM
10 kg
9,5 kg
Raabe Nursery School - Saarbrücken - Germany
LED surface-mount luminaire for indoor, comprising:
¬ Steel sheet housing, die-cast aluminium end caps, polyester powder coat finish
¬ Prismatic diffuser for efficient light distribution, glare reduction and a high level of
uniformity
¬ Renovation (retrofit) version with luminaire width of >370 mm to cover the existing
holes
¬ Direct light distribution
¬ LED Sidelight-Technology for a homogenous light distribution over the entire area
of the cover
¬ Colour tolerance according to MacAdam ≤ 3 SDCM
¬ VDU application suitable acc. to EN 12464-1
¬ Light engine can be replaced by means of a slide-in mechanism
¬ Maintenance and installation-friendly design (complies with the EU Eco-Design
Directive 2019/2020)
¬ Maximum values for efficiency and service life for the allocation of subsidies and
building certification (e.g. BEG subsidy, LEED, BREEAM)
¬ Produced in Germany - with a focus on quality, short delivery routes and low
environmental impact
¬ Through-wiring designed
¬ Motion sensor available with task-oriented PIR detector and daylight control.
Consult factory
¬ Special colour versions available. Consult factory
C GR-RAL9006 / Grey RAL9006 / Textured
T WH-RAL9016 / White RAL9016 / Textured
Scan the QR-code for
the latest information
54
