PERFORMANCE iN LIGHTING | powered by GEWISS

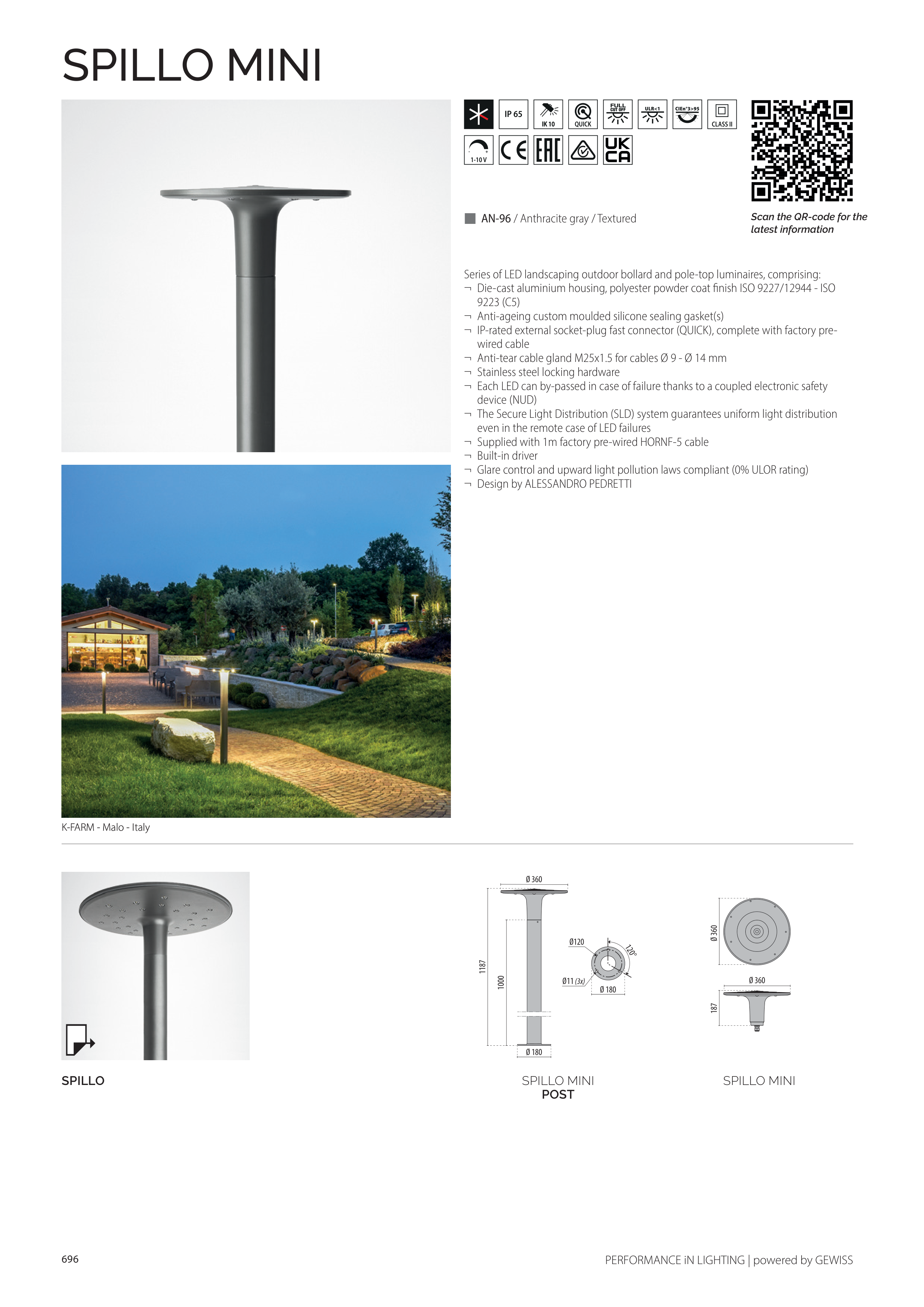

SPILLO MINI
187
Ø 360
Ø 360
Ø 180
Ø120
Ø11 (3x)
120°
1000
1187
Ø 180
Ø 360
SPILLO MINI
SPILLO MINI
POST
K-FARM - Malo - Italy
K-FARM - Malo - Italy
SPILLO
Series of LED landscaping outdoor bollard and pole-top luminaires, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ IP-rated external socket-plug fast connector (QUICK), complete with factory pre-
wired cable
¬ Anti-tear cable gland M25x1.5 for cables Ø 9 - Ø 14 mm
¬ Stainless steel locking hardware
¬ Each LED can by-passed in case of failure thanks to a coupled electronic safety
device (NUD)
¬ The Secure Light Distribution (SLD) system guarantees uniform light distribution
even in the remote case of LED failures
¬ Supplied with 1m factory pre-wired HORNF-5 cable
¬ Built-in driver
¬ Glare control and upward light pollution laws compliant (0% ULOR rating)
¬ Design by ALESSANDRO PEDRETTI
L AN-96 / Anthracite gray / Textured
Scan the QR-code for the
latest information
696
