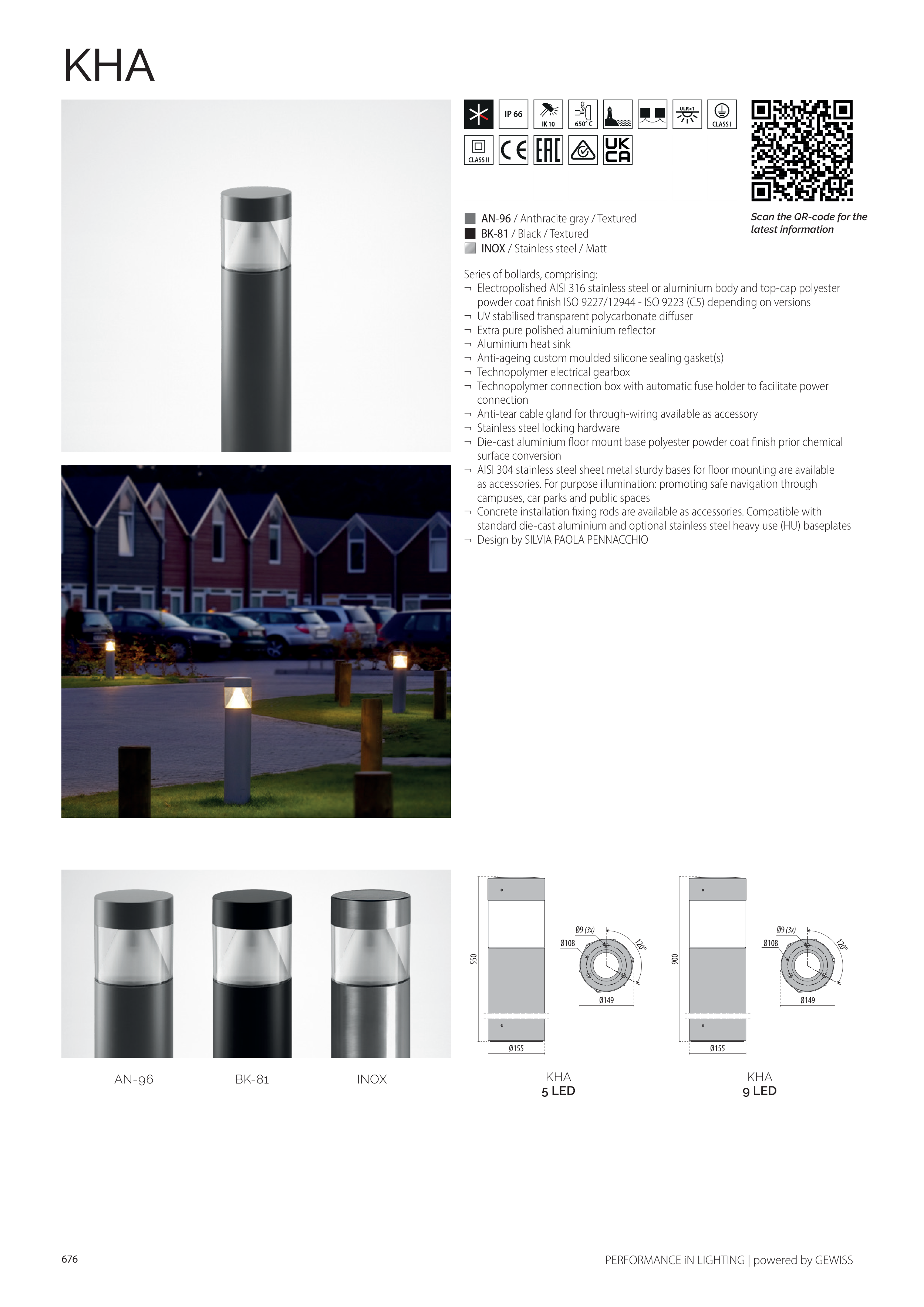

PERFORMANCE iN LIGHTING | powered by GEWISS
KHA
650° C
Ø155
900
120°
Ø149
Ø9 (3x)
Ø108
Ø155
550
120°
Ø149
Ø9 (3x)
Ø108
KHA
9 LED
KHA
5 LED
AN-96
BK-81
INOX
Series of bollards, comprising:
¬ Electropolished AISI 316 stainless steel or aluminium body and top-cap polyester
powder coat finish ISO 9227/12944 - ISO 9223 (C5) depending on versions
¬ UV stabilised transparent polycarbonate diffuser
¬ Extra pure polished aluminium reflector
¬ Aluminium heat sink
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Technopolymer electrical gearbox
¬ Technopolymer connection box with automatic fuse holder to facilitate power
connection
¬ Anti-tear cable gland for through-wiring available as accessory
¬ Stainless steel locking hardware
¬ Die-cast aluminium floor mount base polyester powder coat finish prior chemical
surface conversion
¬ AISI 304 stainless steel sheet metal sturdy bases for floor mounting are available
as accessories. For purpose illumination: promoting safe navigation through
campuses, car parks and public spaces
¬ Concrete installation fixing rods are available as accessories. Compatible with
standard die-cast aluminium and optional stainless steel heavy use (HU) baseplates
¬ Design by SILVIA PAOLA PENNACCHIO
L AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
K INOX / Stainless steel / Matt
Scan the QR-code for the
latest information
676
