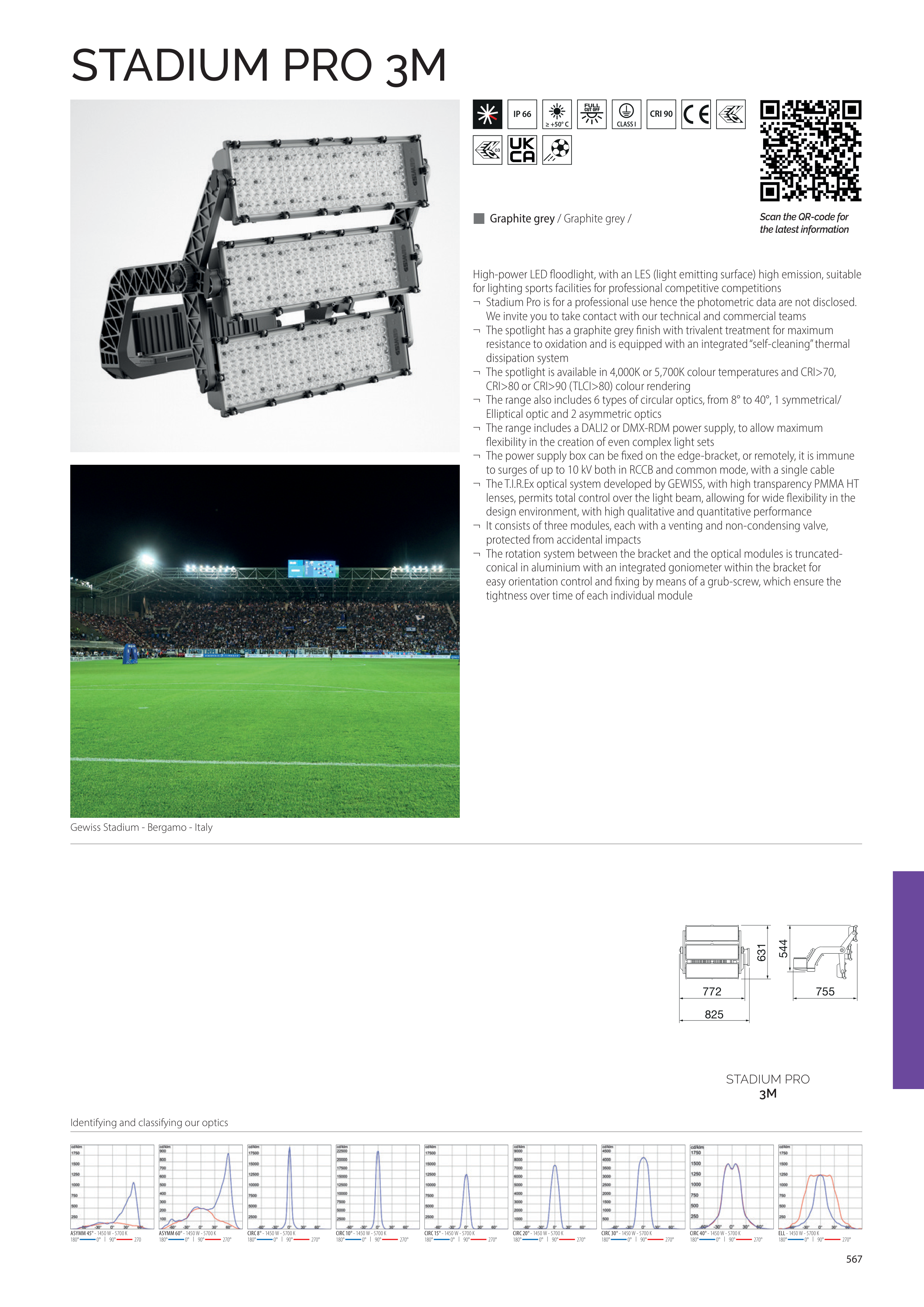

STADIUM PRO 3M
≥ +50° C
03
772
825
755
631
544
STADIUM PRO
3M
3100132
CIRC 20° - 1450 W - 5700 K
3100132
ASYMM 45° - 1450 W - 5700 K
3100132
CIRC 30° - 1450 W - 5700 K
3100132
CIRC 10° - 1450 W - 5700 K
3100132
CIRC 15° - 1450 W - 5700 K
3100132
ASYMM 60° - 1450 W - 5700 K
3100132
CIRC 40° - 1450 W - 5700 K
3100132
ELL - 1450 W - 5700 K
3100132
CIRC 8° - 1450 W - 5700 K
Gewiss Stadium - Bergamo - Italy
High-power LED floodlight, with an LES (light emitting surface) high emission, suitable
for lighting sports facilities for professional competitive competitions
¬ Stadium Pro is for a professional use hence the photometric data are not disclosed.
We invite you to take contact with our technical and commercial teams
¬ The spotlight has a graphite grey finish with trivalent treatment for maximum
resistance to oxidation and is equipped with an integrated “self-cleaning” thermal
dissipation system
¬ The spotlight is available in 4,000K or 5,700K colour temperatures and CRI>70,
CRI>80 or CRI>90 (TLCI>80) colour rendering
¬ The range also includes 6 types of circular optics, from 8° to 40°, 1 symmetrical/
Elliptical optic and 2 asymmetric optics
¬ The range includes a DALI2 or DMX-RDM power supply, to allow maximum
flexibility in the creation of even complex light sets
¬ The power supply box can be fixed on the edge-bracket, or remotely, it is immune
to surges of up to 10 kV both in RCCB and common mode, with a single cable
¬ The T.I.R.Ex optical system developed by GEWISS, with high transparency PMMA HT
lenses, permits total control over the light beam, allowing for wide flexibility in the
design environment, with high qualitative and quantitative performance
¬ It consists of three modules, each with a venting and non-condensing valve,
protected from accidental impacts
¬ The rotation system between the bracket and the optical modules is truncated-
conical in aluminium with an integrated goniometer within the bracket for
easy orientation control and fixing by means of a grub-screw, which ensure the
tightness over time of each individual module
L Graphite grey / Graphite grey /
Scan the QR-code for
the latest information
Identifying and classifying our optics
567
