PERFORMANCE iN LIGHTING | powered by GEWISS

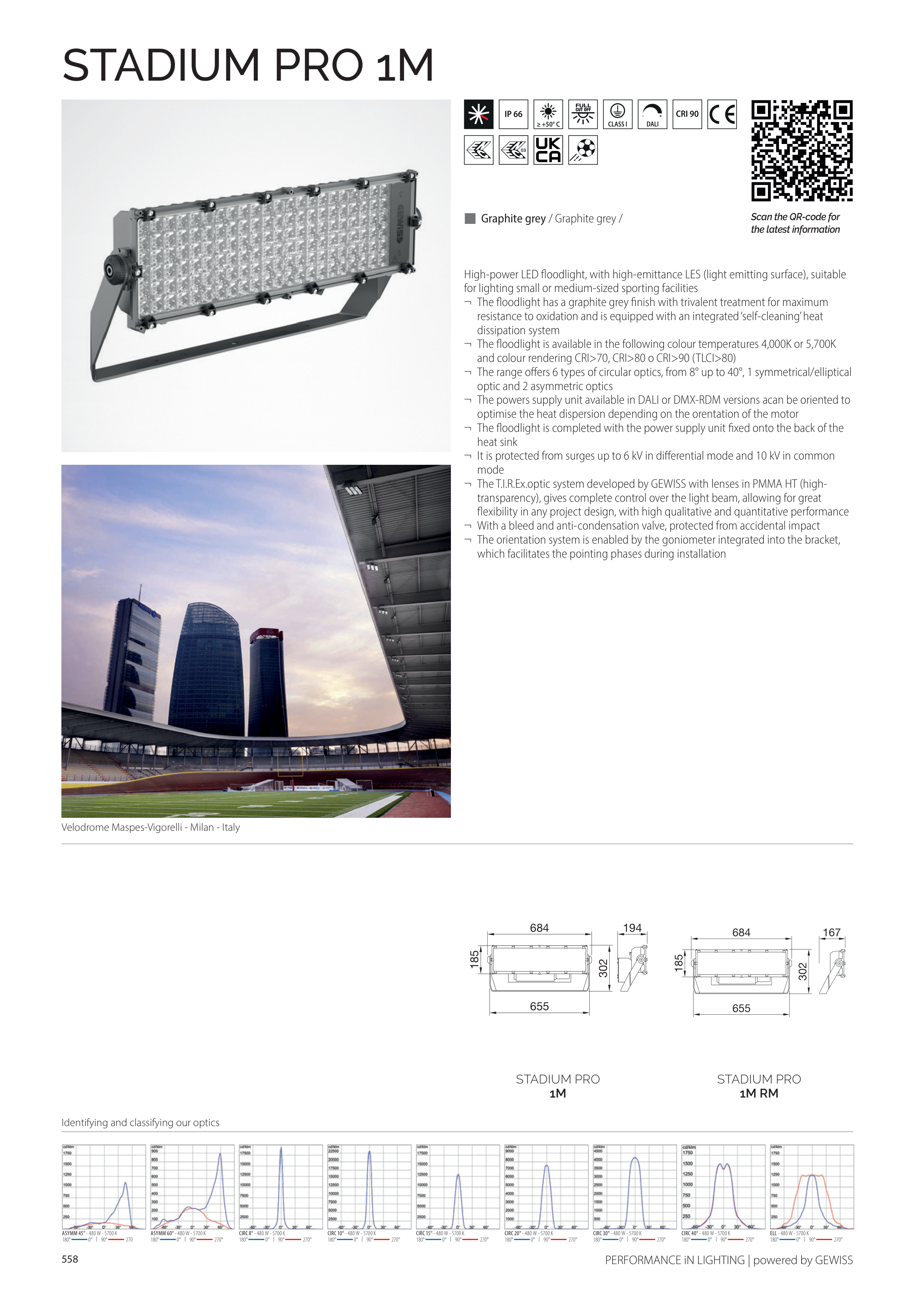

STADIUM PRO 1M
≥ +50° C
03
194
302
185
655
684
167
302
185
655
684
STADIUM PRO
1M
STADIUM PRO
1M RM
Velodrome Maspes-Vigorelli - Milan - Italy
3100132
CIRC 20° - 480 W - 5700 K
3100132
ASYMM 45° - 480 W - 5700 K
3100132
CIRC 30° - 480 W - 5700 K
3100132
CIRC 10° - 480 W - 5700 K
3100132
CIRC 15° - 480 W - 5700 K
3100132
ASYMM 60° - 480 W - 5700 K
3100132
CIRC 40° - 480 W - 5700 K
3100132
ELL - 480 W - 5700 K
3100132
CIRC 8° - 480 W - 5700 K
High-power LED floodlight, with high-emittance LES (light emitting surface), suitable
for lighting small or medium-sized sporting facilities
¬ The floodlight has a graphite grey finish with trivalent treatment for maximum
resistance to oxidation and is equipped with an integrated ‘self-cleaning’ heat
dissipation system
¬ The floodlight is available in the following colour temperatures 4,000K or 5,700K
and colour rendering CRI>70, CRI>80 o CRI>90 (TLCI>80)
¬ The range offers 6 types of circular optics, from 8° up to 40°, 1 symmetrical/elliptical
optic and 2 asymmetric optics
¬ The powers supply unit available in DALI or DMX-RDM versions acan be oriented to
optimise the heat dispersion depending on the orentation of the motor
¬ The floodlight is completed with the power supply unit fixed onto the back of the
heat sink
¬ It is protected from surges up to 6 kV in differential mode and 10 kV in common
mode
¬ The T.I.R.Ex.optic system developed by GEWISS with lenses in PMMA HT (high-
transparency), gives complete control over the light beam, allowing for great
flexibility in any project design, with high qualitative and quantitative performance
¬ With a bleed and anti-condensation valve, protected from accidental impact
¬ The orientation system is enabled by the goniometer integrated into the bracket,
which facilitates the pointing phases during installation
L Graphite grey / Graphite grey /
Scan the QR-code for
the latest information
Identifying and classifying our optics
558
