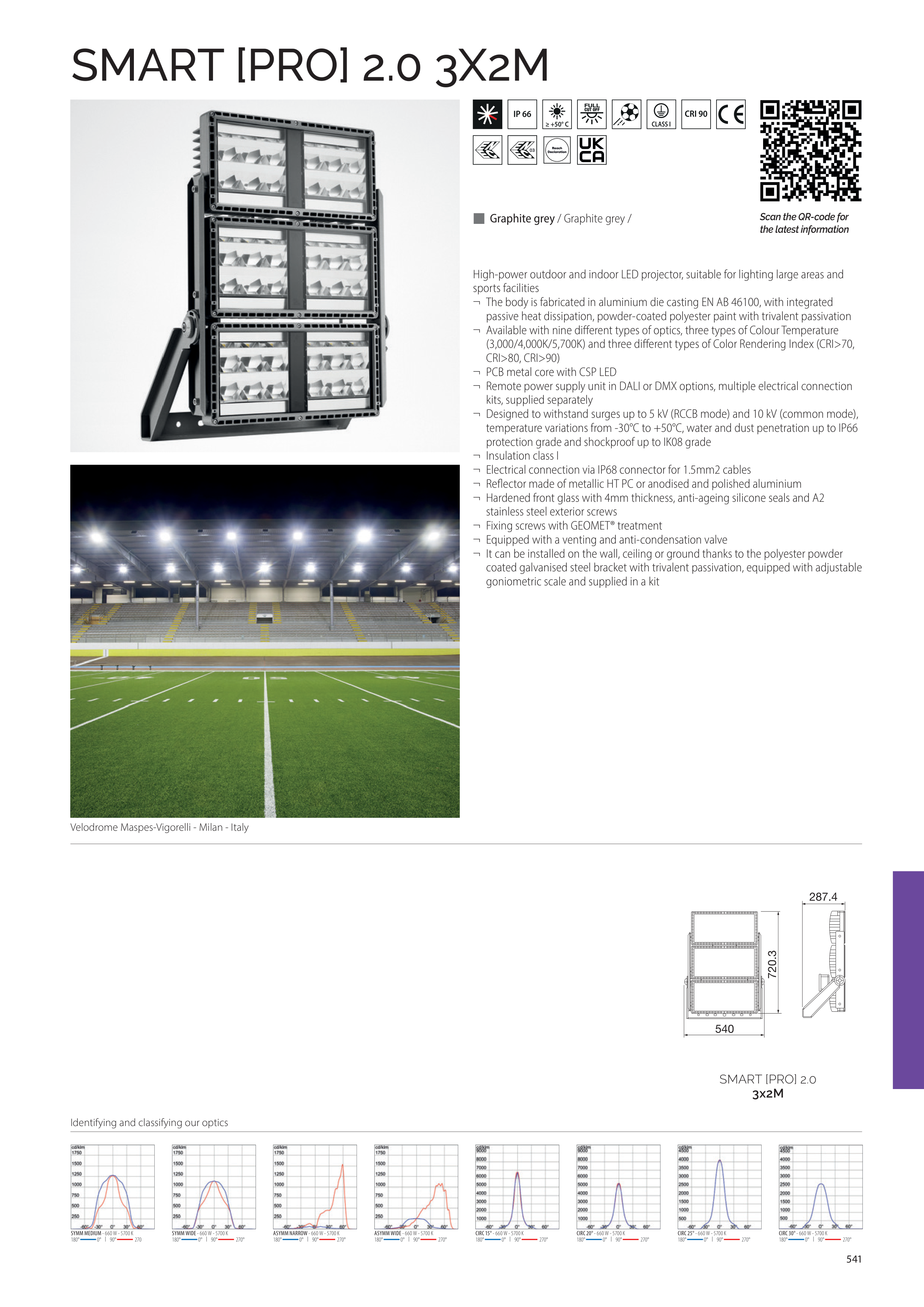

SMART [PRO] 2.0 3X2M
≥ +50° C
03
540
287.4
720.3
SMART [PRO] 2.0
3x2M
3100132
CIRC 20° - 660 W - 5700 K
3100132
SYMM MEDIUM - 660 W - 5700 K
3100132
CIRC 25° - 660 W - 5700 K
3100132
ASYMM WIDE - 660 W - 5700 K
3100132
CIRC 15° - 660 W - 5700 K
3100132
SYMM WIDE - 660 W - 5700 K
3100132
CIRC 30° - 660 W - 5700 K
3100132
ASYMM NARROW - 660 W - 5700 K
Velodrome Maspes-Vigorelli - Milan - Italy
High-power outdoor and indoor LED projector, suitable for lighting large areas and
sports facilities
¬ The body is fabricated in aluminium die casting EN AB 46100, with integrated
passive heat dissipation, powder-coated polyester paint with trivalent passivation
¬ Available with nine different types of optics, three types of Colour Temperature
(3,000/4,000K/5,700K) and three different types of Color Rendering Index (CRI>70,
CRI>80, CRI>90)
¬ PCB metal core with CSP LED
¬ Remote power supply unit in DALI or DMX options, multiple electrical connection
kits, supplied separately
¬ Designed to withstand surges up to 5 kV (RCCB mode) and 10 kV (common mode),
temperature variations from -30°C to +50°C, water and dust penetration up to IP66
protection grade and shockproof up to IK08 grade
¬ Insulation class I
¬ Electrical connection via IP68 connector for 1.5mm2 cables
¬ Reflector made of metallic HT PC or anodised and polished aluminium
¬ Hardened front glass with 4mm thickness, anti-ageing silicone seals and A2
stainless steel exterior screws
¬ Fixing screws with GEOMET® treatment
¬ Equipped with a venting and anti-condensation valve
¬ It can be installed on the wall, ceiling or ground thanks to the polyester powder
coated galvanised steel bracket with trivalent passivation, equipped with adjustable
goniometric scale and supplied in a kit
Scan the QR-code for
the latest information
Identifying and classifying our optics
L Graphite grey / Graphite grey /
