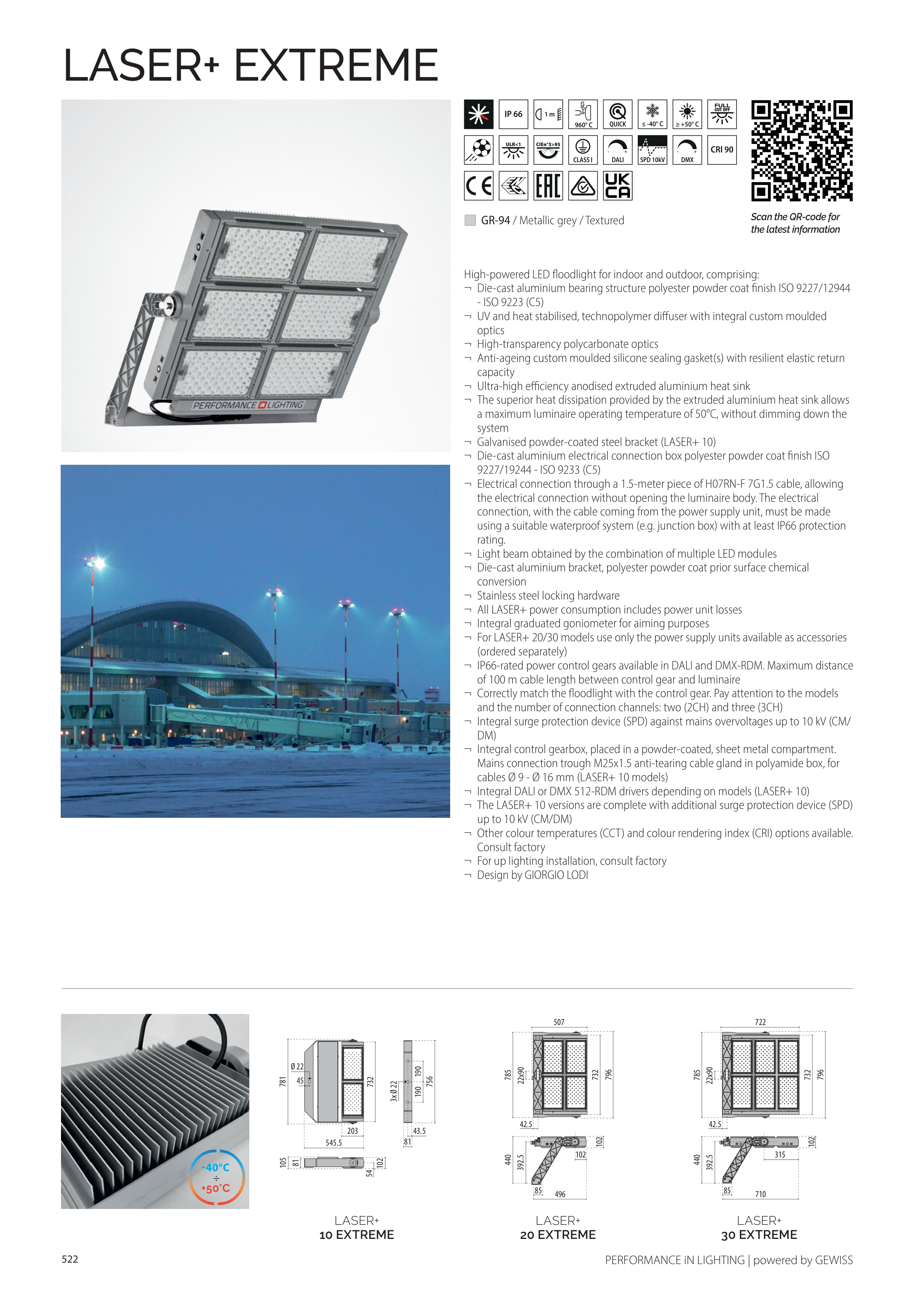

LASER+ EXTREME
1 m
960° C
≤ -40° C ≥ +50° C
22x90
785
796
732
722
42.5
710
85
440
392.5
315
102
22x90
785
796
732
507
42.5
496
85
440
392.5
102
102
781
105
81
732
203
545.5
54
102
190
190
756
43.5
81
Ø 22
45
3x Ø 22
LASER+
30 EXTREME
LASER+
20 EXTREME
LASER+
10 EXTREME
High-powered LED floodlight for indoor and outdoor, comprising:
¬ Die-cast aluminium bearing structure polyester powder coat finish ISO 9227/12944
- ISO 9223 (C5)
¬ UV and heat stabilised, technopolymer diffuser with integral custom moulded
optics
¬ High-transparency polycarbonate optics
¬ Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return
capacity
¬ Ultra-high efficiency anodised extruded aluminium heat sink
¬ The superior heat dissipation provided by the extruded aluminium heat sink allows
a maximum luminaire operating temperature of 50°C, without dimming down the
system
¬ Galvanised powder-coated steel bracket (LASER+ 10)
¬ Die-cast aluminium electrical connection box polyester powder coat finish ISO
9227/19244 - ISO 9233 (C5)
¬ Electrical connection through a 1.5-meter piece of H07RN-F 7G1.5 cable, allowing
the electrical connection without opening the luminaire body. The electrical
connection, with the cable coming from the power supply unit, must be made
using a suitable waterproof system (e.g. junction box) with at least IP66 protection
rating.
¬ Light beam obtained by the combination of multiple LED modules
¬ Die-cast aluminium bracket, polyester powder coat prior surface chemical
conversion
¬ Stainless steel locking hardware
¬ All LASER+ power consumption includes power unit losses
¬ Integral graduated goniometer for aiming purposes
¬ For LASER+ 20/30 models use only the power supply units available as accessories
(ordered separately)
¬ IP66-rated power control gears available in DALI and DMX-RDM. Maximum distance
of 100 m cable length between control gear and luminaire
¬ Correctly match the floodlight with the control gear. Pay attention to the models
and the number of connection channels: two (2CH) and three (3CH)
¬ Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/
DM)
¬ Integral control gearbox, placed in a powder-coated, sheet metal compartment.
Mains connection trough M25x1.5 anti-tearing cable gland in polyamide box, for
cables Ø 9 - Ø 16 mm (LASER+ 10 models)
¬ Integral DALI or DMX 512-RDM drivers depending on models (LASER+ 10)
¬ The LASER+ 10 versions are complete with additional surge protection device (SPD)
up to 10 kV (CM/DM)
¬ Other colour temperatures (CCT) and colour rendering index (CRI) options available.
Consult factory
¬ For up lighting installation, consult factory
¬ Design by GIORGIO LODI
I GR-94 / Metallic grey / Textured
Scan the QR-code for
the latest information
522
-40°C
÷
+50°C
