3112970
3107466
3108557
14029094
14047194
3107473
14099696
14099896
B
D
A
A
C
0 60 mm
0 90 mm
0 60 mm/
0 76 mm
310950
310951
3115612
3117844
3117845
Control gear
DESCRIPTION
COLOR
PART NUMBER
UKCA
TYK+ 20
USB key EcoEcco
3115612
ü
TYK+ 20 RGBW
Driver - CV 100 W - 48 V kit
310950
ü
Driver - CV 500 W - 48 V kit
310951
ü
Controller DMX touch white
3117844
ü
Controller DMX touch black
3117845
ü
Optional accessories
DESCRIPTION
COLOR
PART NUMBER
UKCA
TYK+ 20
Barndoors painted
o
3112970
ü
Anti-glare snoot
o
3107466
ü
Extra rotation bracket +55°/-90°
3108557
ü
Gliding support made of painted aluminium for the installation on 60-76 mm
Ø posts. 1 luminaire
I
14029094
ü
Gliding support made of painted aluminium for the installation on 60-76 mm
Ø posts. 2 opposed luminaires
I
14047194
ü
Two-axis rotation bracket for gliding support
3107473
ü
Gliding support made of painted aluminium for the installation on Ø 90 mm
posts
L
14099696
ü
Gliding support made of painted aluminium for the installation on Ø 60 mm
posts
L
14099896
ü
Complete unit
1A+1B+1C = please order 3 codes
COMPONENTS
A
luminaire
B
fixing bracket
C
gliding support
Complete unit
1A+1B+1C = please order 3 codes
COMPONENTS
A
luminaire
D
gliding support

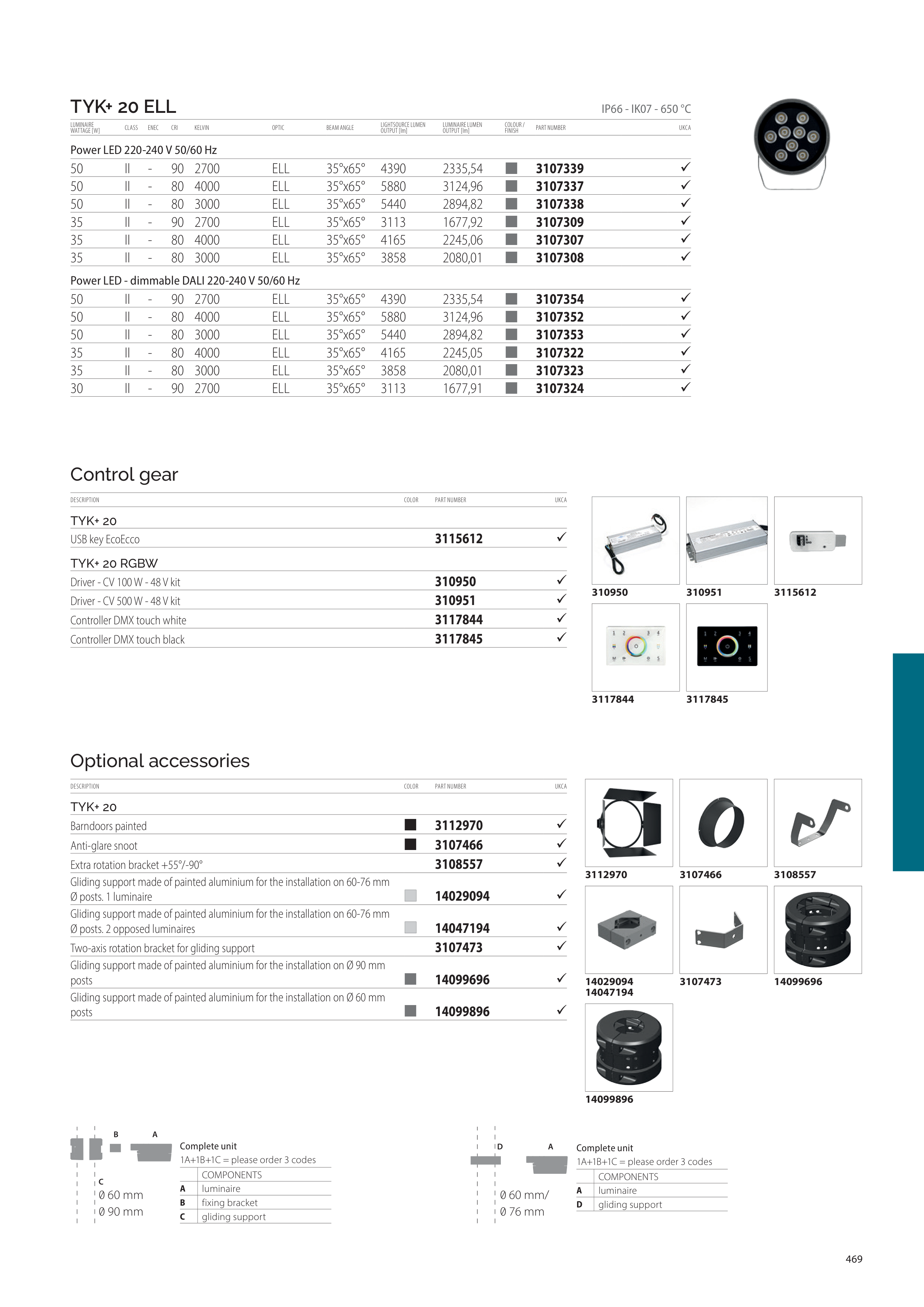

TYK+ 20 ELL
IP66 - IK07 - 650 °C
LUMINAIRE
WATTAGE [W]
CLASS
ENEC
CRI
KELVIN
OPTIC
BEAM ANGLE
LIGHTSOURCE LUMEN
OUTPUT [lm]
LUMINAIRE LUMEN
OUTPUT [lm]
COLOUR /
FINISH
PART NUMBER
UKCA
Power LED 220-240 V 50/60 Hz
50
II
-
90 2700
ELL
35°x65°
4390
2335,54
L
3107339
ü
50
II
-
80 4000
ELL
35°x65°
5880
3124,96
L
3107337
ü
50
II
-
80 3000
ELL
35°x65°
5440
2894,82
L
3107338
ü
35
II
-
90 2700
ELL
35°x65°
3113
1677,92
L
3107309
ü
35
II
-
80 4000
ELL
35°x65°
4165
2245,06
L
3107307
ü
35
II
-
80 3000
ELL
35°x65°
3858
2080,01
L
3107308
ü
Power LED - dimmable DALI 220-240 V 50/60 Hz
50
II
-
90 2700
ELL
35°x65°
4390
2335,54
L
3107354
ü
50
II
-
80 4000
ELL
35°x65°
5880
3124,96
L
3107352
ü
50
II
-
80 3000
ELL
35°x65°
5440
2894,82
L
3107353
ü
35
II
-
80 4000
ELL
35°x65°
4165
2245,05
L
3107322
ü
35
II
-
80 3000
ELL
35°x65°
3858
2080,01
L
3107323
ü
30
II
-
90 2700
ELL
35°x65°
3113
1677,91
L
3107324
ü
469
