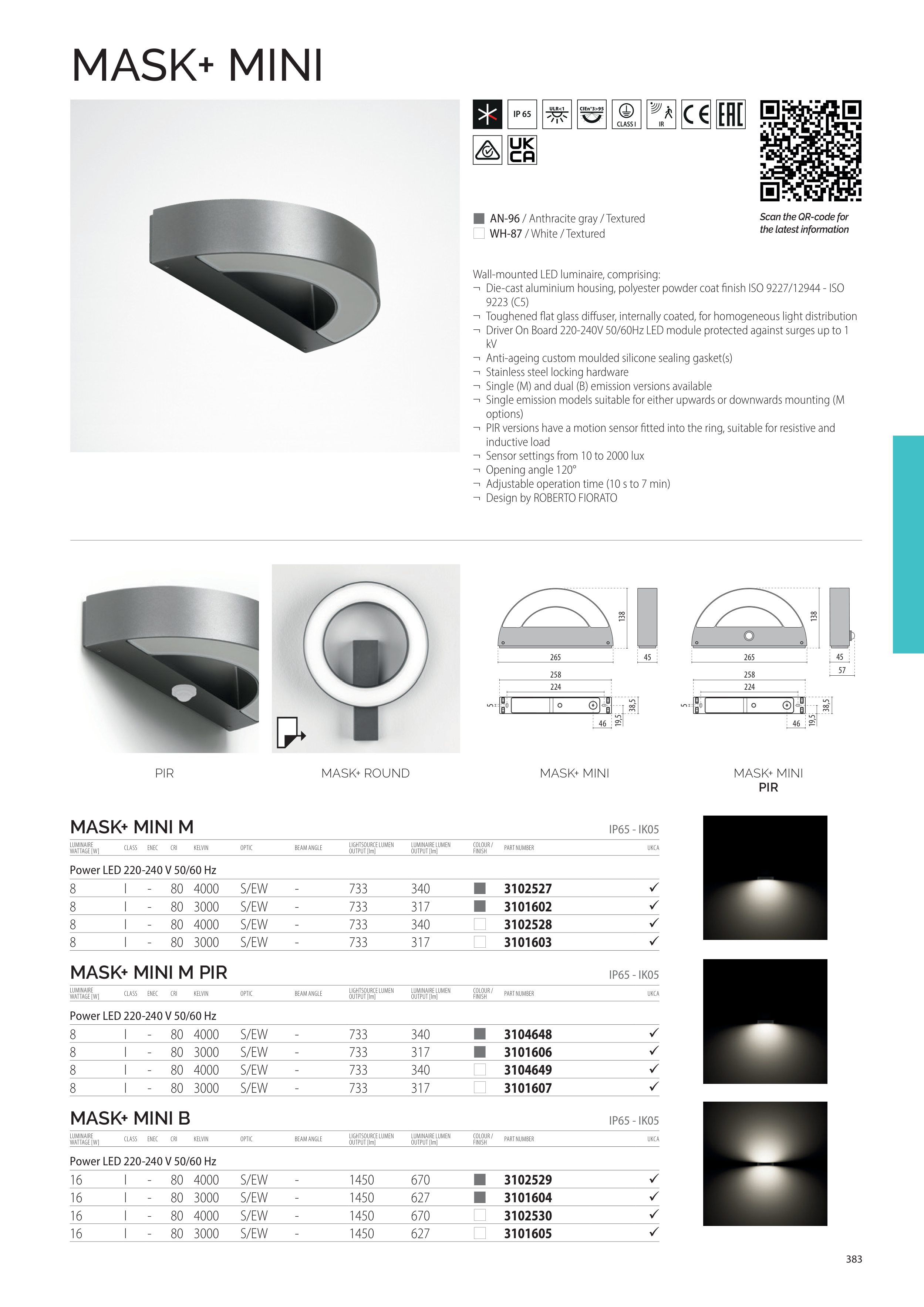

MASK+ MINI
45
138
57
265
224
5
38,5
19,5
46
258
265
45
224
5
38,5
19,5
138
46
258
MASK+ MINI
PIR
MASK+ MINI
MASK+ ROUND
PIR
- eliminato un a capo tra declinazioni
- portato interlinea a 7 pt
- scollegate didascalie CAD da xml
Wall-mounted LED luminaire, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Toughened flat glass diffuser, internally coated, for homogeneous light distribution
¬ Driver On Board 220-240V 50/60Hz LED module protected against surges up to 1
kV
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Stainless steel locking hardware
¬ Single (M) and dual (B) emission versions available
¬ Single emission models suitable for either upwards or downwards mounting (M
options)
¬ PIR versions have a motion sensor fitted into the ring, suitable for resistive and
inductive load
¬ Sensor settings from 10 to 2000 lux
¬ Opening angle 120°
¬ Adjustable operation time (10 s to 7 min)
¬ Design by ROBERTO FIORATO
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
Scan the QR-code for
the latest information
MASK+ MINI M
IP65 - IK05
LUMINAIRE
WATTAGE [W]
CLASS
ENEC
CRI
KELVIN
OPTIC
BEAM ANGLE
LIGHTSOURCE LUMEN
OUTPUT [lm]
LUMINAIRE LUMEN
OUTPUT [lm]
COLOUR /
FINISH
PART NUMBER
UKCA
Power LED 220-240 V 50/60 Hz
8
I
-
80 4000
S/EW
-
733
340
L
3102527
ü
8
I
-
80 3000
S/EW
-
733
317
L
3101602
ü
8
I
-
80 4000
S/EW
-
733
340
T
3102528
ü
8
I
-
80 3000
S/EW
-
733
317
T
3101603
ü
MASK+ MINI M PIR
IP65 - IK05
LUMINAIRE
WATTAGE [W]
CLASS
ENEC
CRI
KELVIN
OPTIC
BEAM ANGLE
LIGHTSOURCE LUMEN
OUTPUT [lm]
LUMINAIRE LUMEN
OUTPUT [lm]
COLOUR /
FINISH
PART NUMBER
UKCA
Power LED 220-240 V 50/60 Hz
8
I
-
80 4000
S/EW
-
733
340
L
3104648
ü
8
I
-
80 3000
S/EW
-
733
317
L
3101606
ü
8
I
-
80 4000
S/EW
-
733
340
T
3104649
ü
8
I
-
80 3000
S/EW
-
733
317
T
3101607
ü
MASK+ MINI B
IP65 - IK05
LUMINAIRE
WATTAGE [W]
CLASS
ENEC
CRI
KELVIN
OPTIC
BEAM ANGLE
LIGHTSOURCE LUMEN
OUTPUT [lm]
LUMINAIRE LUMEN
OUTPUT [lm]
COLOUR /
FINISH
PART NUMBER
UKCA
Power LED 220-240 V 50/60 Hz
16
I
-
80 4000
S/EW
-
1450
670
L
3102529
ü
16
I
-
80 3000
S/EW
-
1450
627
L
3101604
ü
16
I
-
80 4000
S/EW
-
1450
670
T
3102530
ü
16
I
-
80 3000
S/EW
-
1450
627
T
3101605
ü
383
