PERFORMANCE iN LIGHTING | powered by GEWISS
SMART [4] 2M
HT HACCP
SMART [4] 2M
ATEX
SMART [4] 2M
UL
SMART [4] 4M
UL
SMART [4] 4M
HT HACCP

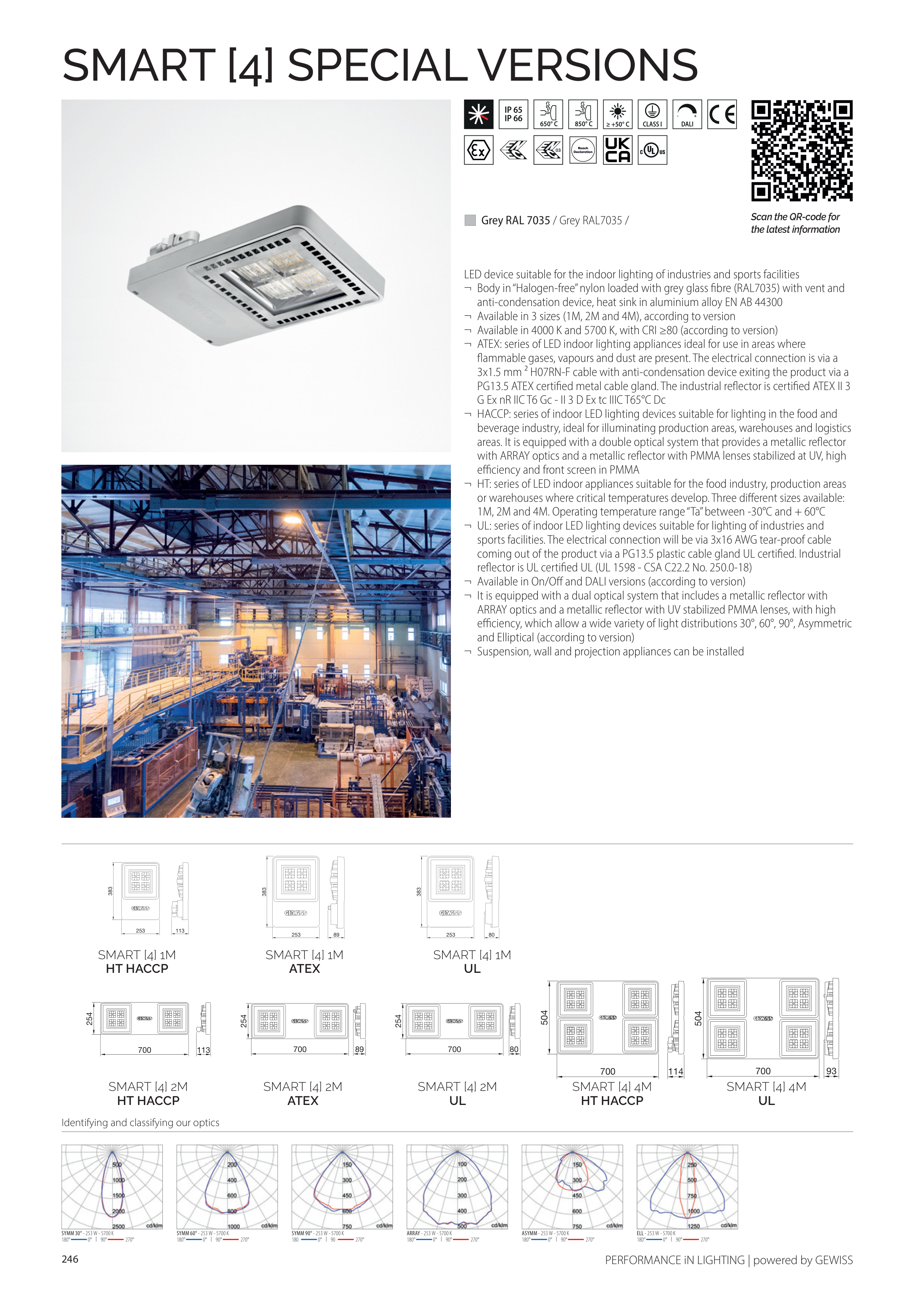

SMART [4] SPECIAL VERSIONS
650° C
850° C ≥ +50° C
03
3100132
SYMM 30° - 253 W - 5700 K
3100132
SYMM 60° - 253 W - 5700 K
SYMM 90° - 253 W - 5700 K
ARRAY - 253 W - 5700 K
ASYMM - 253 W - 5700 K
ELL - 253 W - 5700 K
SMART [4] 1M
UL
SMART [4] 1M
ATEX
SMART [4] 1M
HT HACCP
113
700
254
89
254
700
80
254
700
93
700
504
114
504
700
80
253
383
89
383
253
113
383
253
LED device suitable for the indoor lighting of industries and sports facilities
¬ Body in “Halogen-free” nylon loaded with grey glass fibre (RAL7035) with vent and
anti-condensation device, heat sink in aluminium alloy EN AB 44300
¬ Available in 3 sizes (1M, 2M and 4M), according to version
¬ Available in 4000 K and 5700 K, with CRI ≥80 (according to version)
¬ ATEX: series of LED indoor lighting appliances ideal for use in areas where
flammable gases, vapours and dust are present. The electrical connection is via a
3x1.5 mm ² H07RN-F cable with anti-condensation device exiting the product via a
PG13.5 ATEX certified metal cable gland. The industrial reflector is certified ATEX II 3
G Ex nR IIC T6 Gc - II 3 D Ex tc IIIC T65°C Dc
¬ HACCP: series of indoor LED lighting devices suitable for lighting in the food and
beverage industry, ideal for illuminating production areas, warehouses and logistics
areas. It is equipped with a double optical system that provides a metallic reflector
with ARRAY optics and a metallic reflector with PMMA lenses stabilized at UV, high
efficiency and front screen in PMMA
¬ HT: series of LED indoor appliances suitable for the food industry, production areas
or warehouses where critical temperatures develop. Three different sizes available:
1M, 2M and 4M. Operating temperature range “Ta” between -30°C and + 60°C
¬ UL: series of indoor LED lighting devices suitable for lighting of industries and
sports facilities. The electrical connection will be via 3x16 AWG tear-proof cable
coming out of the product via a PG13.5 plastic cable gland UL certified. Industrial
reflector is UL certified UL (UL 1598 - CSA C22.2 No. 250.0-18)
¬ Available in On/Off and DALI versions (according to version)
¬ It is equipped with a dual optical system that includes a metallic reflector with
ARRAY optics and a metallic reflector with UV stabilized PMMA lenses, with high
efficiency, which allow a wide variety of light distributions 30°, 60°, 90°, Asymmetric
and Elliptical (according to version)
¬ Suspension, wall and projection appliances can be installed
J Grey RAL 7035 / Grey RAL7035 /
Scan the QR-code for
the latest information
Identifying and classifying our optics
246
